Angle Valves Ensure Effective Flow Control in Compact Spaces

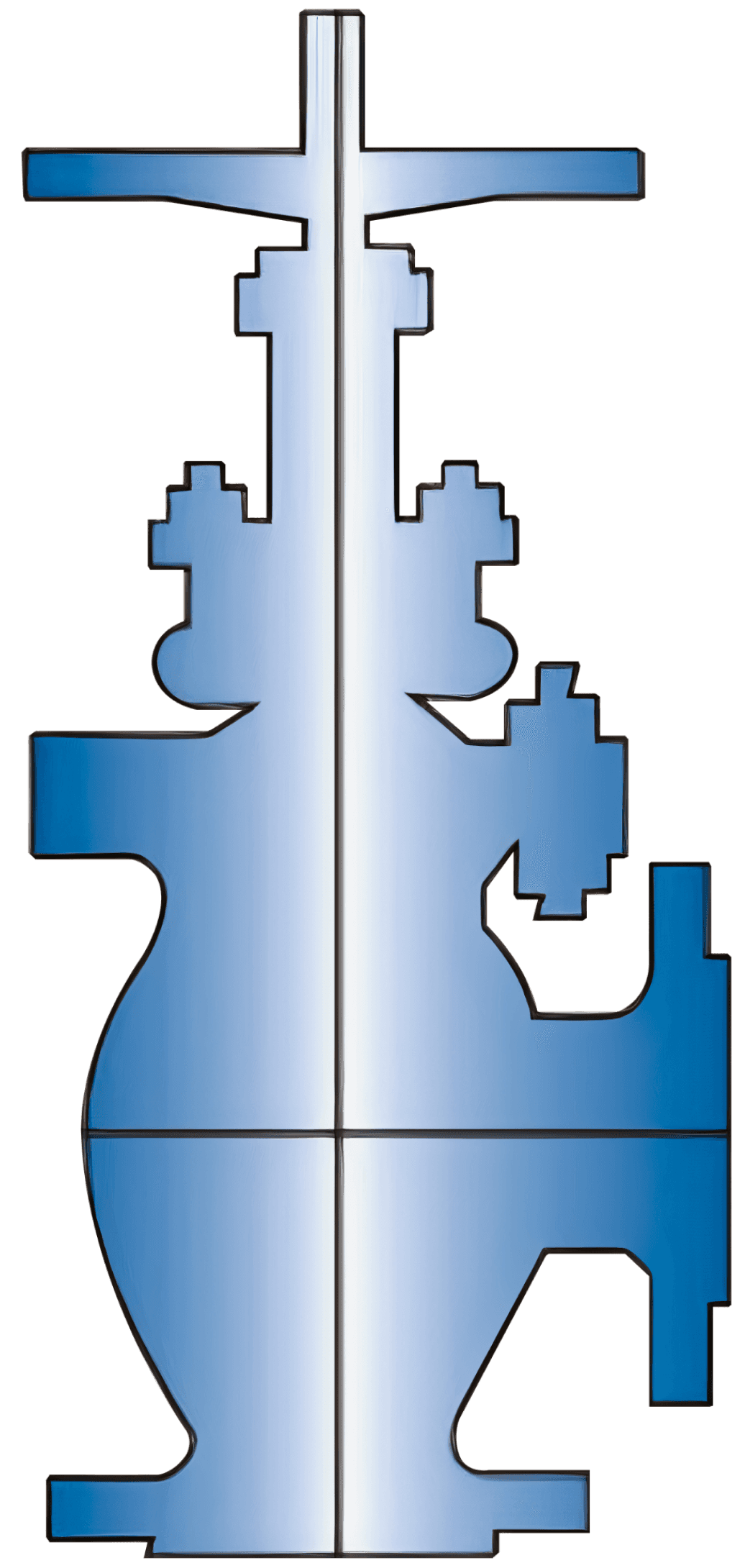

Angle Valve

Our Angle Valves feature optimized angular design for efficient flow direction changes

and reliable sealing performance even under demanding conditions.

Ideal for industries that require precise flow control, compact installations,

and robust, leak-free operation.

Production Range

NPS1-1/2" – 20", CLASS 150 – 1500

Standard & Specification

API 600 | Face-to-Face: ASME B16.10
Testing : API 598

End Connection

Flange (ASME/ANSI B16.5), Thread, Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Thread,
Weld (ASME/ANSI B16.25)

| Main Materials

Body, Bonnet

CS: A216-WCB, A352-LCB, A217-WC6
AS: A217-WC9, C5, C12
SS: A351-CF8M

Disc

CS: A217CA15 / WCB+410 | A351 CF8M / LCB+316
AS: A217CA15 / WC9, C5, C12+410
SS: A351-CF8M

Stem

CS: A479-410, 316
AS: A479-410
SS: A479-316

Seat

CS: CS1020+410, A182-F304, A182 F11+STL
AS: A182 F5a+STL, F9+STL
SS: A479-316

| Key Features

Cast Steel, Outside Screw and Yoke

Bolted bonnet, Rising Stem, Swivel Plug Disc

Available in welded of thread seat rings
