Valve

Ball Valves with Superior Sealing Reliability and Robust Safety

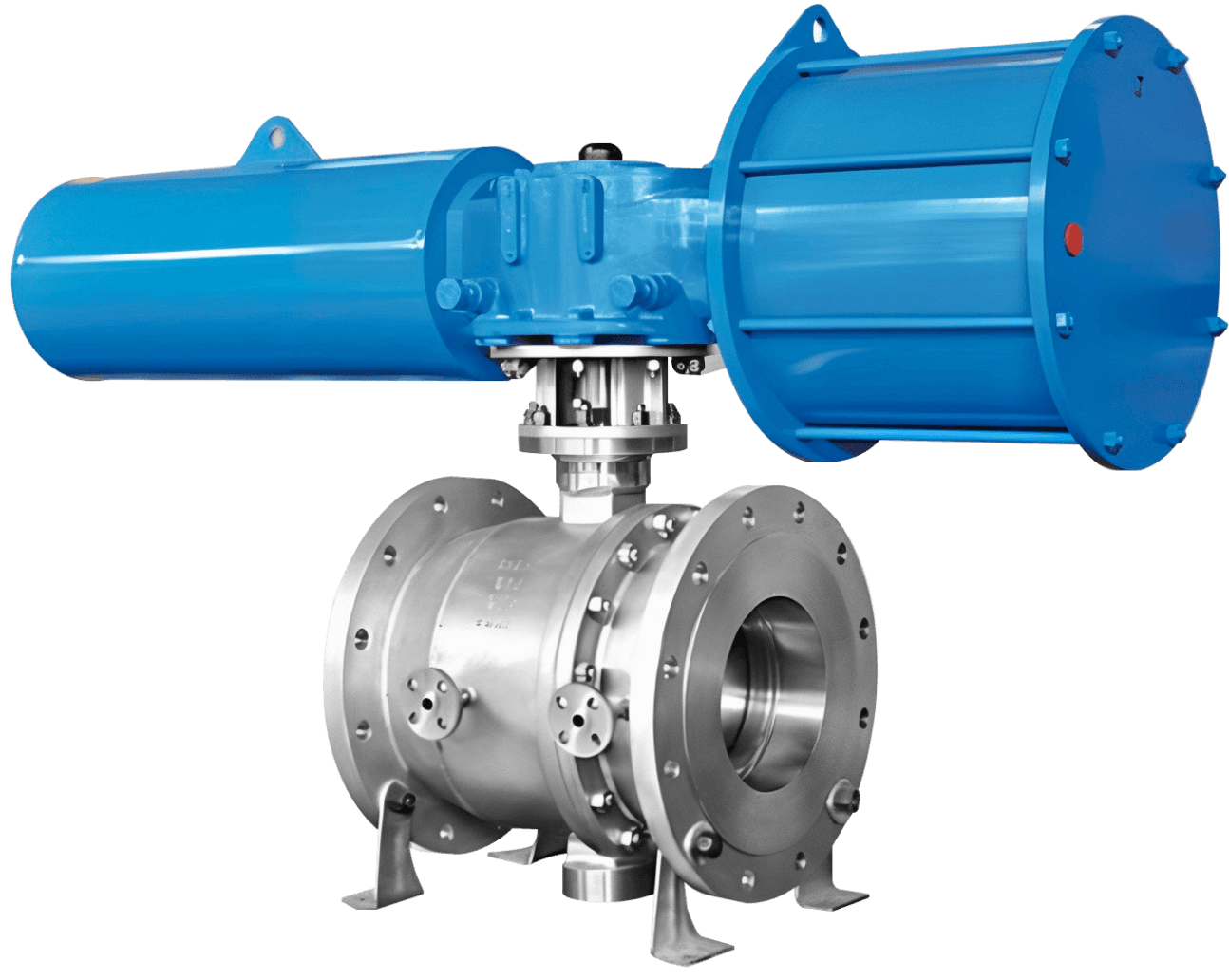

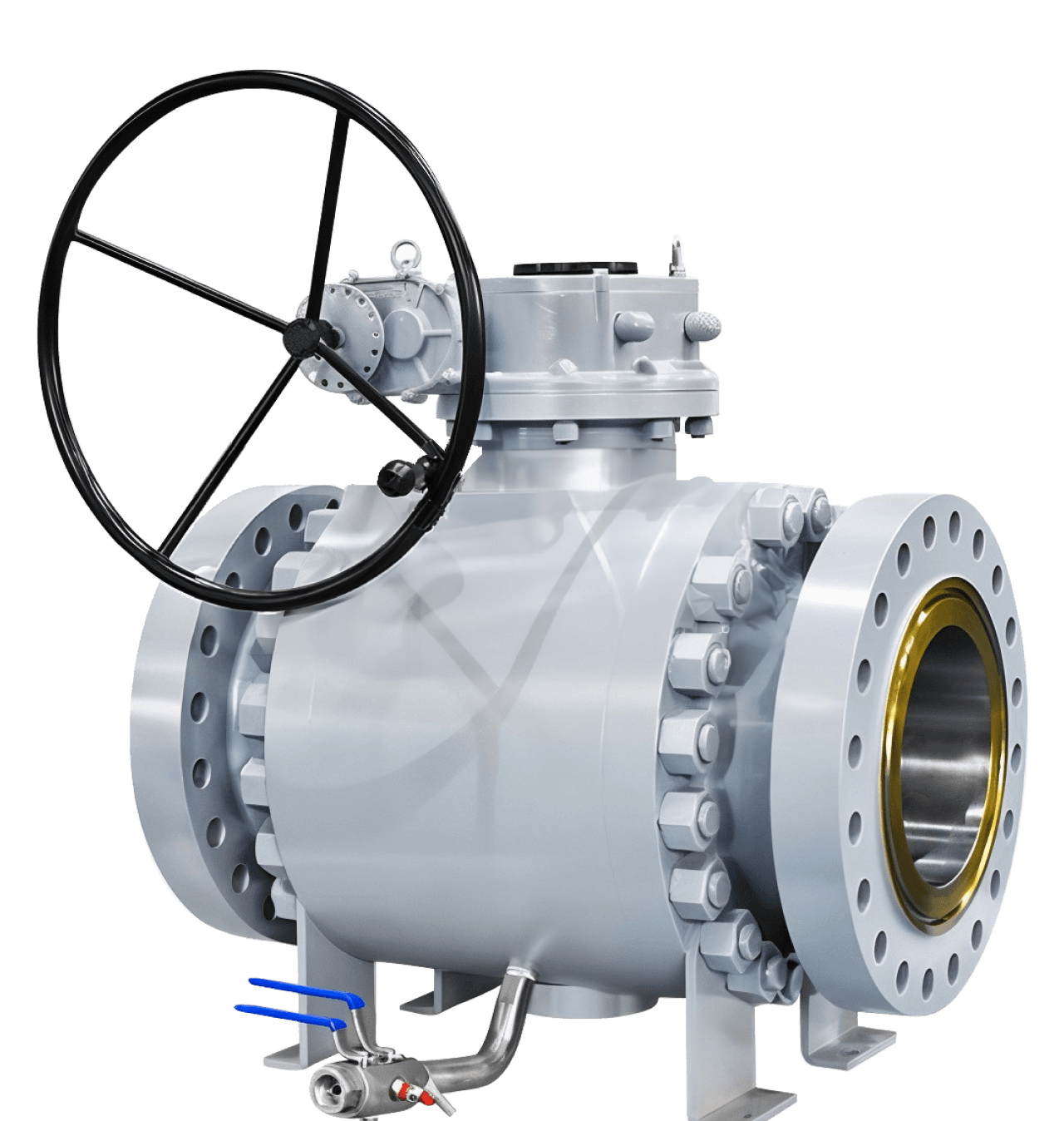

Trunnion Mounted Ball Valve

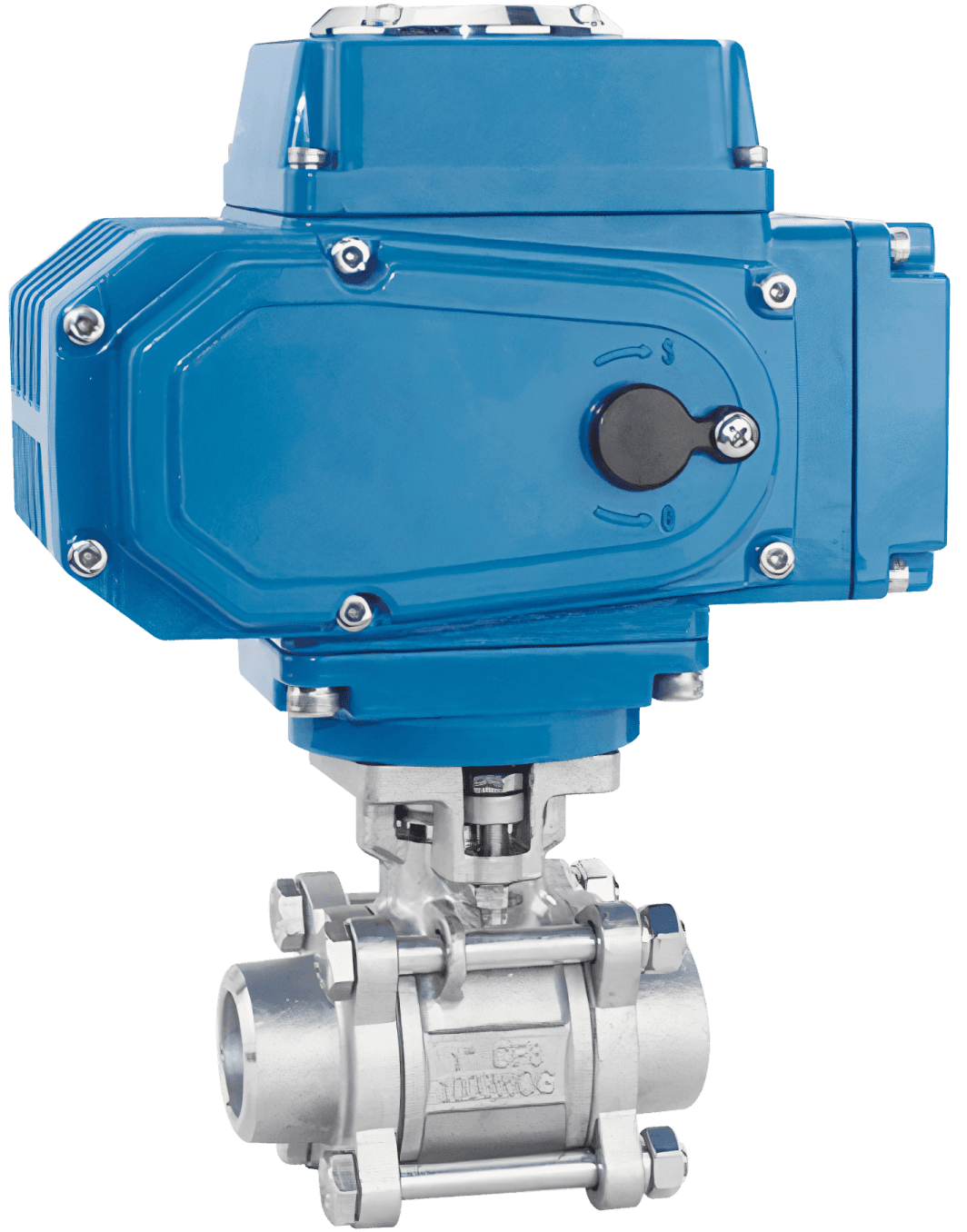

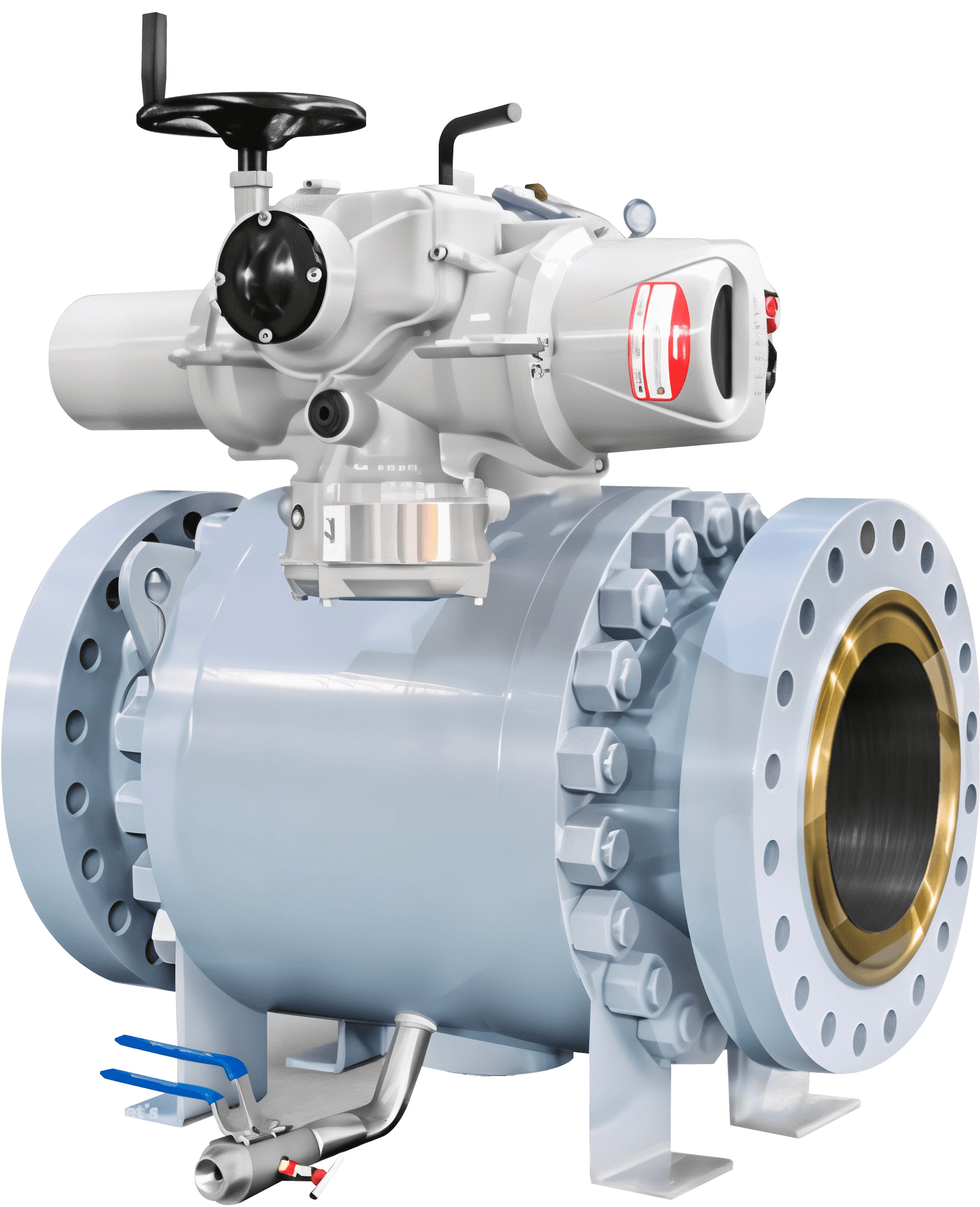

With Electric

With Electric

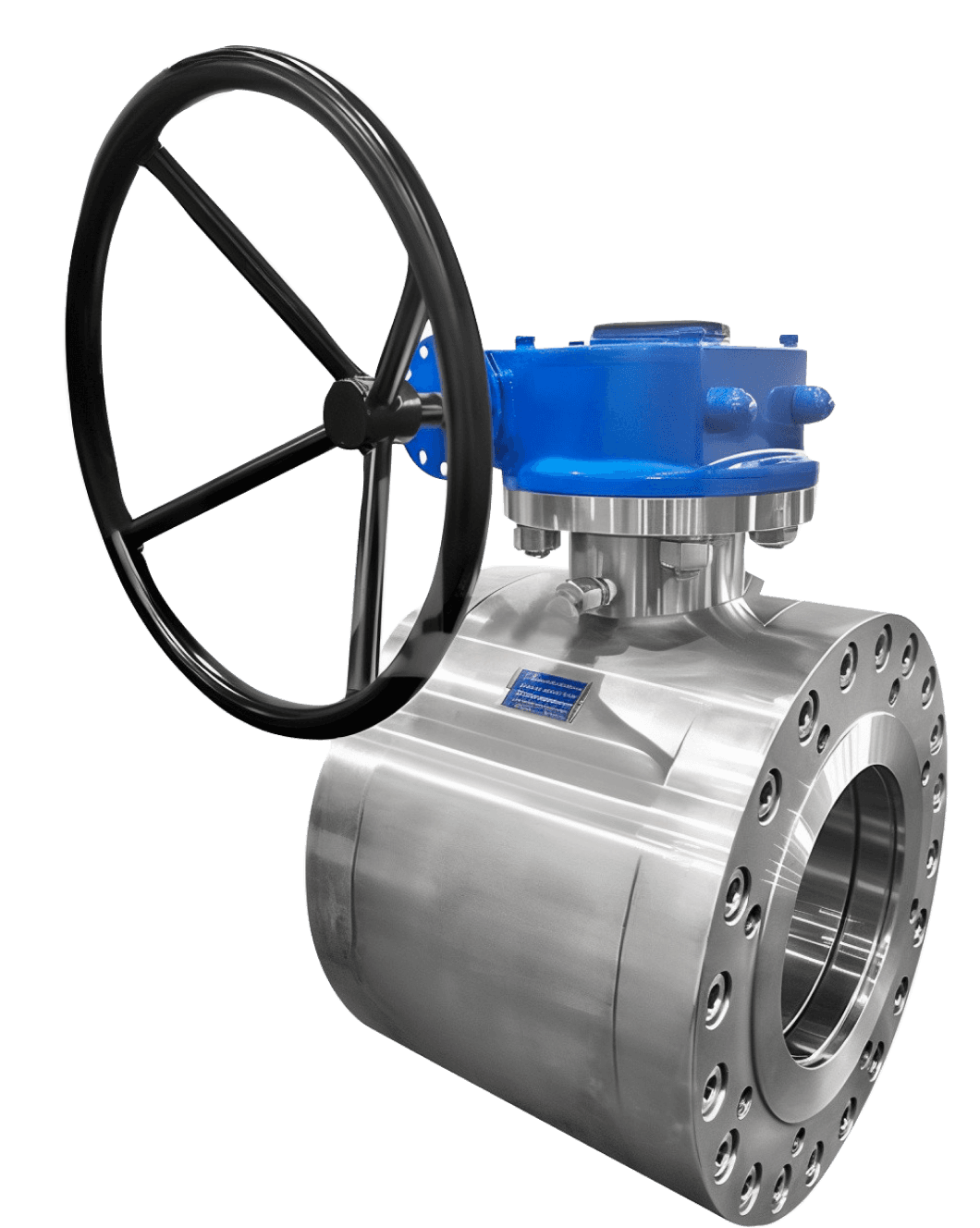

High Pressure

High Pressure

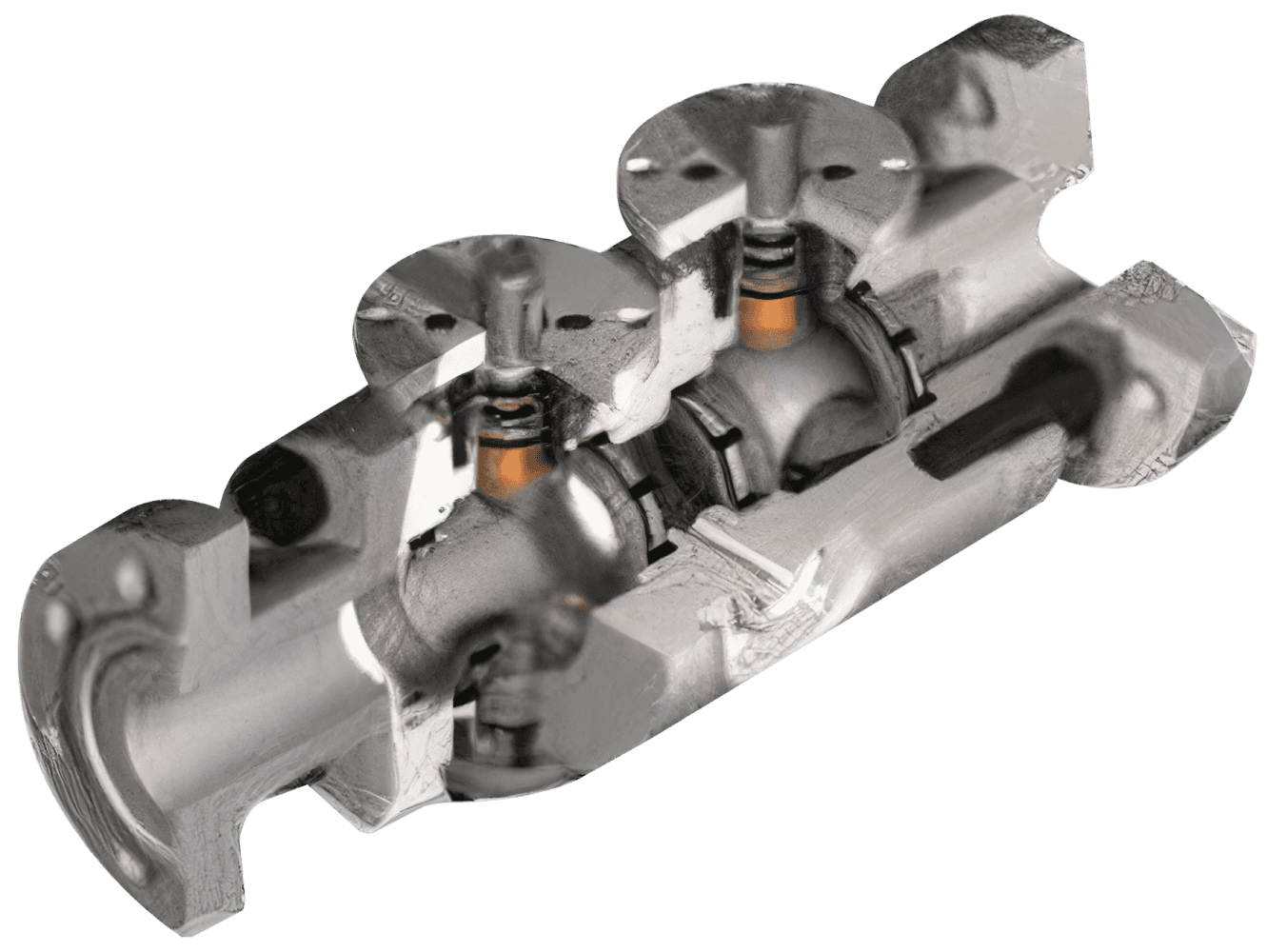

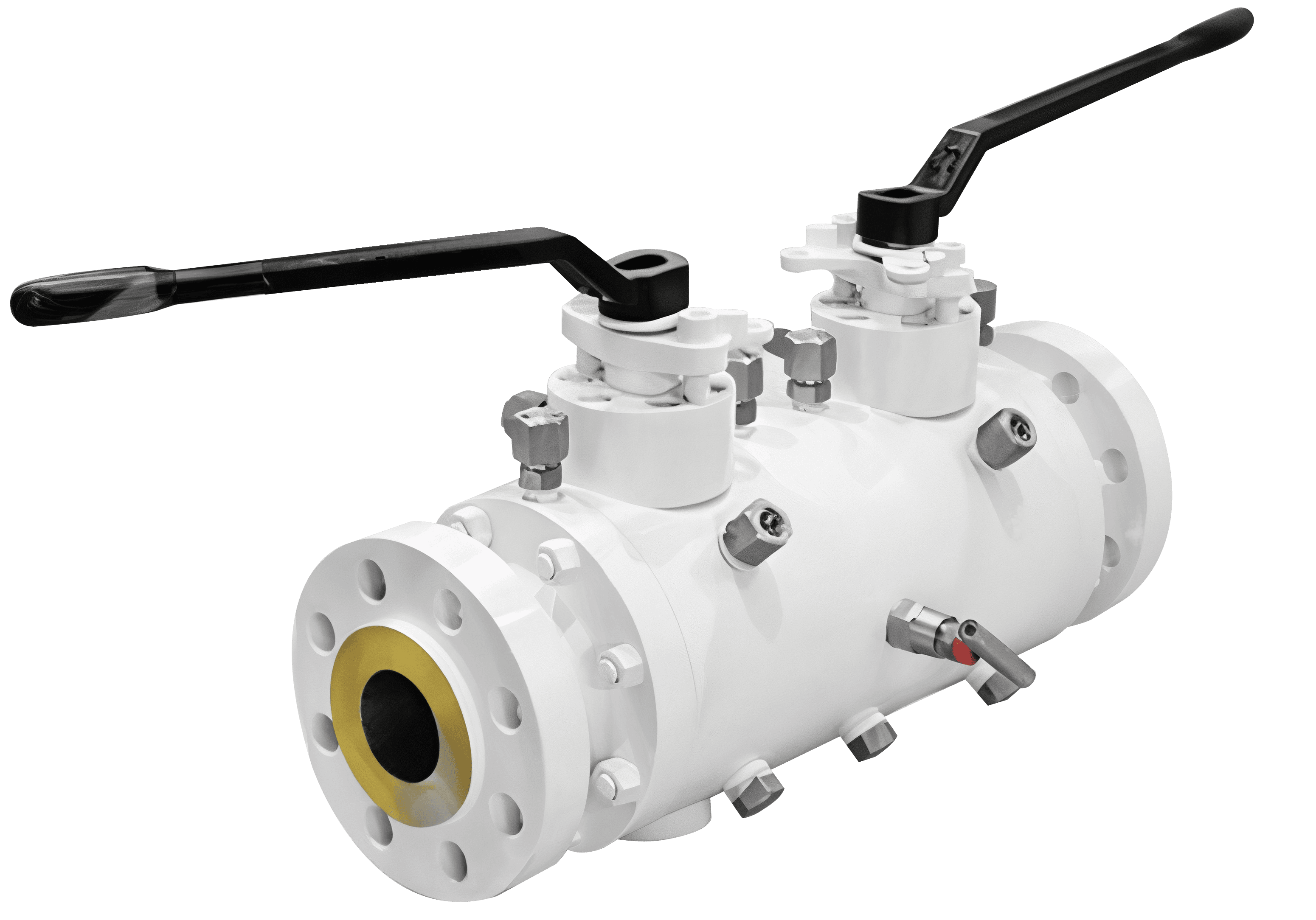

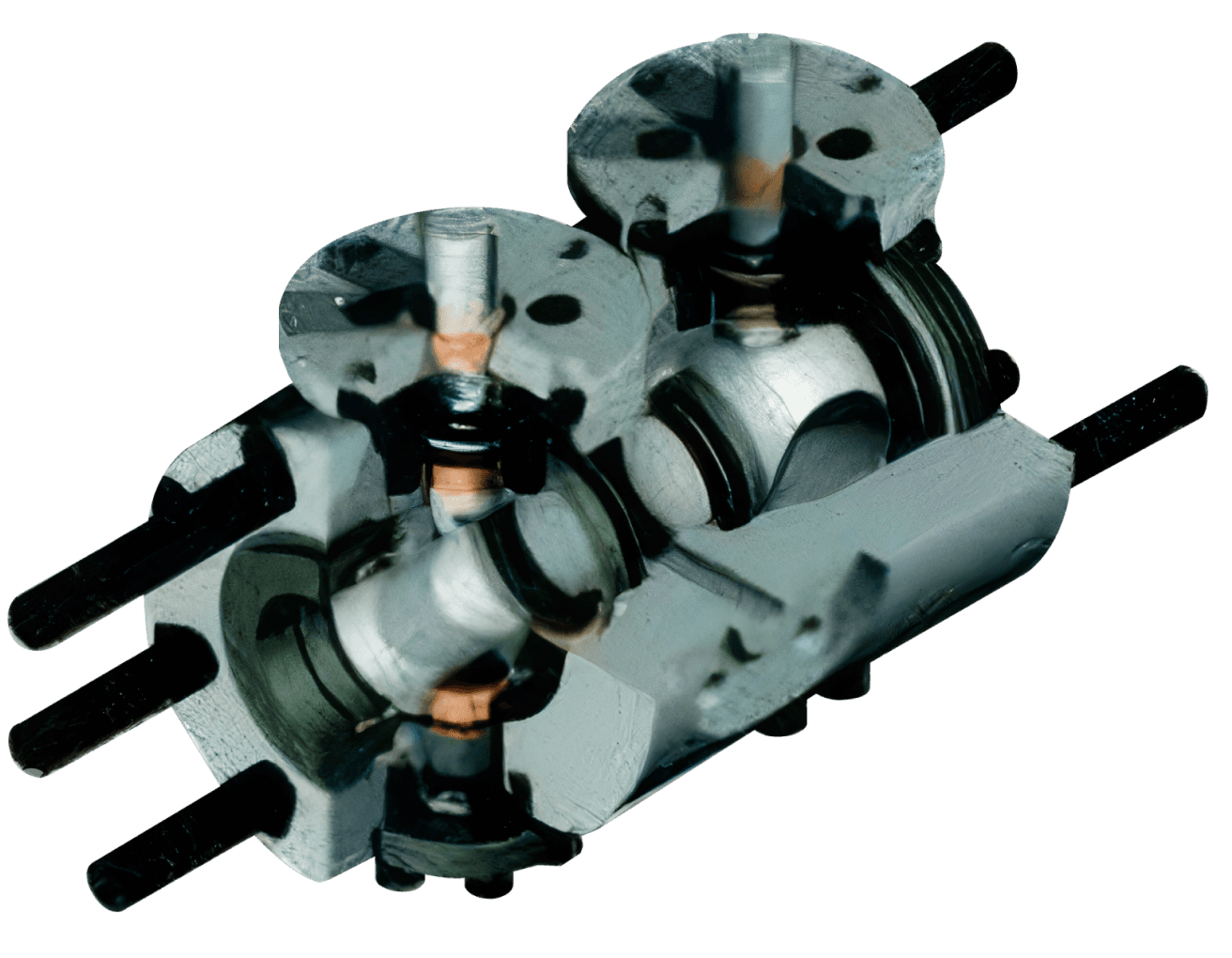

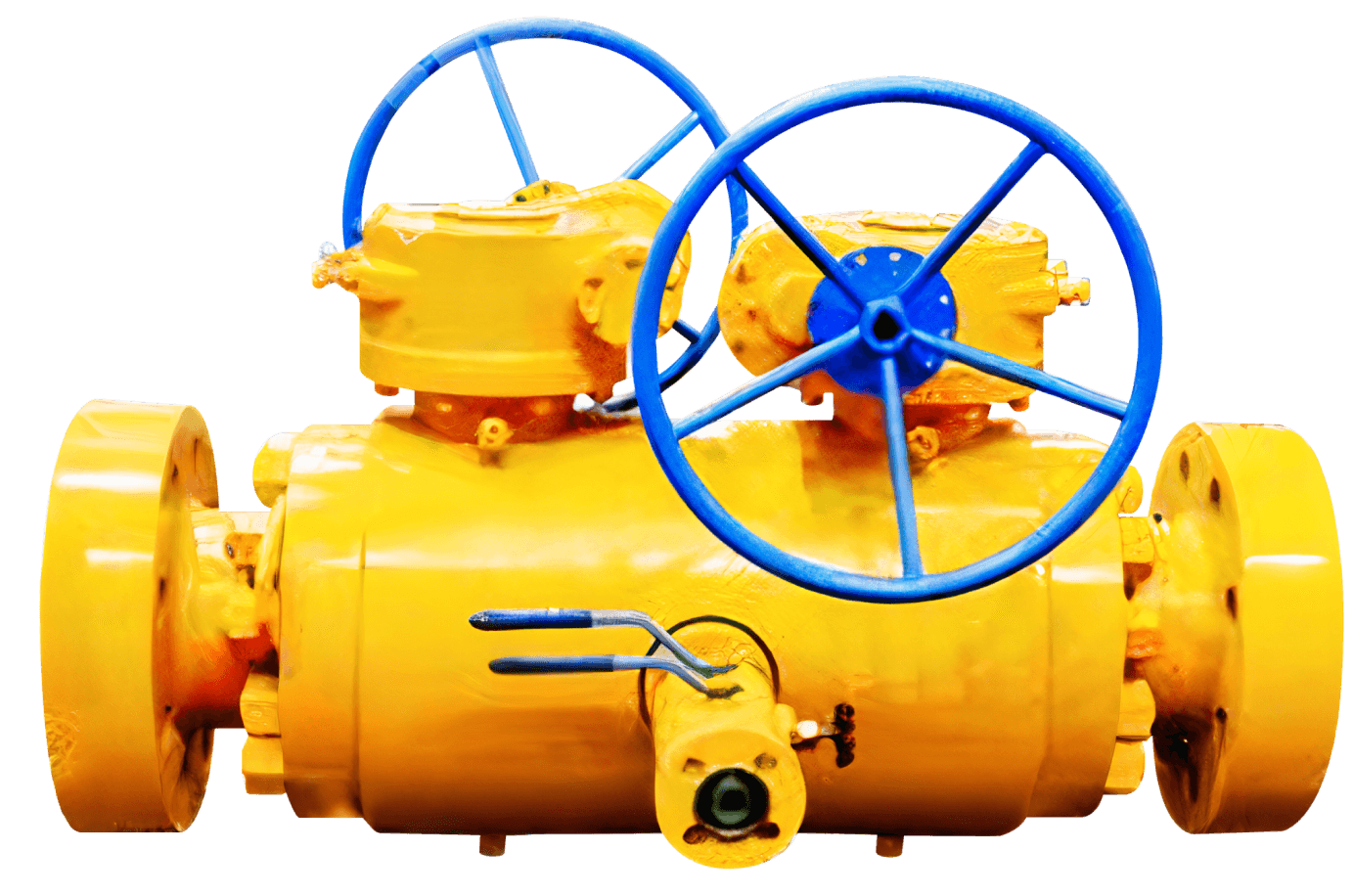

DBB

DBB

High Temp.

High Temp.

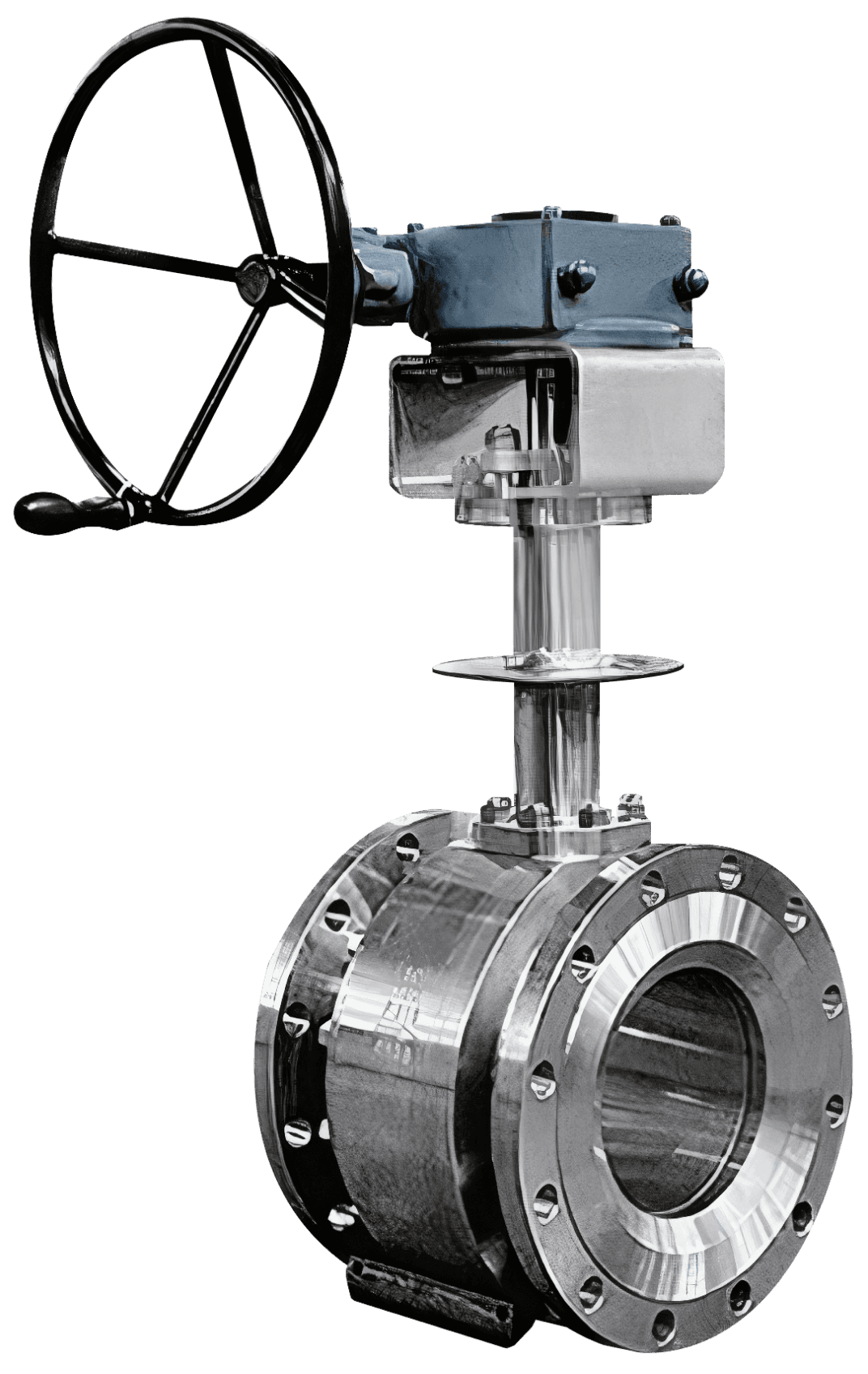

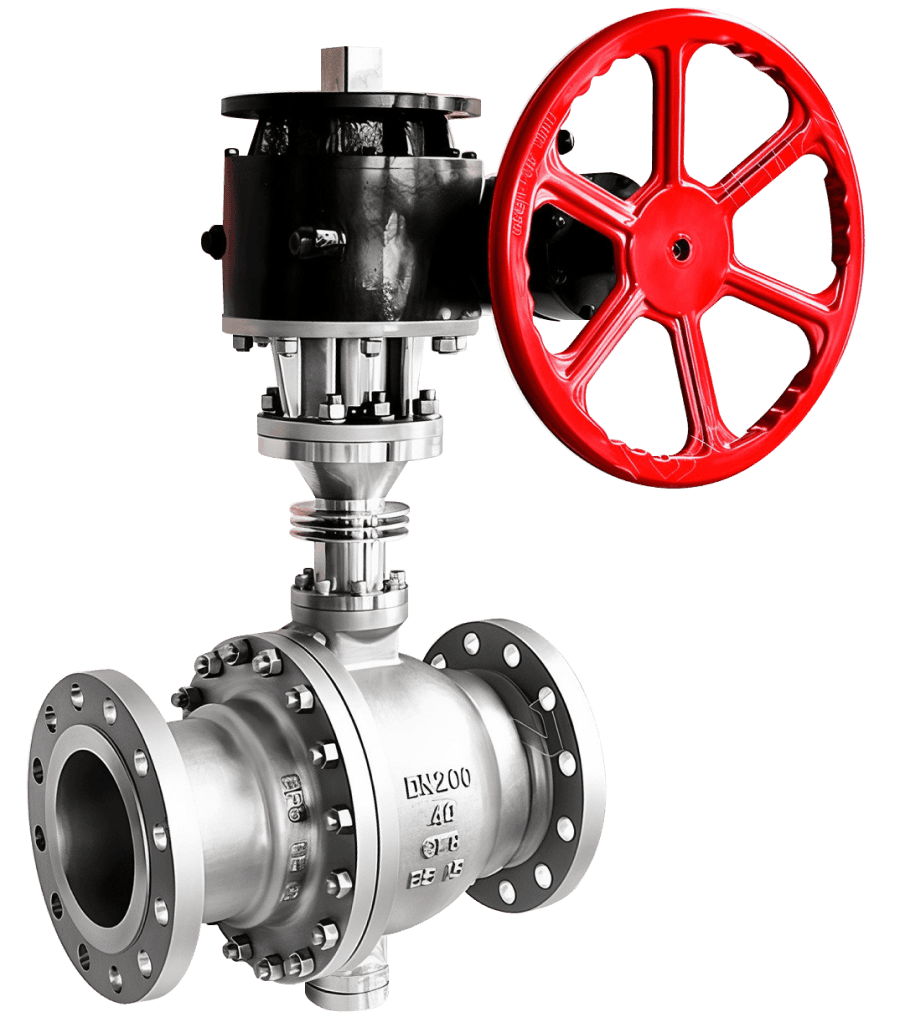

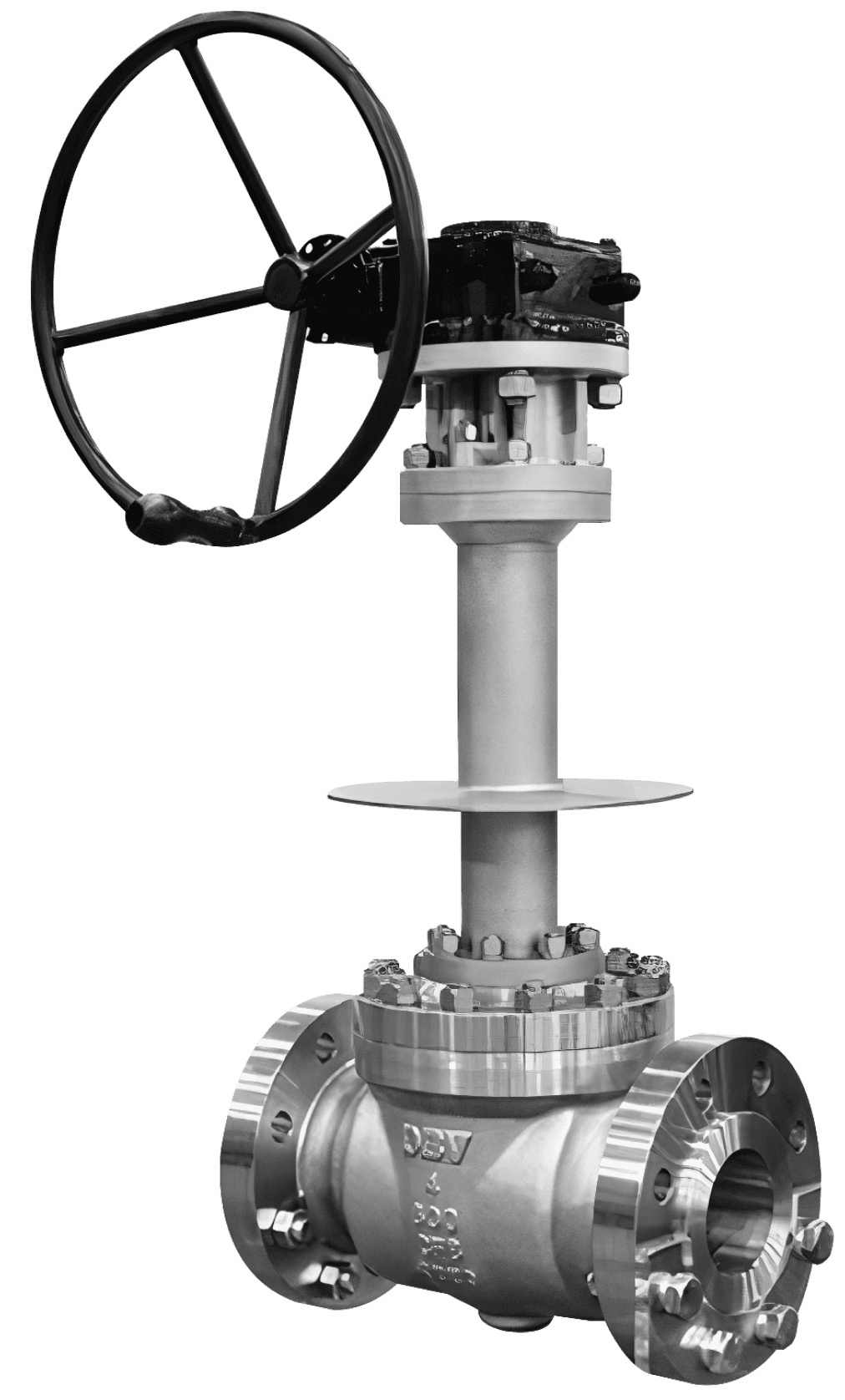

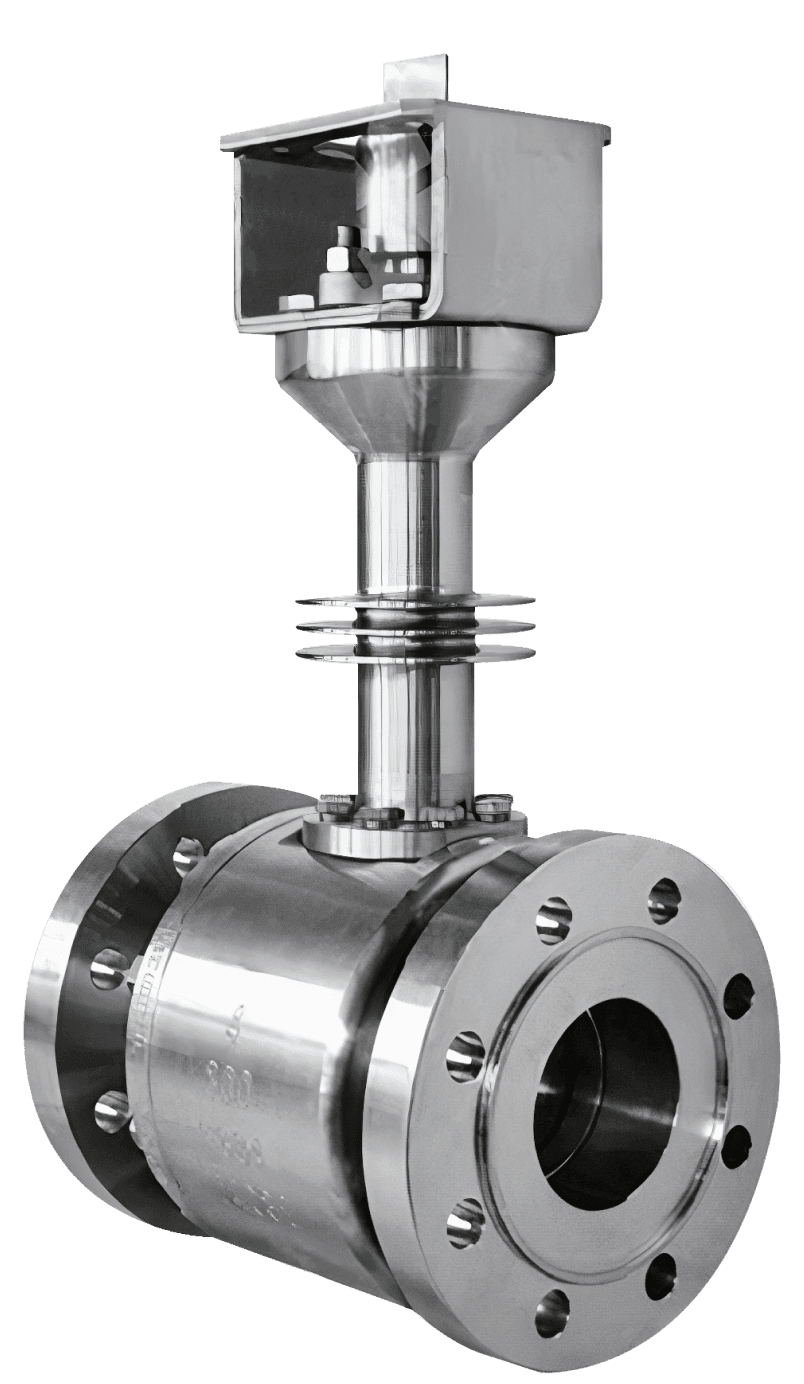

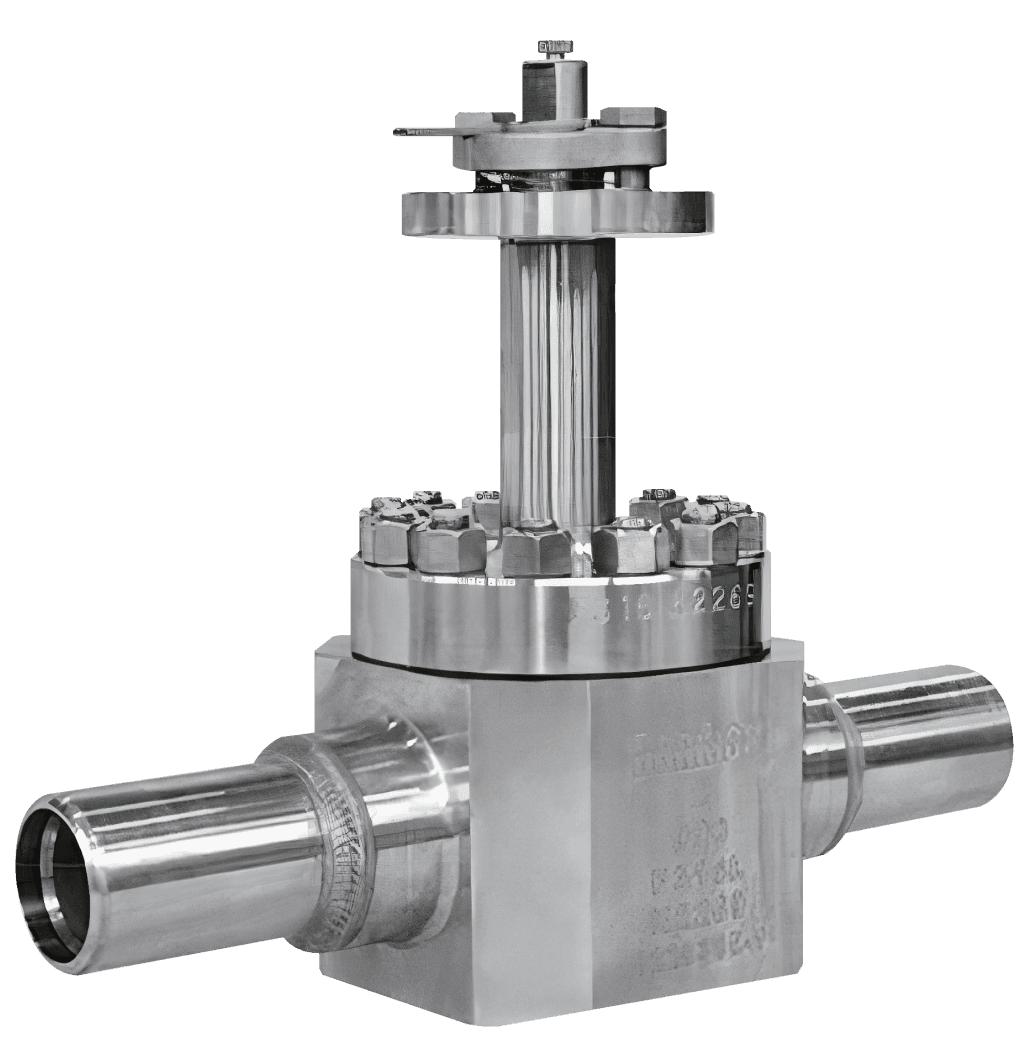

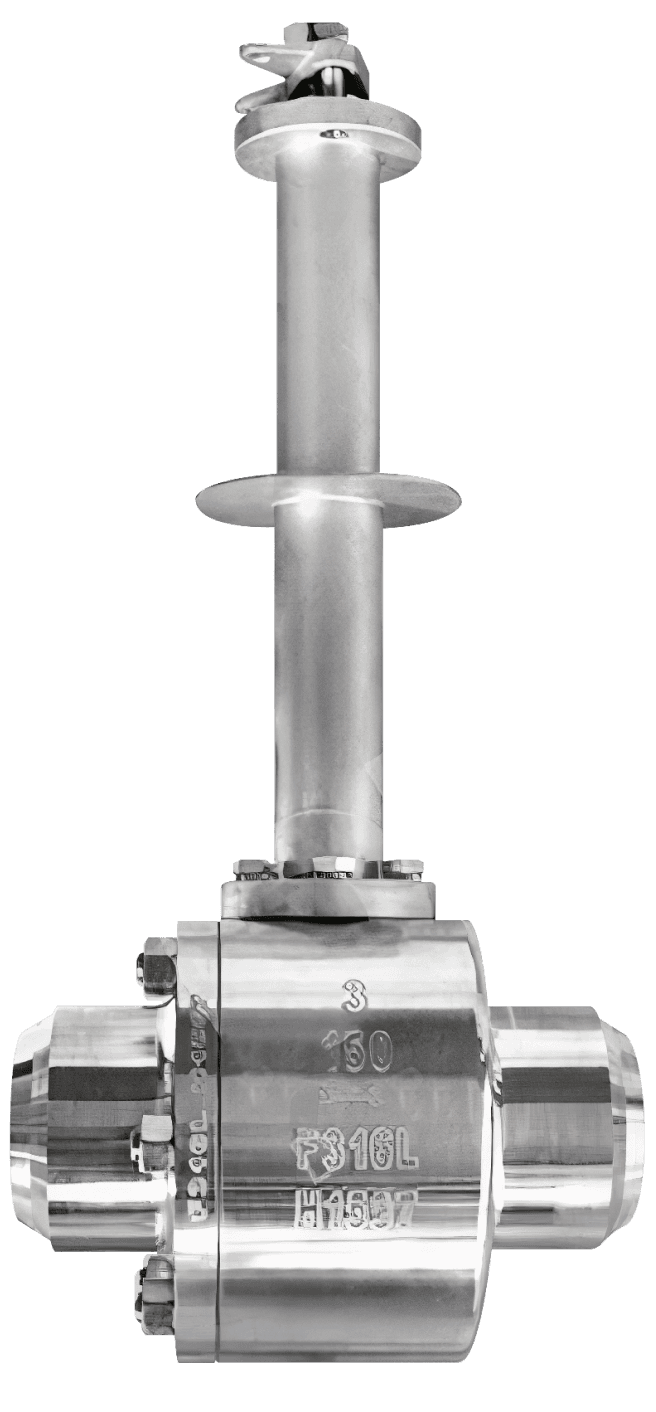

Extended Stem

Extended Stem

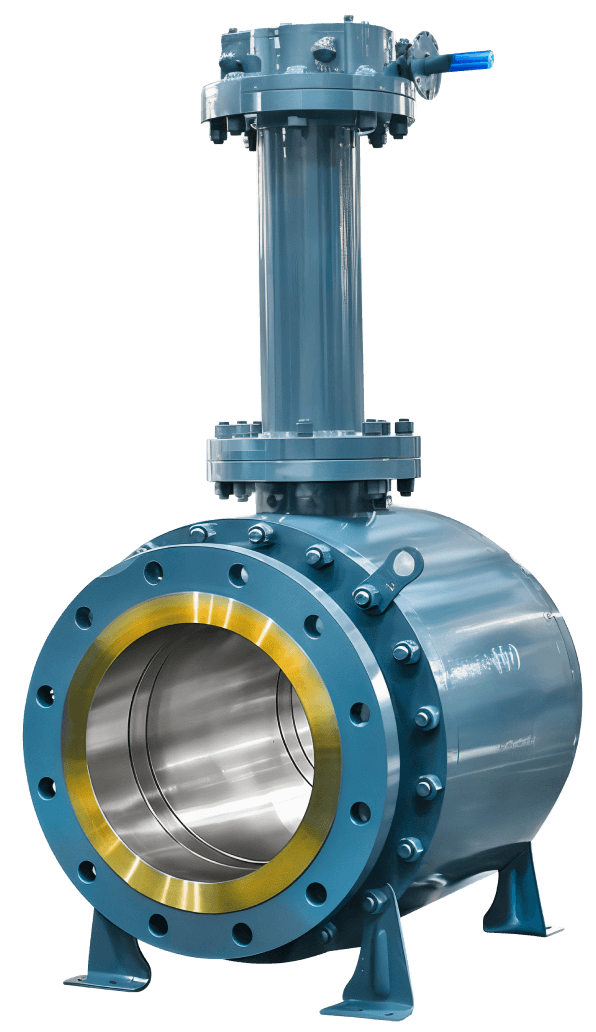

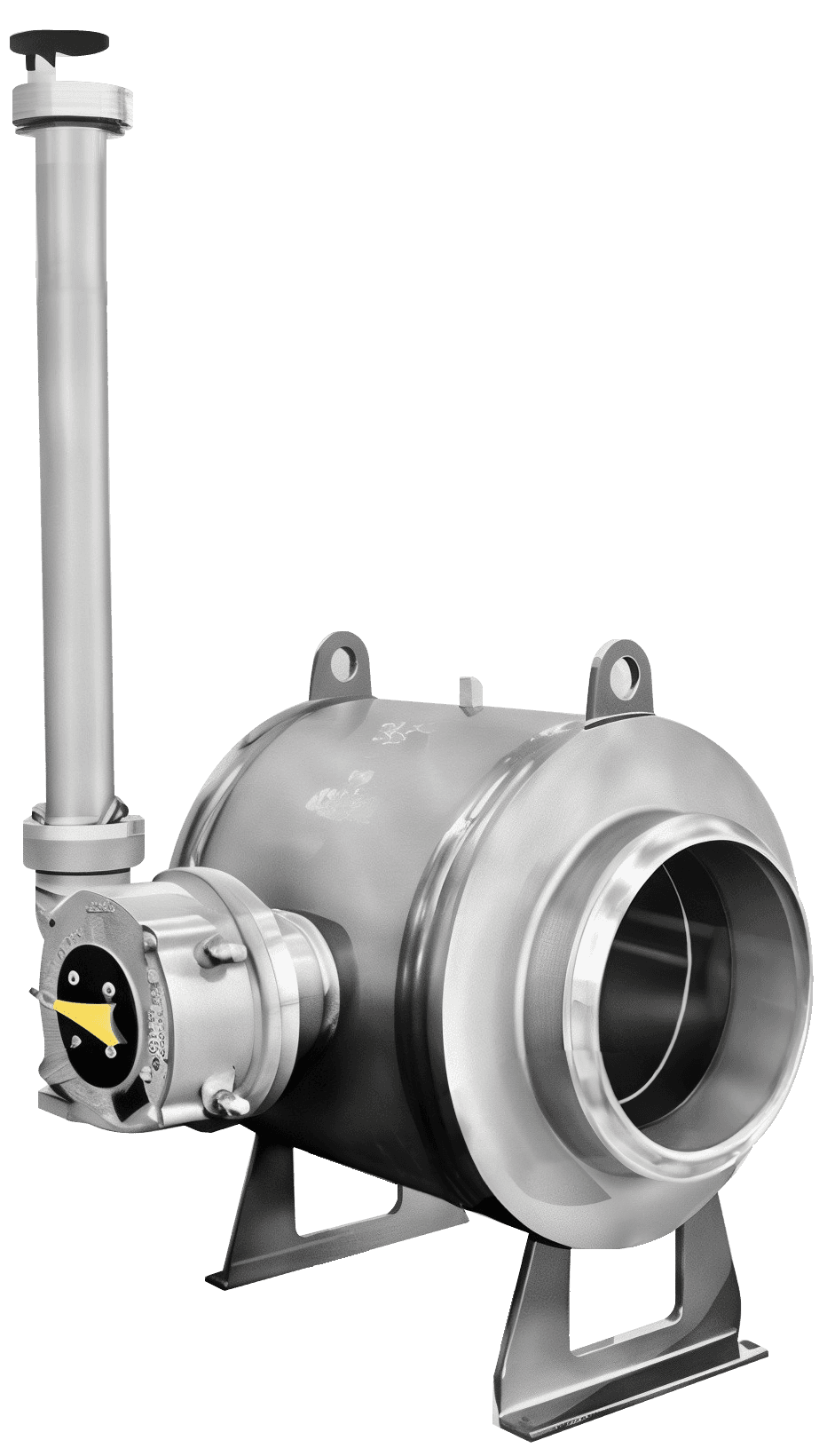

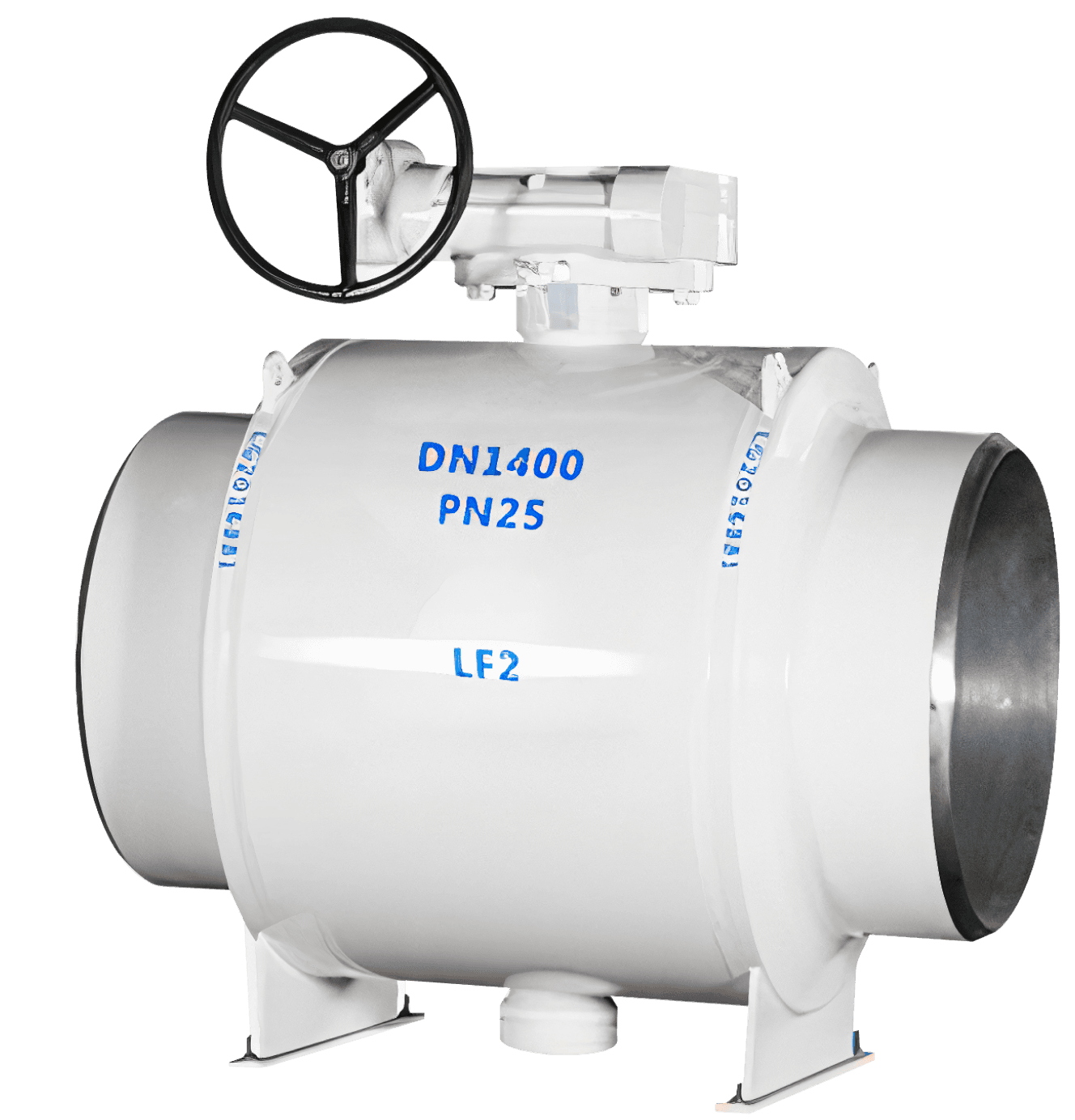

Full Weld Underground W/Extended Gear Box

Full Weld Underground W/Extended Gear Box

Jacket

Jacket

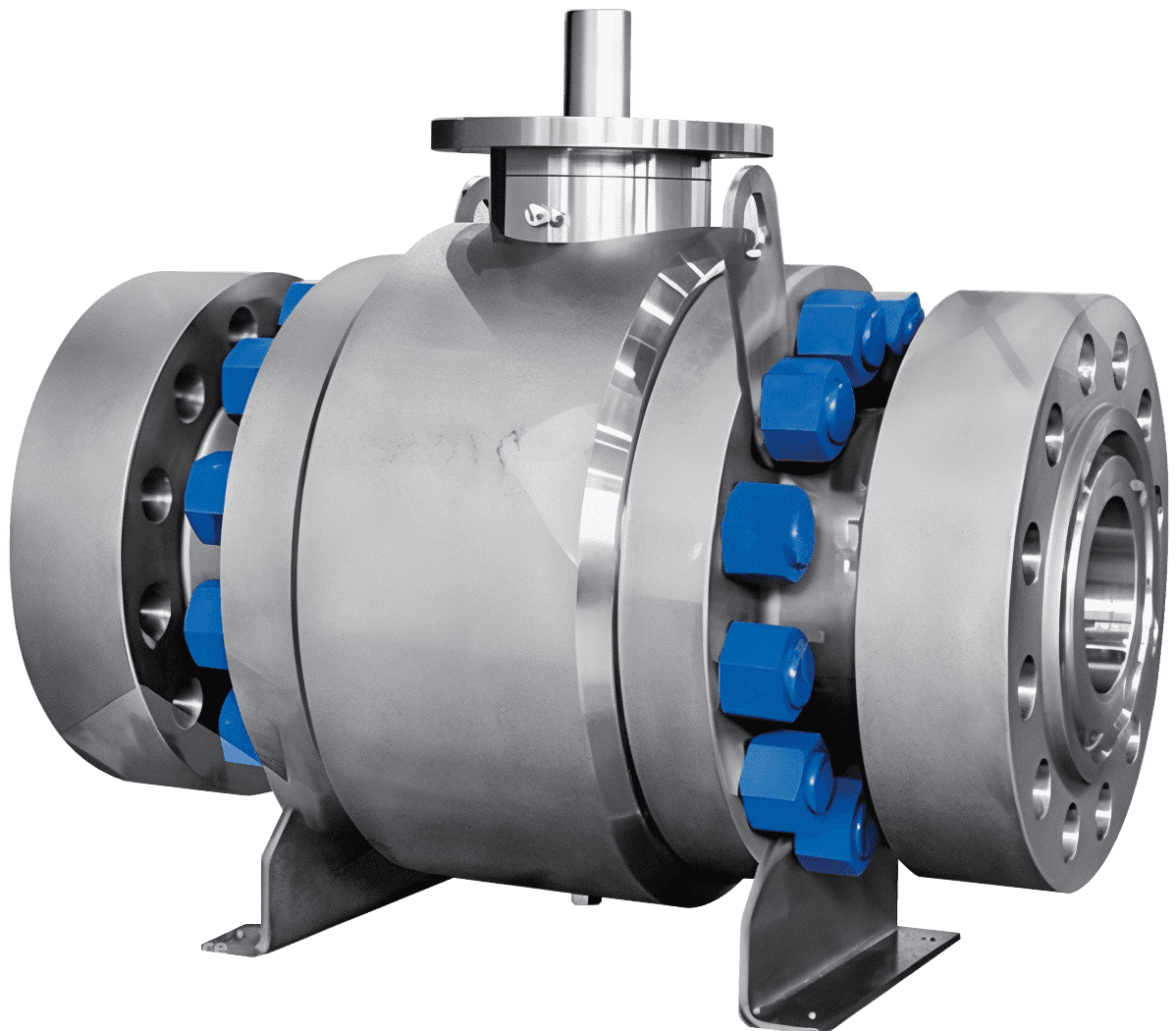

Forged Steel Trunnion Mounted

Standard & Specification

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34 | Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D
Testing: JB/T 9092, GB/T 19672, API 598 & 6D, ASME B16.34

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D

Testing: JB/T 9092, GB/T 19672, API 598 & 6D, ASME B16.34

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D

Testing: JB/T 9092, GB/T 19672, API 598 & 6D, ASME B16.34

End Connection

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44),
Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44), Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44), Butt-Weld (GB/T 12224, ASME B16.25)

Operating Mode

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Materials

CS, SS, Low-Temp. Steel, Sulfur-Resist. Steel

| Main Materials

Body

CS: A105 | Low Temp. Steel: A350-LF2 | SS: A182-F304

Stem

A105+ENP | A350-LF2+ENP | A182-F316

Seat

Standard: PTFE/NYLON
Special: PEEK/DEVLON

Cast Steel Trunnion Mounted

Standard & Specification

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34 | Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D
Testing: JJB/T 9092, API 598, API 6D, ASME B16.34

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D

Testing: JJB/T 9092, API 598, API 6D, ASME B16.34

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D

Testing: JJB/T 9092, API 598, API 6D, ASME B16.34

End Connection

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44)
Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44), Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 & B16.47, MSS SP-44), Butt-Weld (GB/T 12224, ASME B16.25)

Operating Mode

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

| Main Materials

Body

CS: A216-WCB | Low Temp. Steel: A352-LCC, A350-LF2) | SS: A351-CF8M

CS: A216-WCB | Low Temp. Steel: A352-LCC, A350-LF2) |
SS: A351-CF8M

CS: A216-WCB | Low Temp. Steel: A352-LCC, A350-LF2)
SS: A351-CF8M

Stem

25# ENP, A105+ENP | A350-LF2+ENP | 0Cr17Ni12Mo2, A182-F316

25# ENP, A105+ENP | A350-LF2+ENP |
0Cr17Ni12Mo2, A182-F316

25# ENP, A105+ENP
A350-LF2+ENP
0Cr17Ni12Mo2, A182-F316

25# ENP, A105+ENP | A350-LF2+ENP
0Cr17Ni12Mo2, A182-F316

Seat

Standard: PTFE/NYLON | Special: PEEK/DEVLON

Standard: PTFE/NYLON
Special: PEEK/DEVLON

Standard: PTFE/NYLON
Special: PEEK/DEVLON

Floating Ball Valve

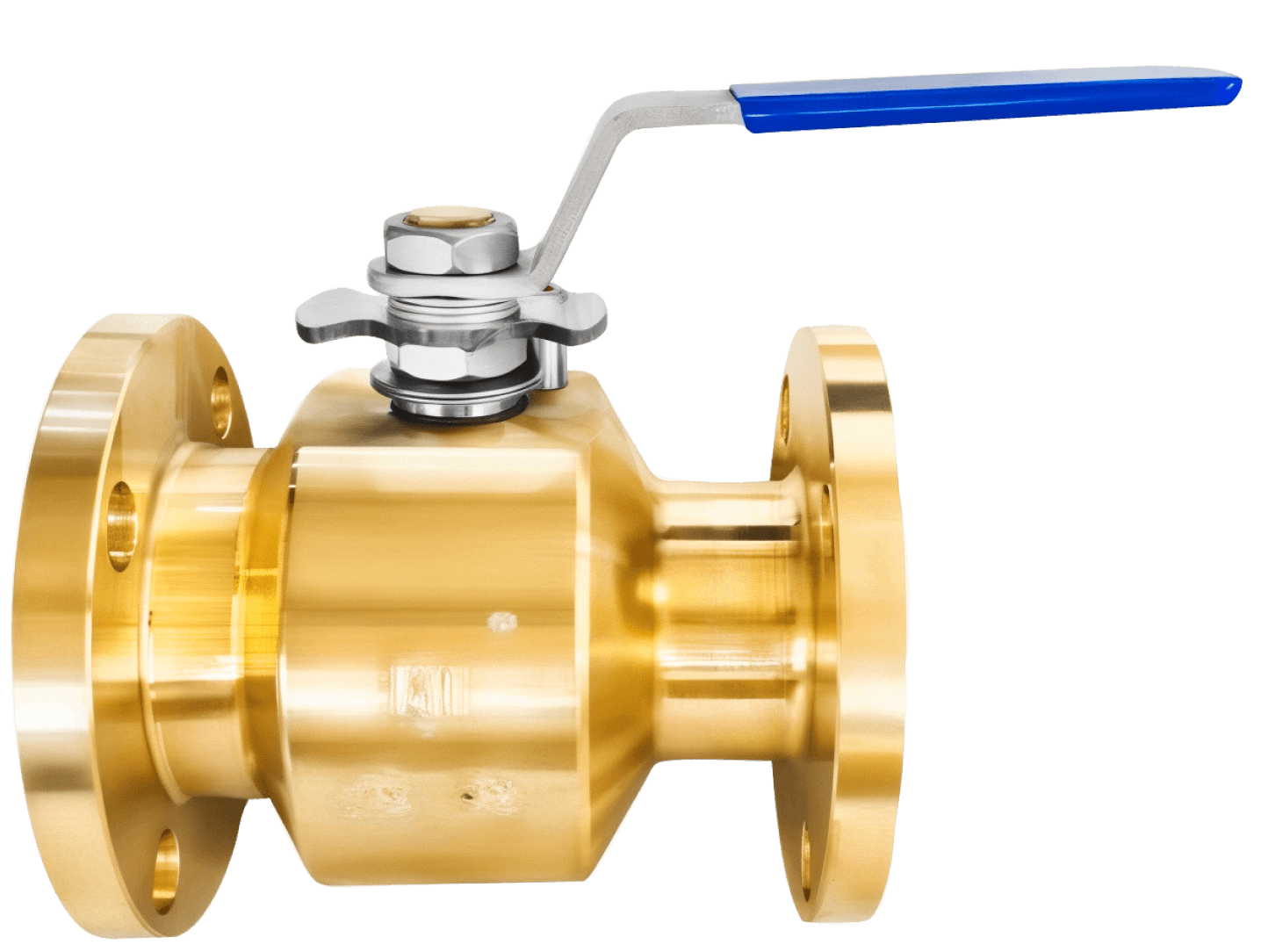

C95800

C95800

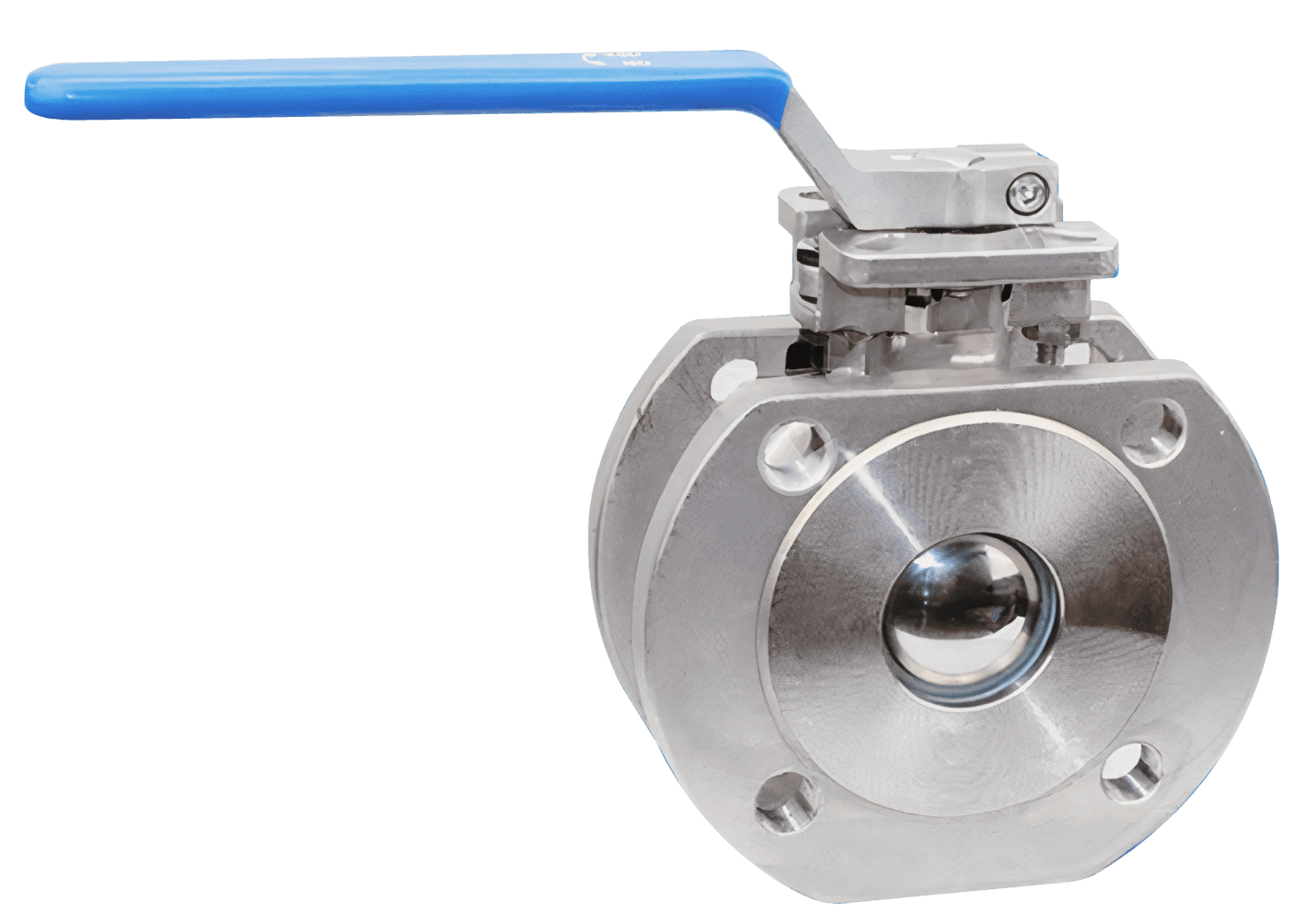

Monel Wafer

Monel Wafer

| Key Features

Locking Device: prevents unintended operation for safety

Fire-Safe Design: metal-to-metal secondary seal prevents leakage during fire

Anti-Blowout Stem: prevents stem ejection under high pressure

Anti-Static Design: ensures safe operation in explosive environments

Body Pressure Relief: auto-releasinig excess pressure

ISO 5211 Mounting Pad: Easy actuator installation and maintenance

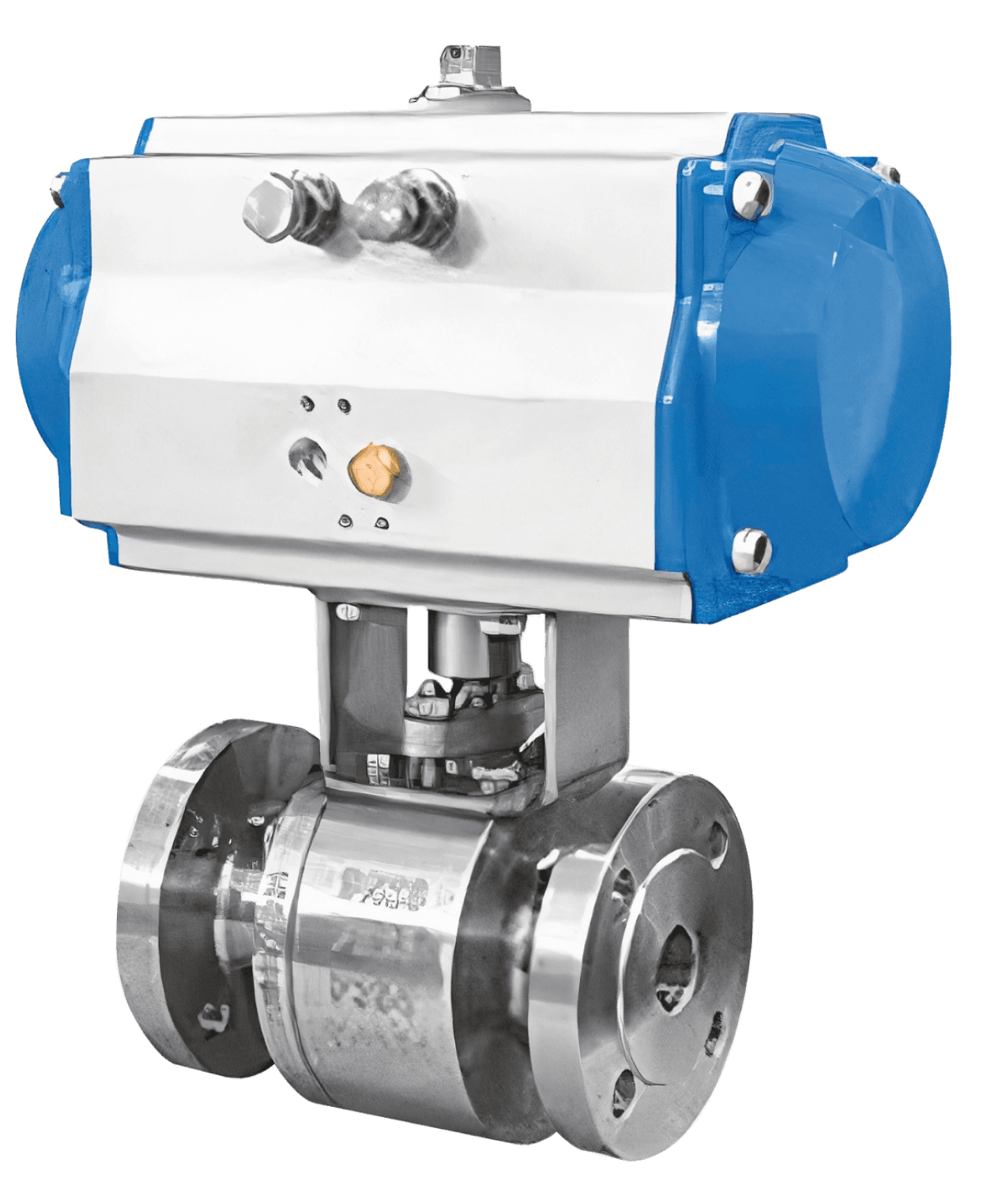

Forged Steel Floating Ball

Production Range

CLASS 150/300(PN 25-40, DN 15–250), CLASS 600(PN100-110, DN 15-100)
CLASS 900/1500(PN150-160/PN250-260, DN15-65), CLASS 2500 (PN420, DN 15-25)

CLASS 150/300(PN 25-40, DN 15–250), CLASS 600(PN100-110, DN 15-100) CLASS 900/1500(PN150-160/PN250-260, DN15-65), CLASS 2500 (PN420, DN 15-25)

CLASS 150/300(PN 25-40, DN 15–250), CLASS 600(PN100-110, DN 15-100), CLASS 900/1500(PN150-160/PN250-260, DN15-65), CLASS 2500 (PN420, DN 15-25)

CLASS 150/300(PN 25-40, DN 15–250), CLASS 600(PN100-110, DN 15-100), CLASS 900/1500(PN150-160/PN250-260, DN15-65), CLASS 2500 (PN420, DN 15-25)

Standard & Specification

GB/T 12237, API 608, API 6D, ASME B16.34
Face-to-Face: GB/T 12221, ASME B16.10
Testing: JB/T 9092, API 598, API 6D, ASME B16.34

GB/T 12237, API 608, API 6D, ASME B16.34 | Face-to-Face: GB/T 12221, ASME B16.10
Testing: JB/T 9092, API 598, API 6D, ASME B16.34

GB/T 12237, API 608, API 6D, ASME B16.34
Face-to-Face: GB/T 12221, ASME B16.10

Testing: JB/T 9092, API 598, API 6D, ASME B16.34

End Connection

Flanged (GB/T 9113, ASME B16.5),
Butt-Welding (GB/T 12224, ASME B16.25)

| Main Materials

Body

CS: A105, A216-WCB
Low Temp. Steel: A352-LCB, LCC
SS: A351-CF8, CF8M

Sulfur-Resistant Type: High-sulfur-resist. SS (A351-CF8M)

CS: A105, A216-WCB | Low Temp. Steel: A352-LCB, LCC
SS: A351-CF8, CF8M

Sulfur-Resistant Type: High-sulfur-resist. SS (A351-CF8M)

CS: A105, A216-WCB
Low Temp. Steel: A352-LCB, LCC
SS: A351-CF8, CF8M

Sulfur-Resist: High-sulfur-resist. SS (A351-CF8M)

CS: A105, A216-WCB
Low Temp. Steel: A352-LCB, LCC
SS: A351-CF8, CF8M

Sulfur-Resist: High-sulfur-resist. SS (A351-CF8M)

Ball

ENP-Coated or SS

Stem

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resistant Type: 17-4PH or Special AS

CS: 1Cr13, 2Cr13 (A276-410, 420) | SS: A276-304, 316
Sulfur-Resistant Type: 17-4PH or Special AS

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resist: 17-4PH or Special AS

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resist: 17-4PH or Special AS

Seat

Standard: PTFE/NYLON | Special: PEEK/DEVLON

Standard: PTFE/NYLON
Special: PEEK/DEVLON

Standard: PTFE/NYLON
Special: PEEK/DEVLON

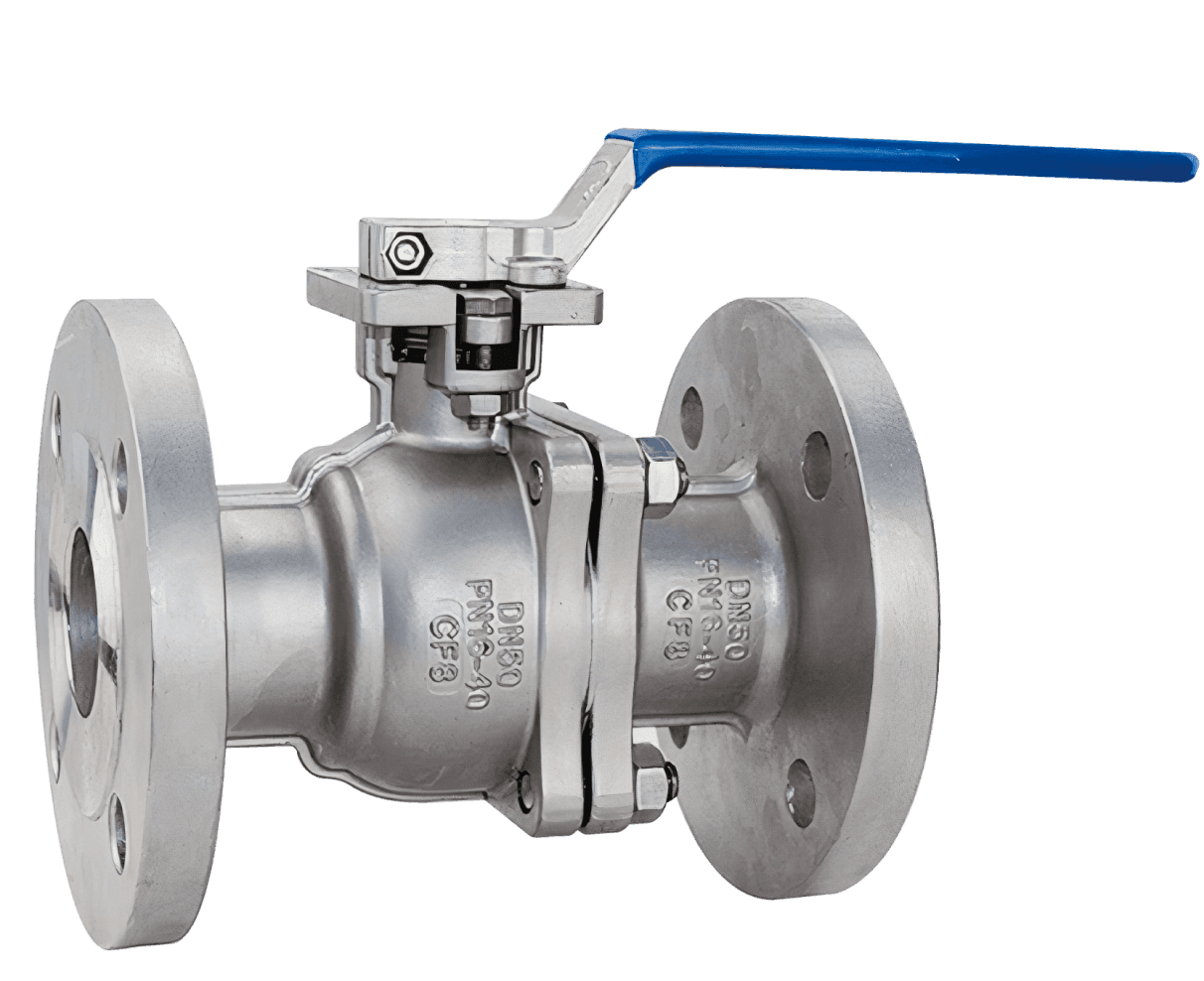

Cast Steel Floating Ball

Production Range

CLASS 150/300 (PN 25-40, DN 15–250), CLASS 600(PN 100-110, DN 15-100)

Standard & Specification

GB/T 12237, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221, ASME B16.10

Testing: JB/T 9092, API 598, API 6D, ASME B16.34

GB/T 12237, API 608 & 6D, ASME B16.34 | Face-to-Face: GB/T 12221, ASME B16.10
Testing: JB/T 9092, API 598, API 6D, ASME B16.34

End Connection

Flanged (GB/T 9113, ASME B16.5),
Butt-Welding (GB/T 12224, ASME B16.25)

| Main Materials

Body

CS: A216-WCB | Low Temp. Steel: A352-LCB, LCC | SS: A351-CF8, CF8M

CS: A216-WCB | Low Temp. Steel: A352-LCB, LCC |
SS: A351-CF8, CF8M

Ball

ENP-Coated Materials for Enhanced Durability

Stem

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resistant Type Stem Material: 17-4PH or Low-Temperature Resilient Steel

CS: 1Cr13, 2Cr13 (A276-410, 420) | SS: A276-304, 316
Sulfur-Resistant Type Stem Material: 17-4PH or Low-Temperature Resilient Steel

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resist. Stem Material: 17-4PH or Low-Temp. Resilient Steel

CS: 1Cr13, 2Cr13 (A276-410, 420)
SS: A276-304, 316

Sulfur-Resist. Stem Material: 17-4PH or Low-Temp. Resilient Steel

Seat

Standard: PTFE/NYLON
Special: PEEK/DEVLON

High Platform

High Platform

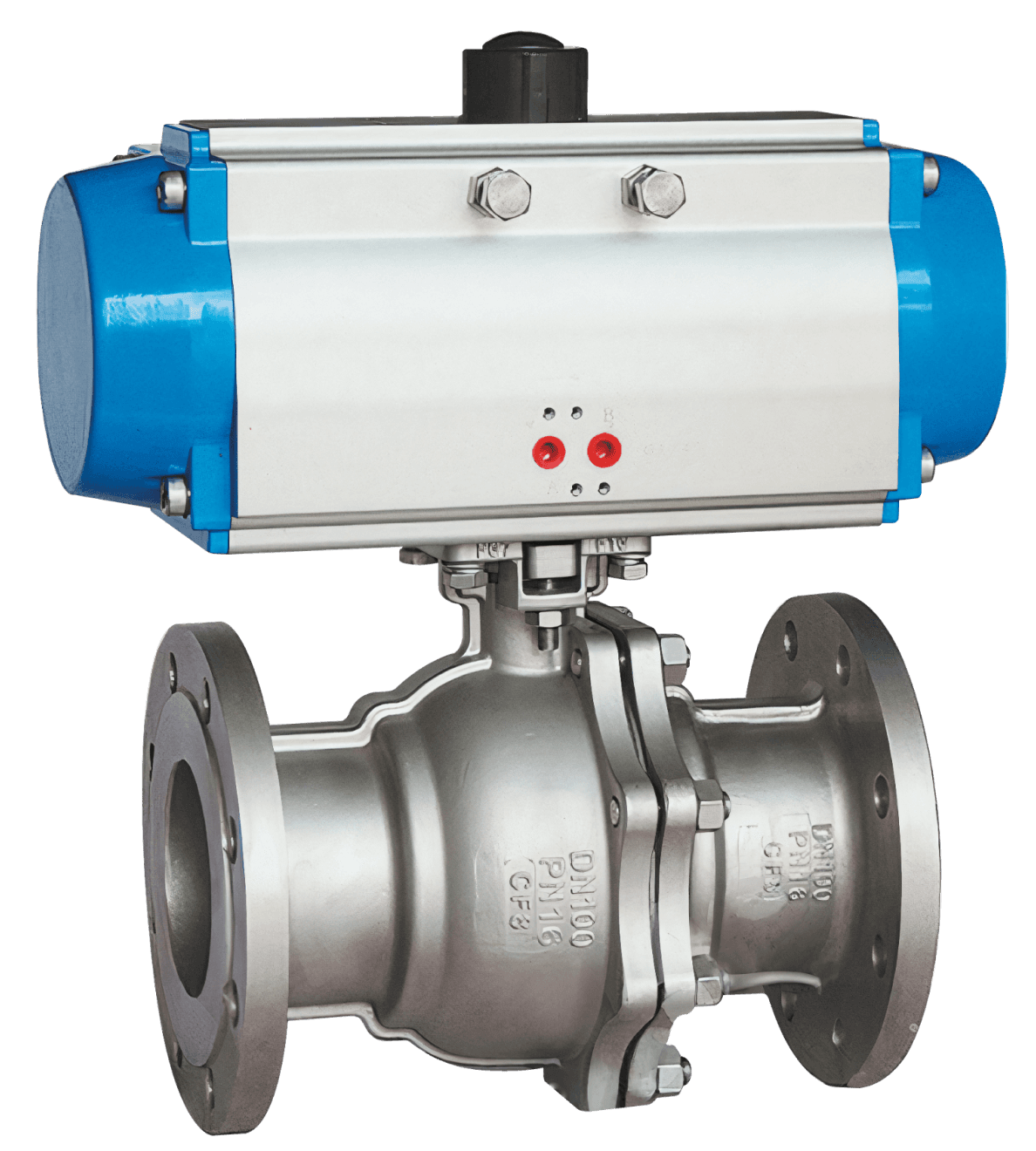

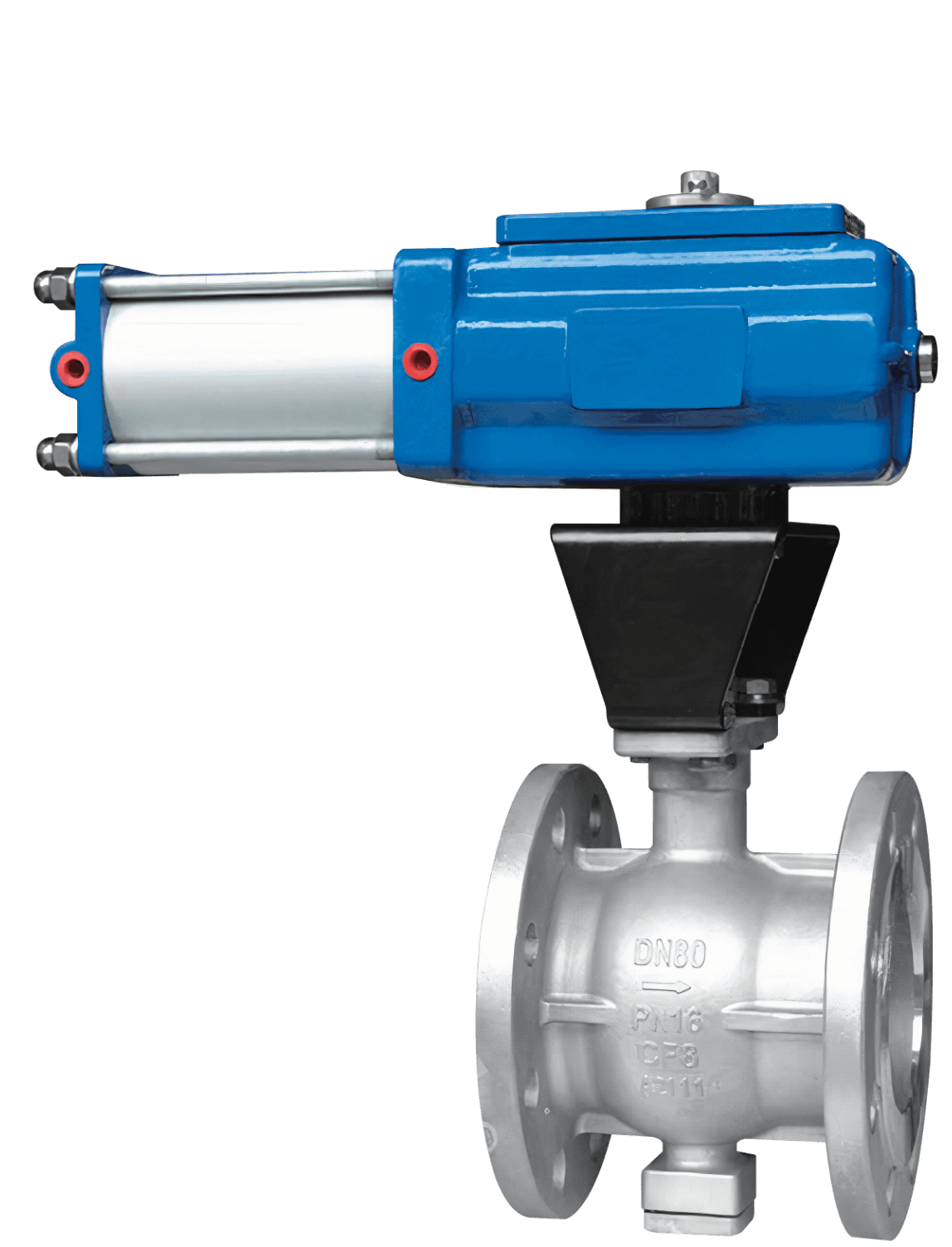

Pneumatic Flange High Platform

Pneumatic Flange High Platform

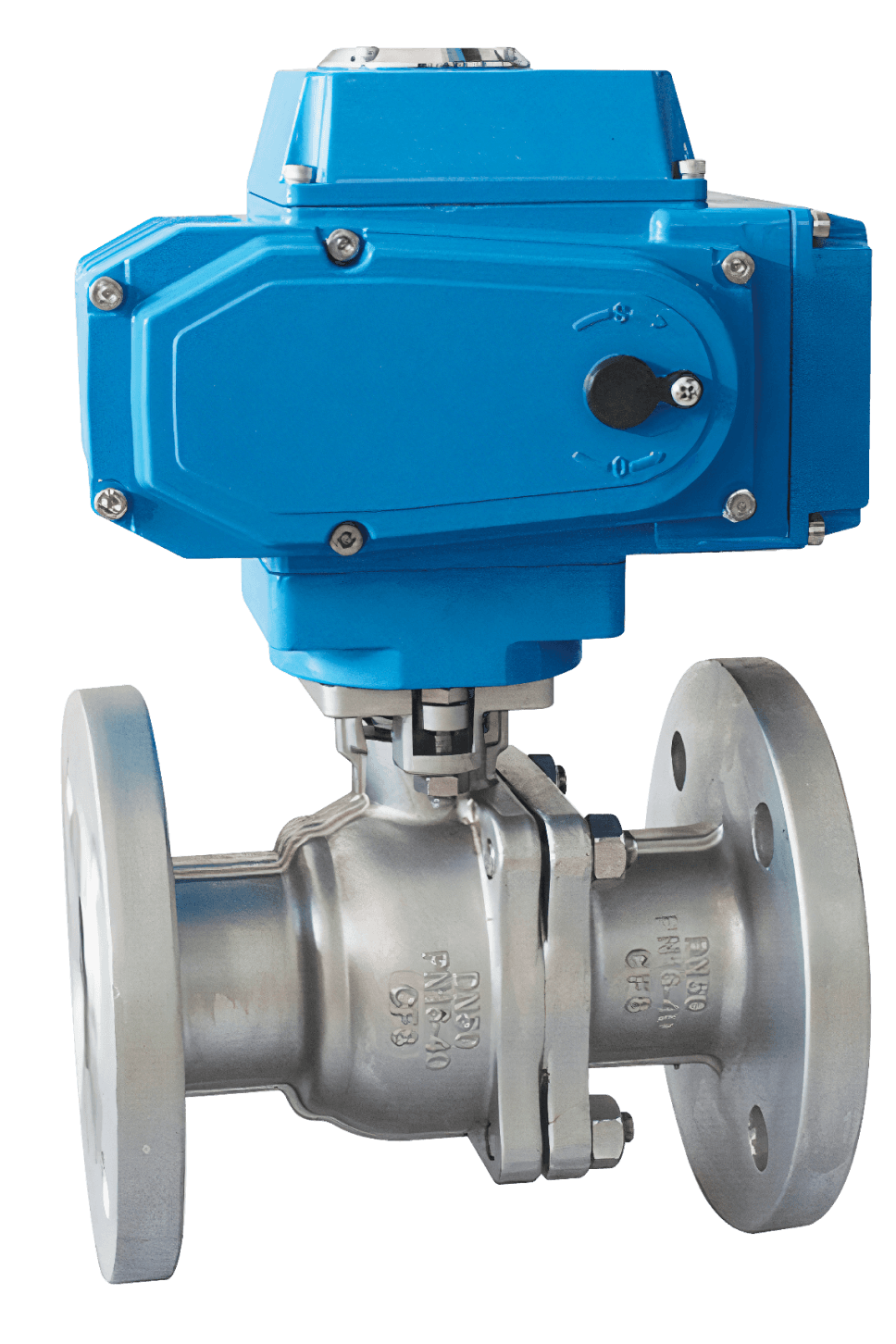

Electric Flange High Platform

Electric Flange High Platform

High Platform Floating Ball

Production Range

DN 15–1000, PN 1.6 – PN 42, ANSI 150LB - 2500LB / Soft Seat: -20°C - 800°C, Metal Seat: -196°C - 400°C

DN 15–1000, PN 1.6 – PN 42, ANSI 150LB - 2500LB
Soft Seat: -20°C - 800°C, Metal Seat: -196°C - 400°C

DN 15–1000, PN 1.6 – PN 42, ANSI 150LB - 2500LB | Soft Seat: -20°C - 800°C, Metal Seat: -196°C - 400°C

Standard & Specification

GB/T 12237, ASME B16.34
Testing: GB/T 13927, API598

End Connection

Flange, Thread, Butt-Weld, Socket-Weld

Operating Mode

Manual, Pneumatic, Electric Actuator

Optional

Anti-static design / Fireproof construction / Copper prohibitions / Special coatings available upon request

| Main Materials

Body

CS (LCB, WCB) / SS (CF8, CF8M, CF3M)

Ball

SS304, SS316, STL

Stem

304, SS316, 316L, 17-4PH, S20910

Seat

PTFE, PPL, Metal Seal

Forged Steel Ball Valve

Production Range

NPS 1/2"–56" (DN 15 – 1400),
Class 150 – 2500 (PN 6 – PN 420) / -29°C to 800°C

NPS 1/2"–56" (DN 15 – 1400), Class 150 – 2500 (PN 6 – PN 420) / -29°C to 800°C

Standard & Specification

API 6D, GB/T 19672 & 12237, ISO 17292
Testing: API 598, GB/T 13927 & 26480, JB/T 9092, ASME B16.34 ISO 5208 & 15848

End Connection

Wafer, Flange, Butt Welded

Operating Mode

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Materials

CS, SS, AS, Special Materials

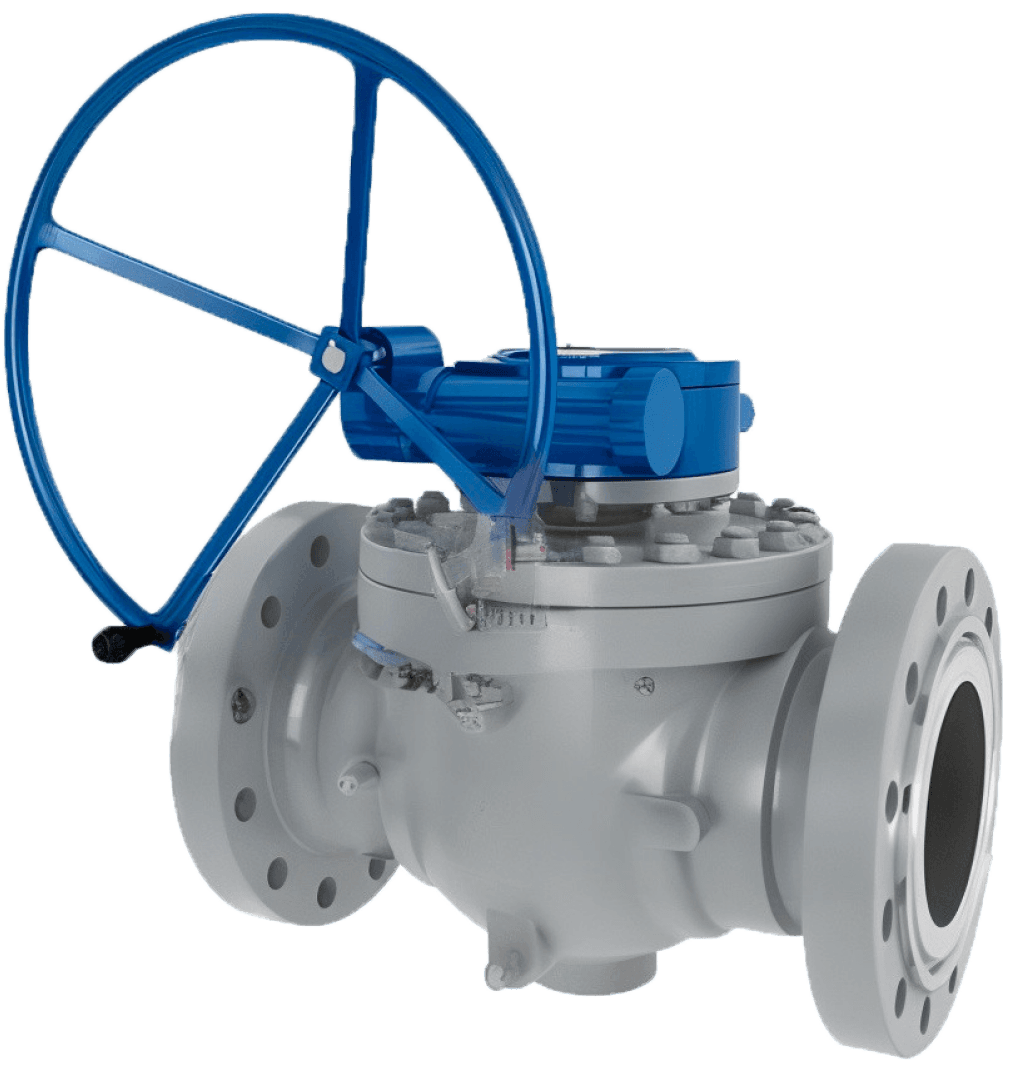

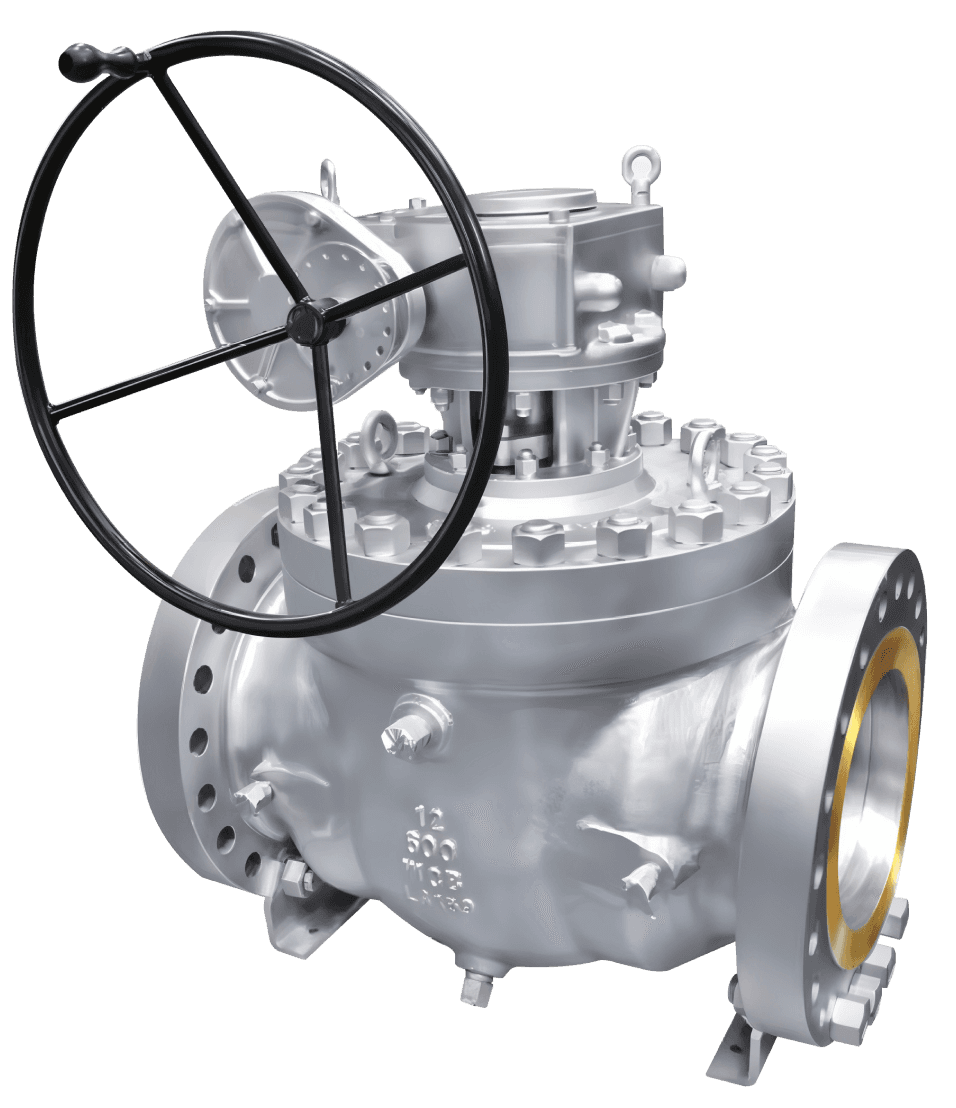

Top Entry Ball Valve

Top Entry

Production Range

NPS 2"–48" (DN 50 – 1200),
Class 150 – 1500 (PN 6 – PN 260) / -29°C to 800°C

NPS 2"–48" (DN 50 – 1200), Class 150 – 1500 (PN 6 – PN 260) / -29°C to 800°C

Standard & Specification

GB/T 12237 & 19672, API 6D, ISO 17292
Testing: JB/T 9092, API 598, ASME B16.34, GB/T 13927, GB/ 26480, ISO 5208 & 15848

End Connection

Flange, Butt Weld

Operating Mode

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Materials

CS, SS, AS, Special Materials

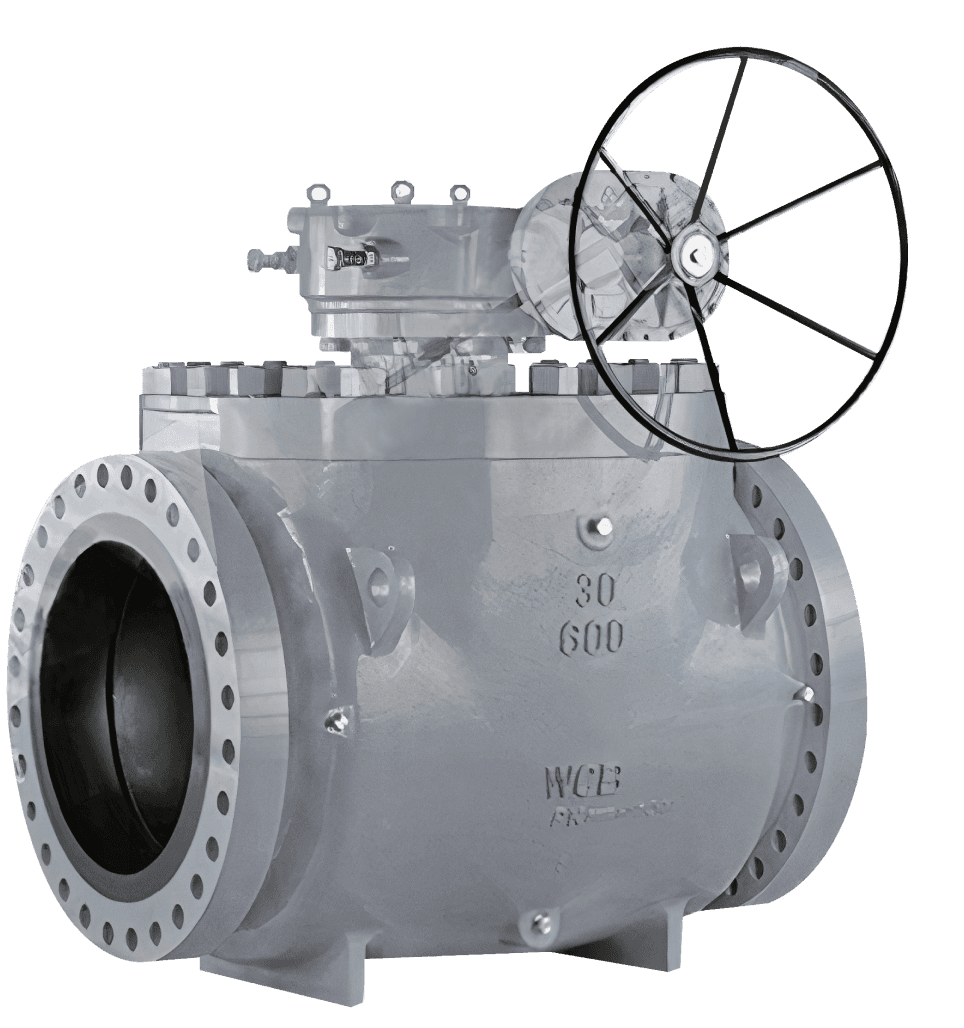

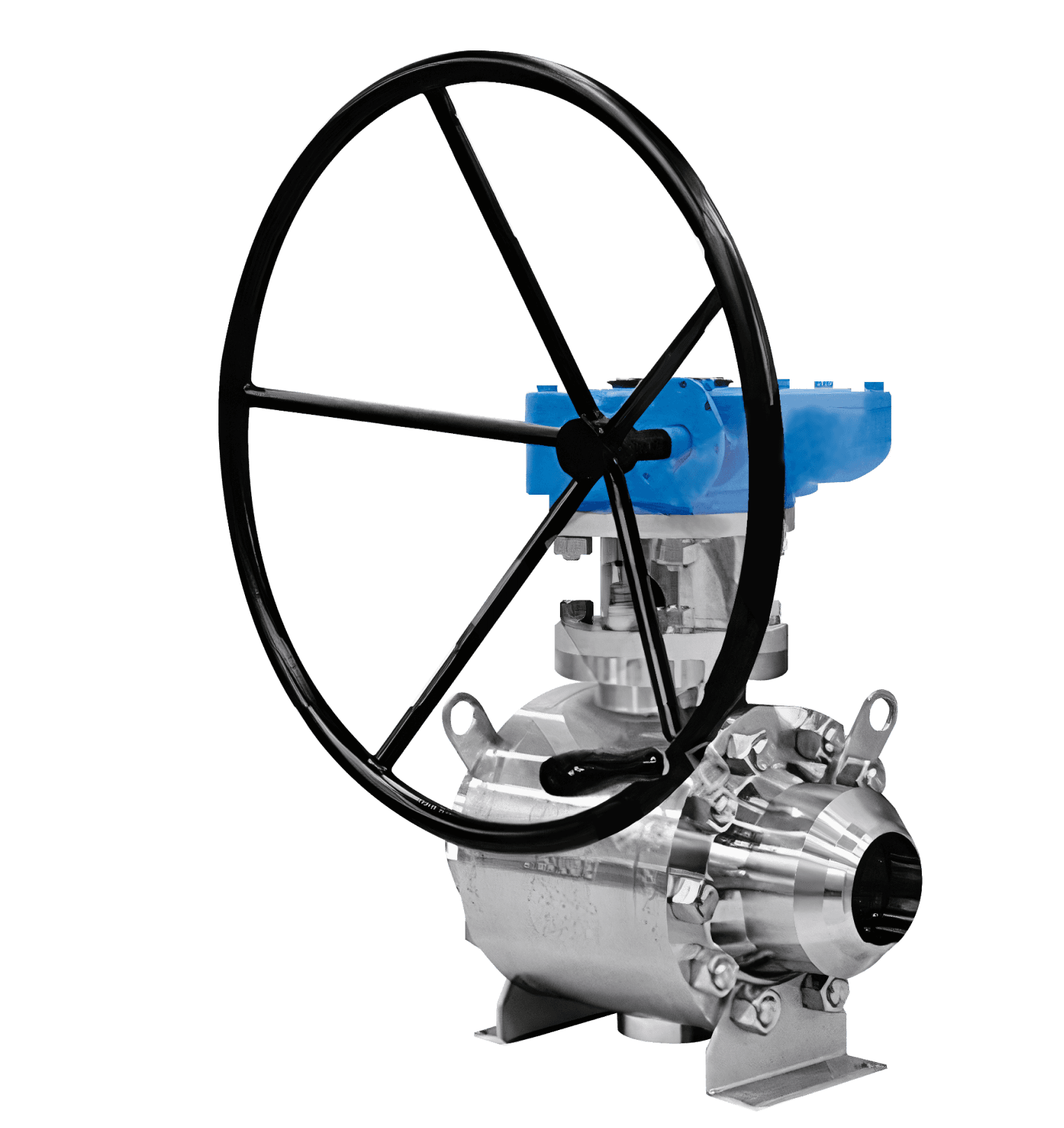

Top Entry Trunnion Mounted

Production Range

Class 150 – 2500 (PN 25-420)

Standard & Specification

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34 | Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D
Testing: API 598 & 6D & 6FA & 607, GB/T 19672, ASME B16.34

GB/T 12237 & 19672, API 608 & 6D, ASME B16.34
Face-to-Face: GB/T 12221 & 19672, ASME B16.10, API 6D

Testing: API 598 & 6D & 6FA & 607, GB/T 19672, ASME B16.34

End Connection

Flange (GB/T 9113, ASME B16.5/MSS SP-44 (for size 22 & below)),
Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 / MSS SP-44 (for size 22 & below)), Butt-Weld (GB/T 12224, ASME B16.25)

Flange (GB/T 9113, ASME B16.5 / MSS SP-44 (for size 22 & below)), Butt-Weld (GB/T 12224, ASME B16.25)

| Main Materials

Body

CS (ASTM A216-WCB)
Low Temp. Steel (ASTM A352-LCB)
SS (ASTM A351-CF8
Sulfur-Resisting Type: ASTM A351-CF8M)

CS (ASTM A216-WCB)
Low Temp. Steel (ASTM A352-LCB) | SS (ASTM A351-CF8
Sulfur-Resist.: ASTM A351-CF8M)

CS (ASTM A216-WCB) | Low Temp. Steel (ASTM A352-LCB) | SS (ASTM A351-CF8
Sulfur-Resist.: ASTM A351-CF8M)

Ball

Coated for durability (25+ENP, A105+ENP, etc.)

Stem

SS (304, 316, etc.)

Seat

Standard: PTFE/NYLON | Special: PEEK/DEVLON

Standard: PTFE/NYLON
Special: PEEK/DEVLON

Side Entry

Side Entry

3 Way Ball Valve

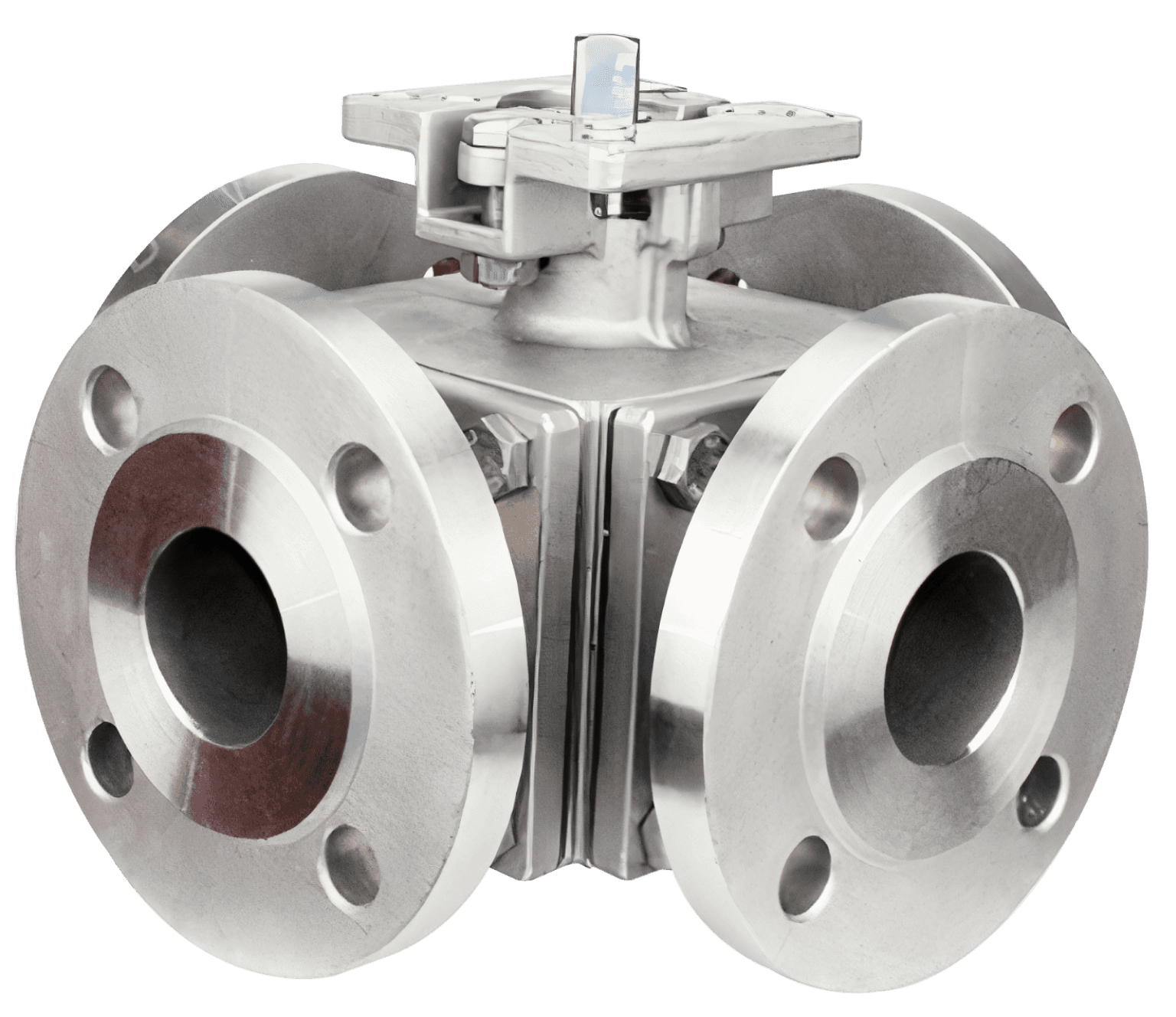

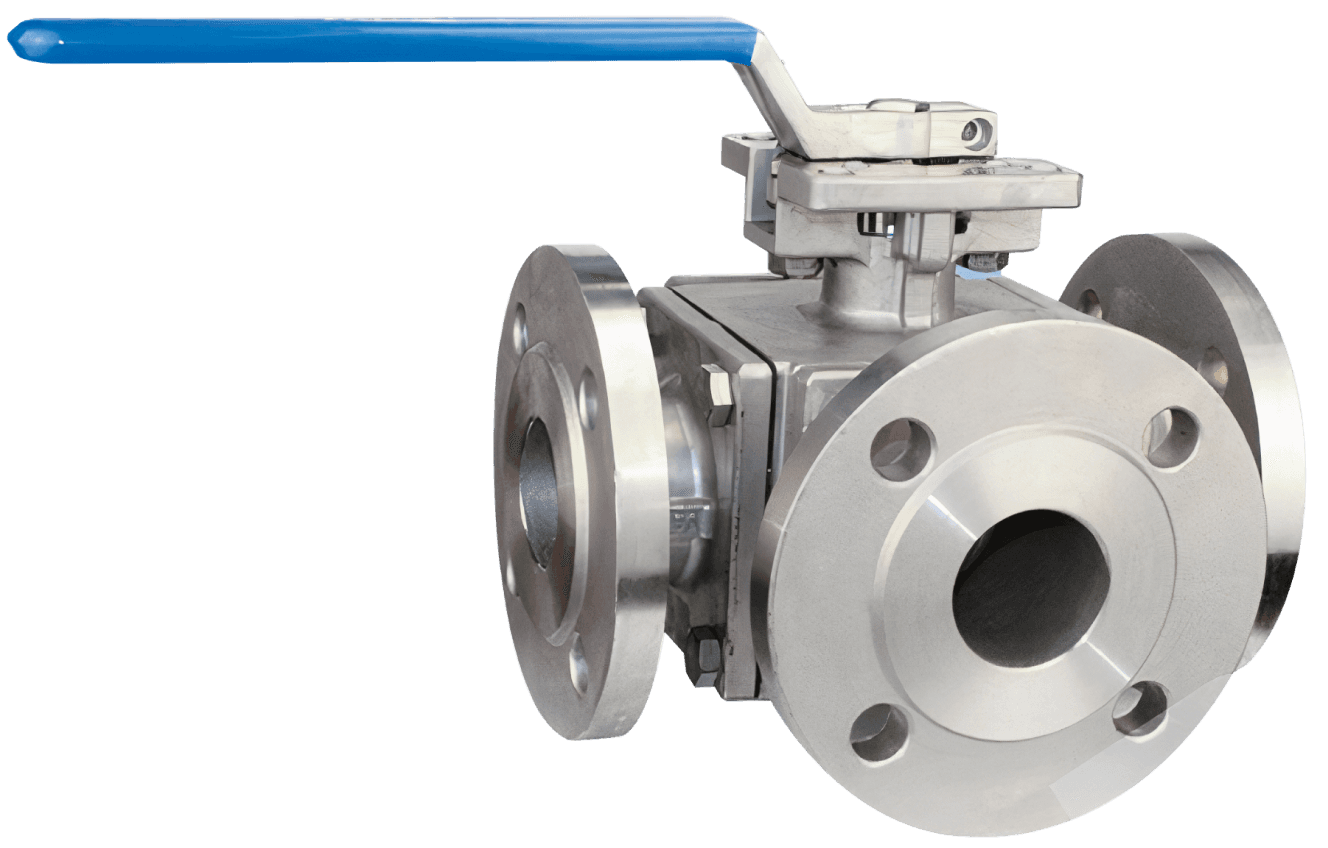

Manual 3 Way Flange

Manual 3 Way Flange

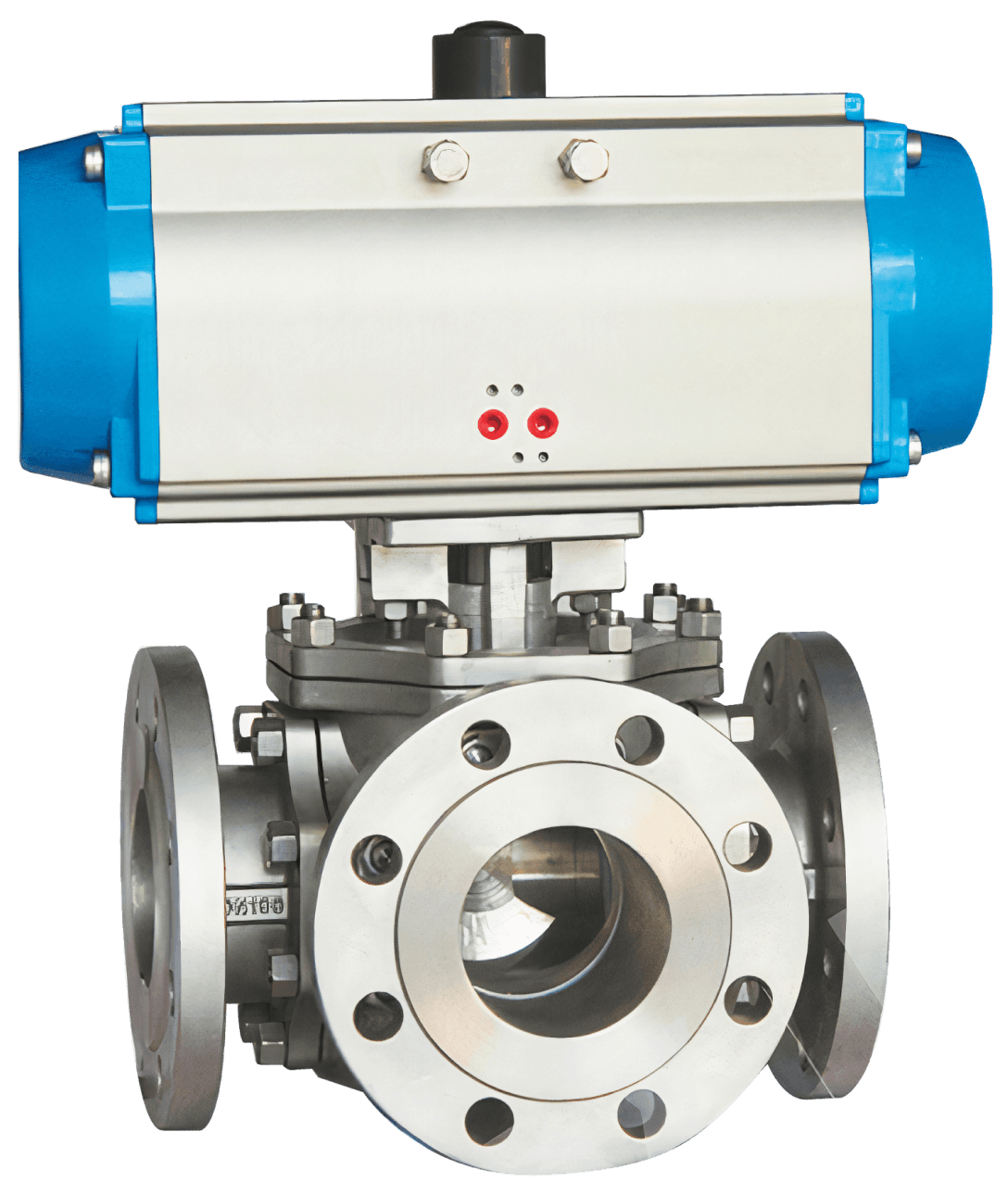

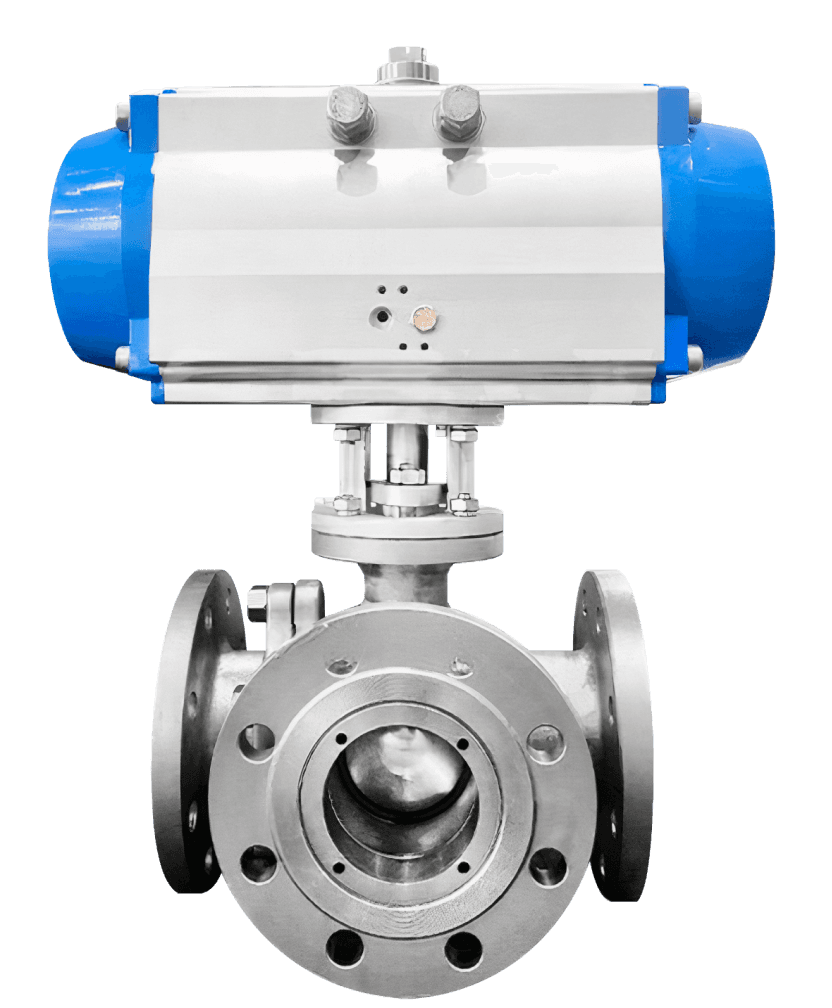

Pneumatic 3 Way Flange

Pneumatic 3 Way Flange

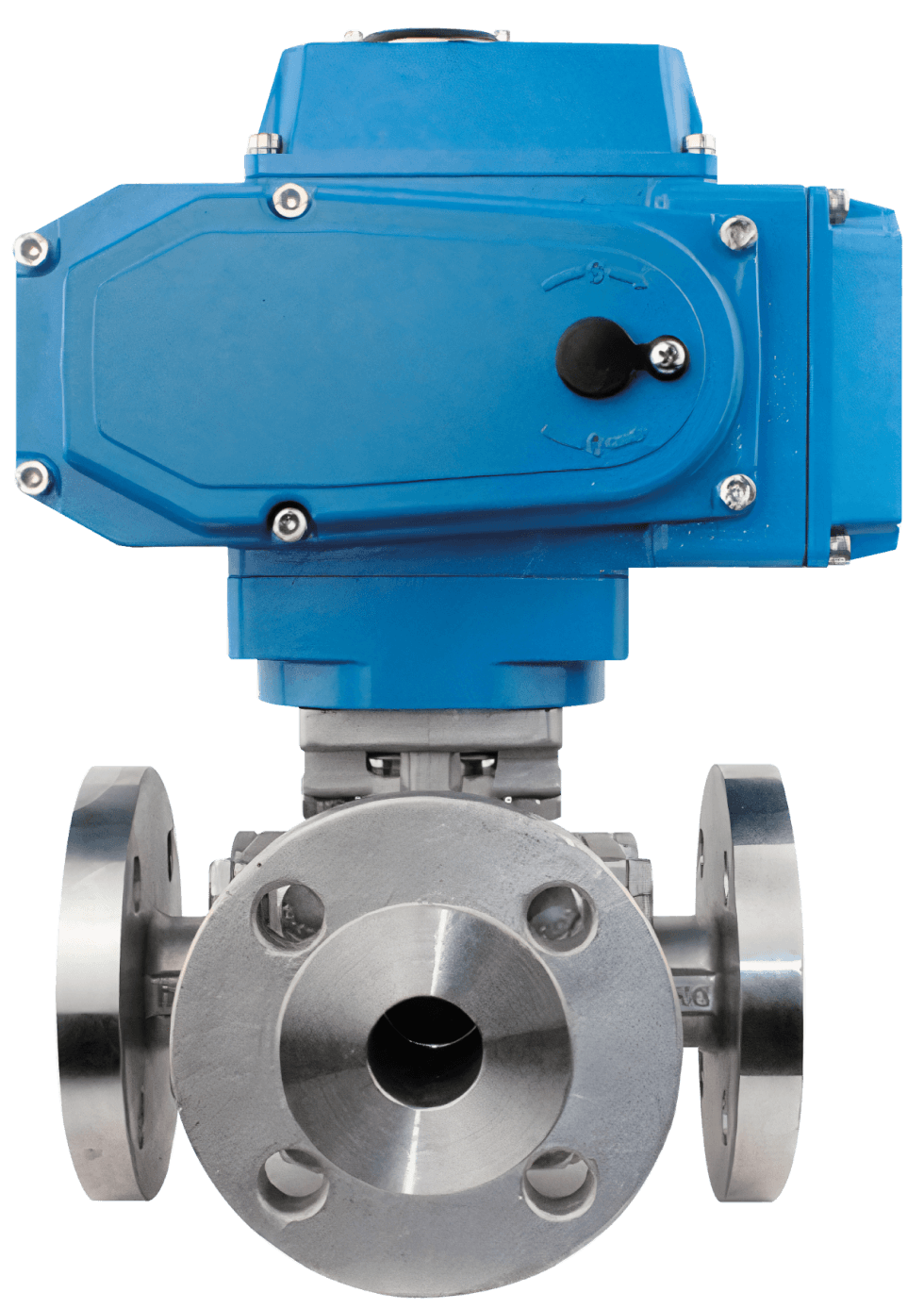

Electric 3 Way Flange

Electric 3 Way Flange

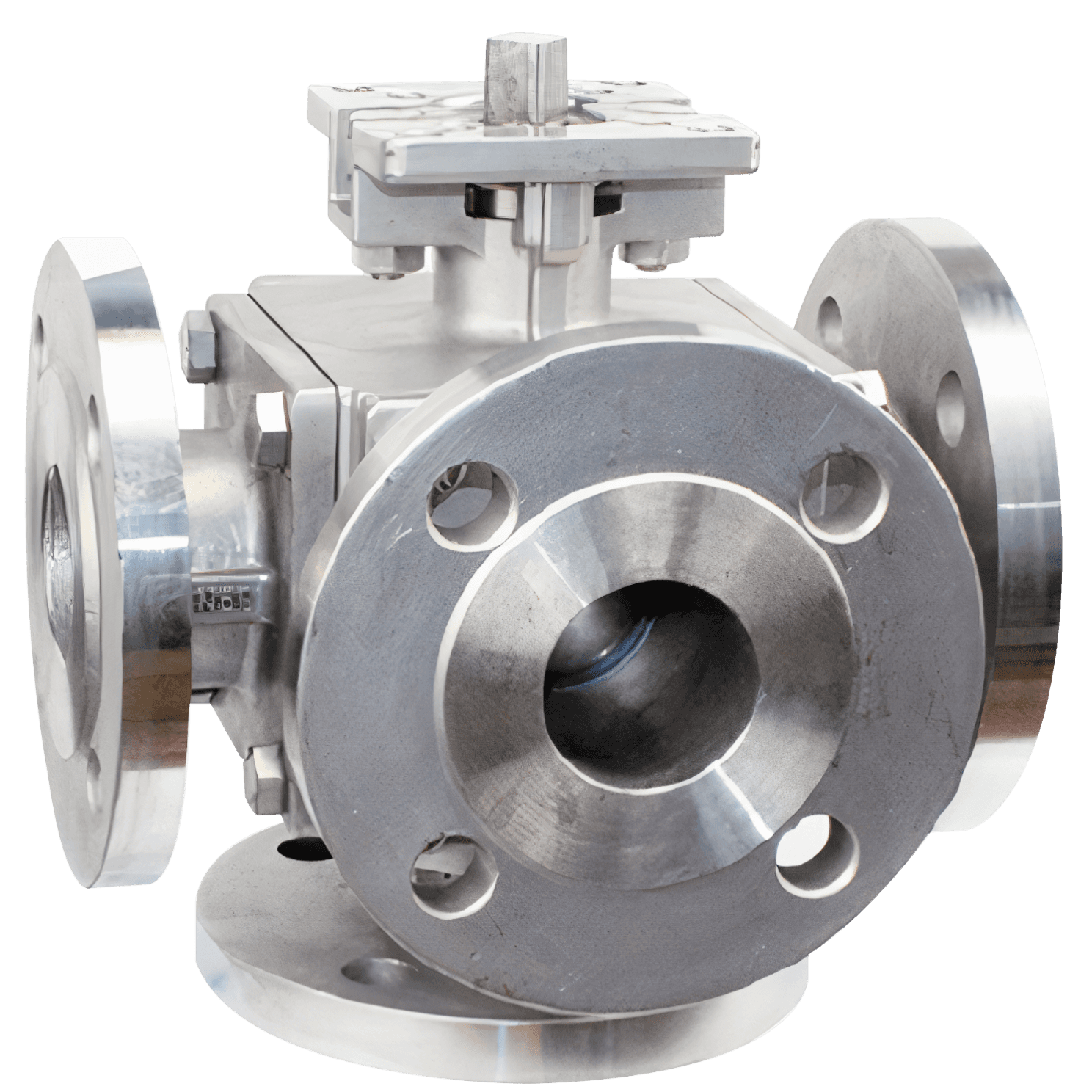

3 Way Flange

Production Range

PN 1.6 - PN 42, ANSI 150LB - 2500LB, DN 15 - 400 | Soft Seat -20°C to 200°C, Metal Seat -196°C to 400°C

PN 1.6 - PN 42, ANSI 150LB - 2500LB, DN 15 - 400
Soft Seat -20°C to 200°C, Metal Seat -196°C to 400°C

Standard & Specification

GB/T 12237, ASME B16.34
Testing: GB/T 13927, API 598

End Connection

Flange, Thread, Butt Weld, Socket Weld

Operation

Manual, Pneumatic, Electric Actuator, etc.

Optional

Anti-static design, Fire protection design, Oil-free treatment, Copper prohibition, Spherical special treatment, Customers request painting

| Main Materials

Body

WCB, CF8, CF8M, CF3M

Ball

SS304, SS316, SS316L, SS316L + STL

Stem

304, SS316, 316L, 17-4PH, S20910

Seat

PTFE, PPL, (Metal seal, etc.)

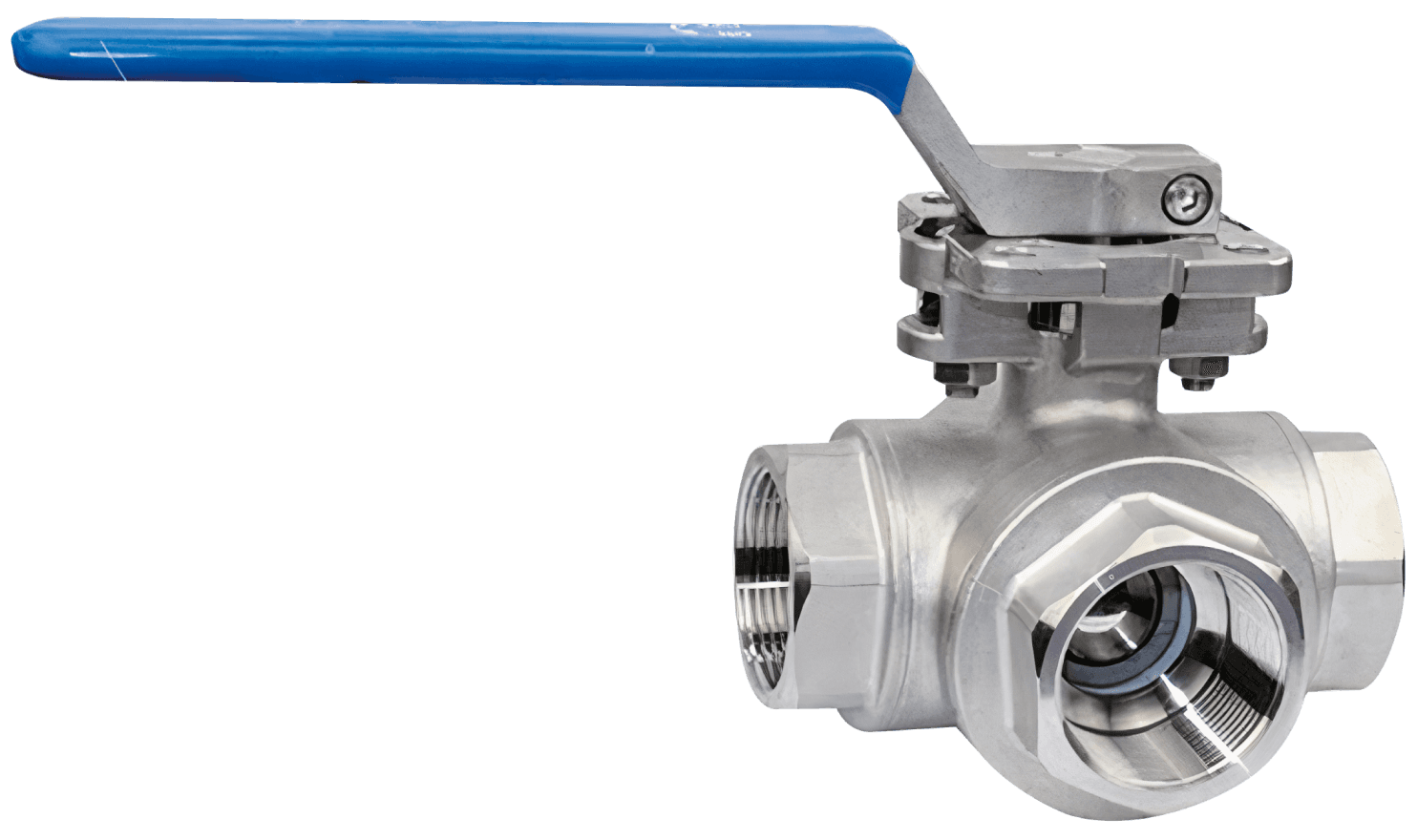

Manual 3 Way Tee Thread

Manual 3 Way Tee Thread

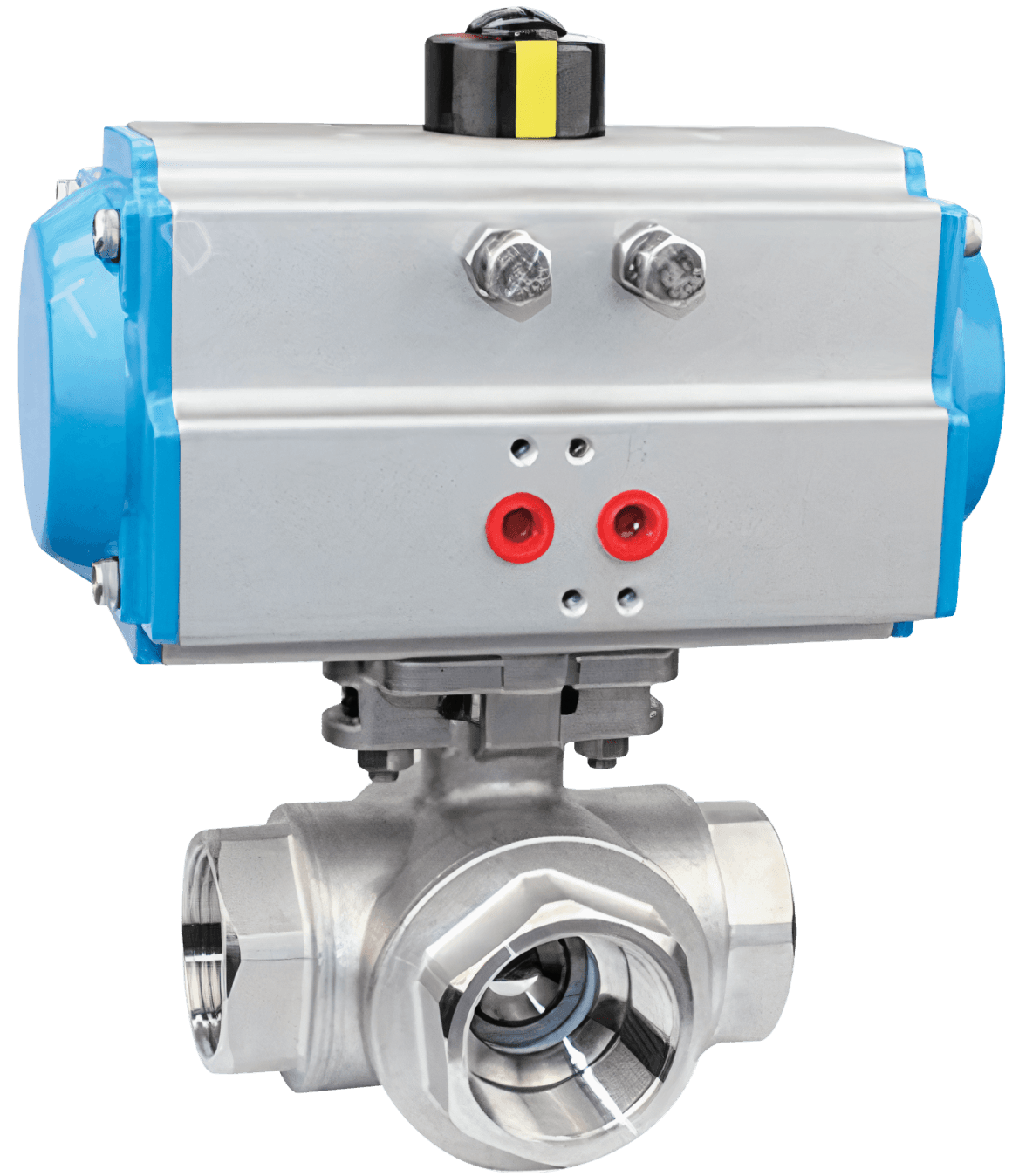

Pneumatic 3 Way Tee Thread

Pneumatic 3 Way Tee Thread

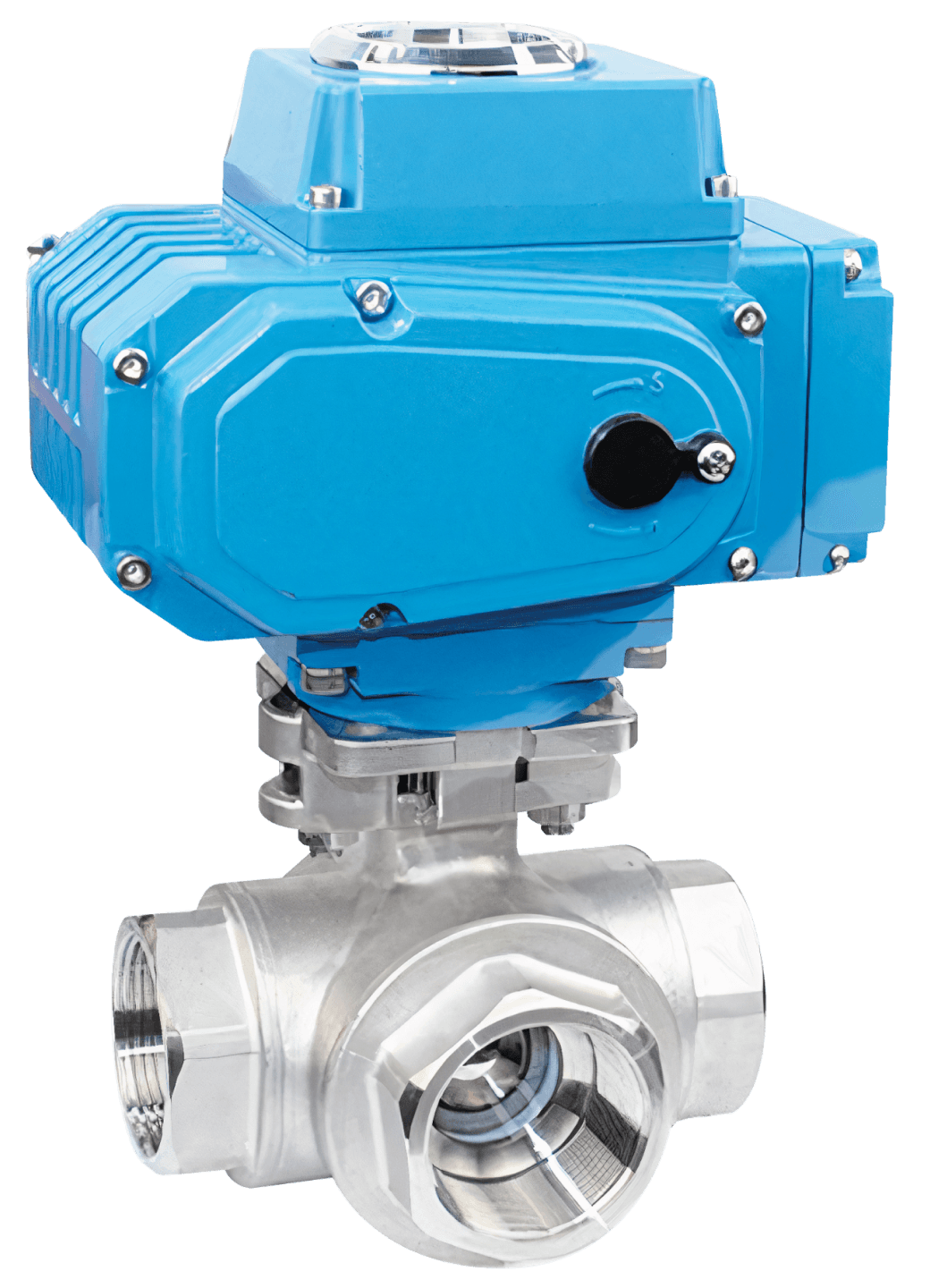

Electric 3 Way Tee Thread

Electric 3 Way Tee Thread

3 Way Tee Thread

Production Range

1000WOG, DN 15 - 50
Soft Seat -20°C to 200°C

Standard & Specification

Testing: GB/T 13927, API 598

Connection Method

BSPT, BSP, NPT, DIN, JIS, RC, G

Operation

Manual, Pneumatic, Electric Actuator, etc.

Optional

Anti-static design, Oil-free treatment, Copper prohibition, Spherical special treatment

| Main Materials

Body

CF8, CF8M CF3M

Ball

SS304, SS316, SS316L

Stem

SS304, SS316, SS316L

Seat

PTFE, PPL

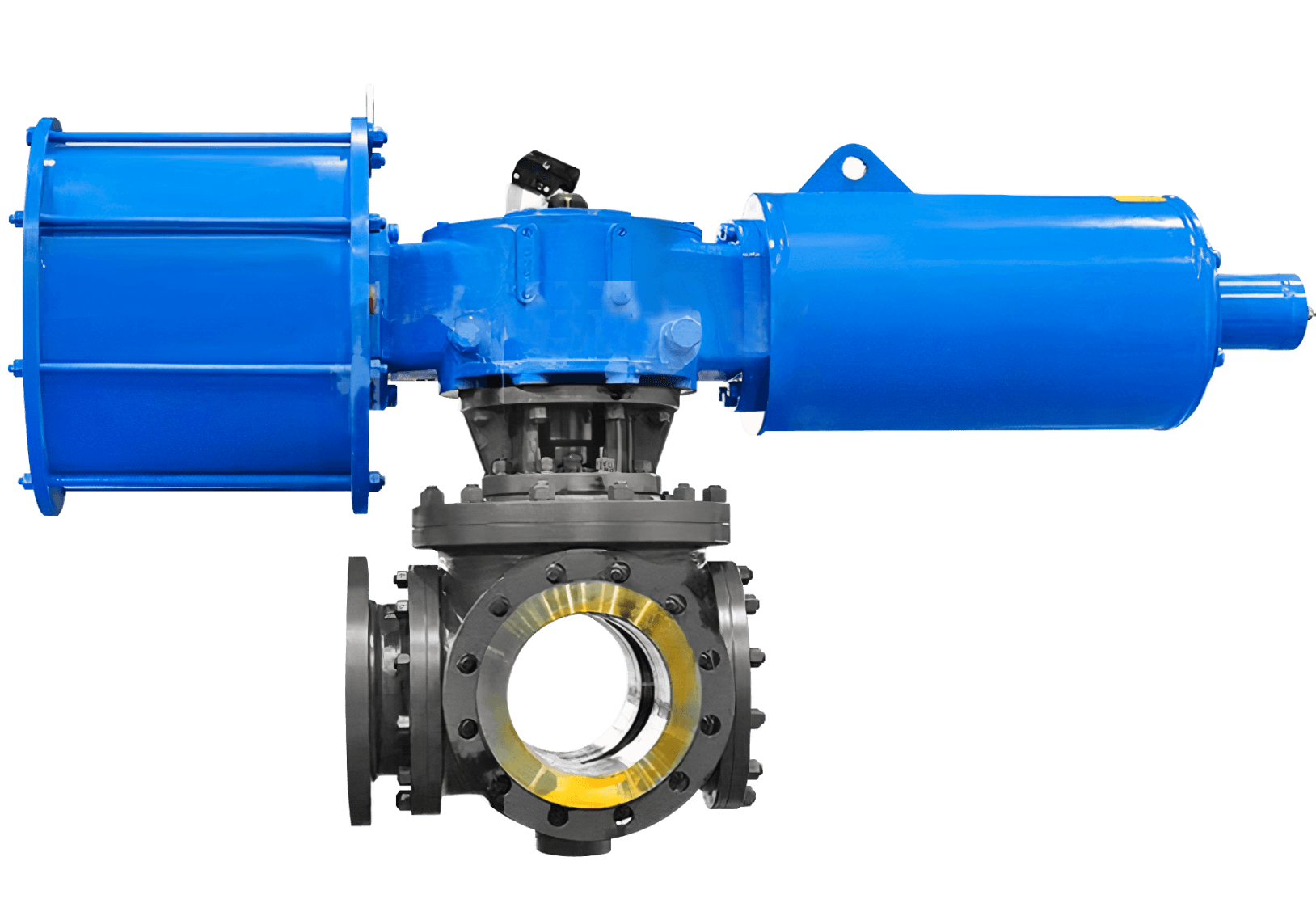

T-port Trunnion Pneumatic

T-port Trunnion Pneumatic

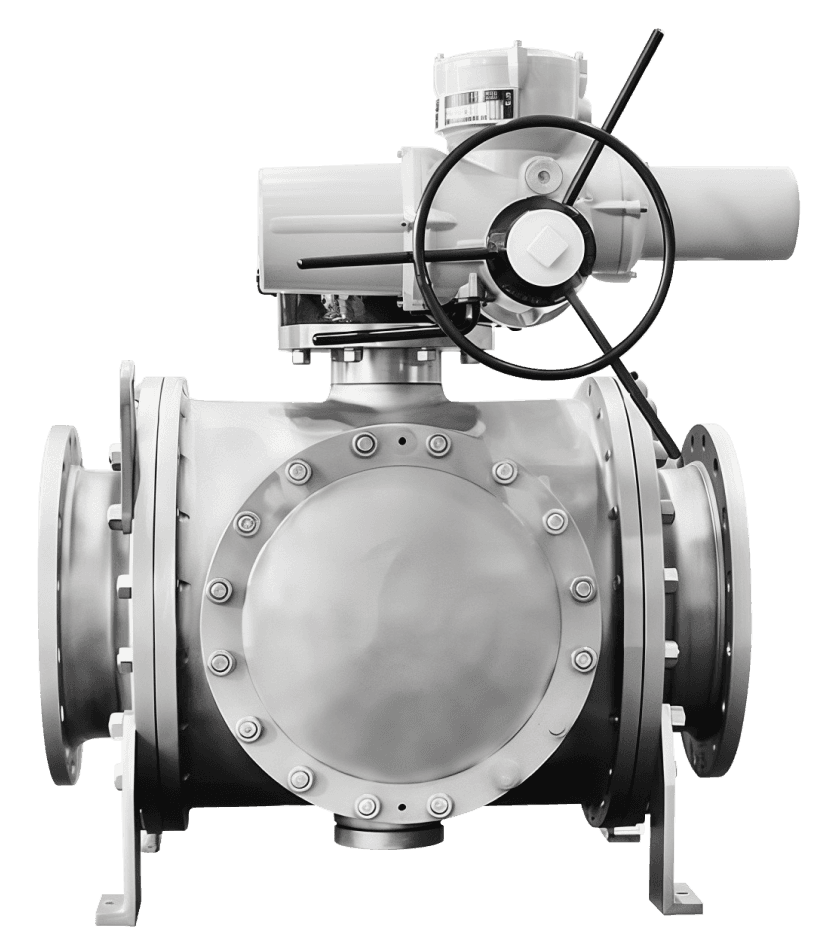

T-port Casting with Electric

T-port Casting with Electric

T-type Stainless Steel

Stainless Steel

T-type Stainless Steel

Stainless Steel

3 Way

Production Range

NPS 1"–48" (DN 25 – 1200),
Class 150 – 2500 (PN 6 – PN 420) / -29°C to 350°C

NPS 1"–48" (DN 25 – 1200), Class 150 – 2500 (PN 6 – PN 420) / -29°C to 350°C

Standard & Specification

API 6D, GB/T 12237 & 19672. ISO 17292
Testing: API 598, ASME B16.34, GB/T 13927, GB/ 26480, JB/T 9092, ISO 5208 & 15848

Connection

Flange, Butt Welded

Operation

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Material

CS, SS, AS, Special Materials, Chrome-molybdenum Steel

4 Way Ball Valve

Double L

Double L

3 Position

3 Position

4 Way Double L

Production Range

DN15 – DN200, PN16

End Connection

Flanged (GB Standard)

4 Way 3 Position

Production Range

DN15 – DN200, PN16

End Connection

Flanged (GB Standard)

3 Piece Ball Valve

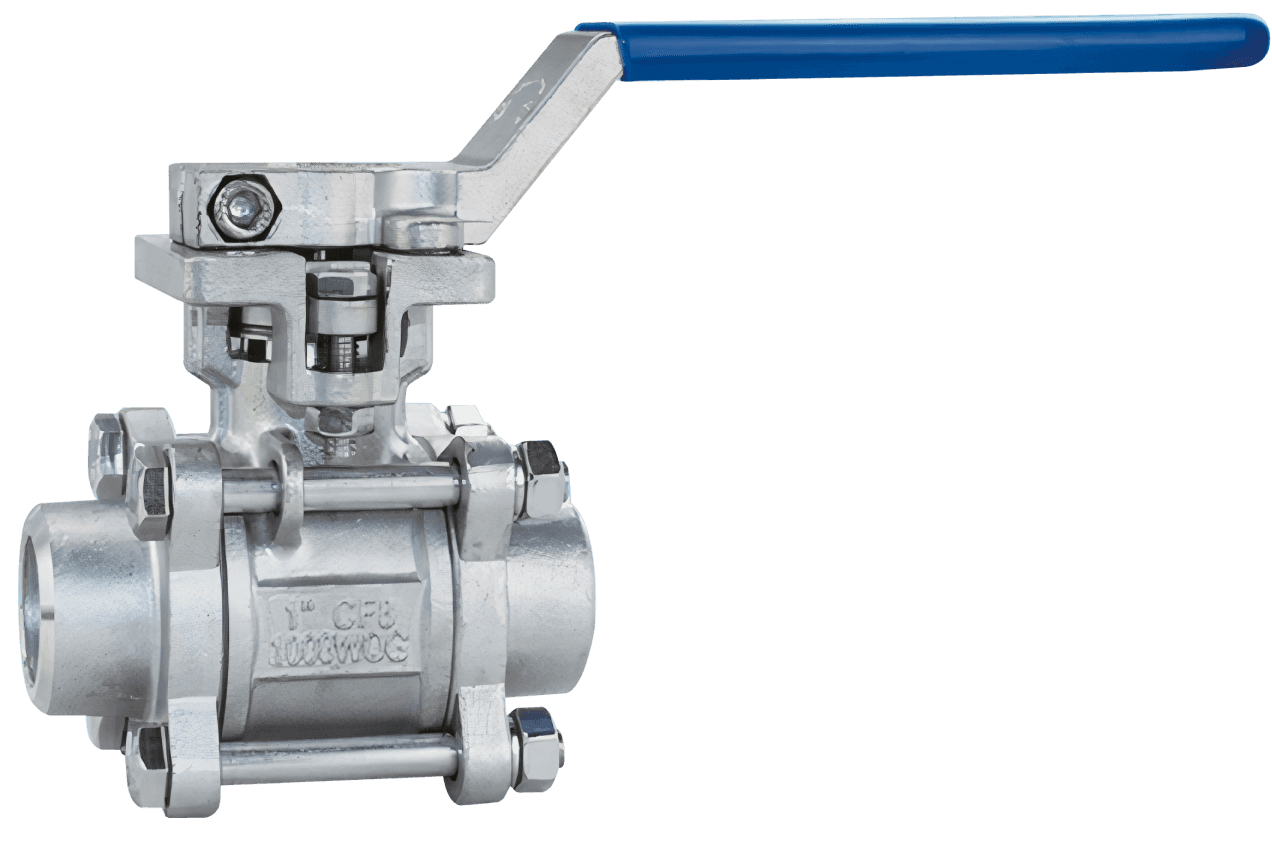

Manual Butt Weld/Clamp/ Threaded/Socket

Manual Butt Weld / Clamp / Threaded / Socket

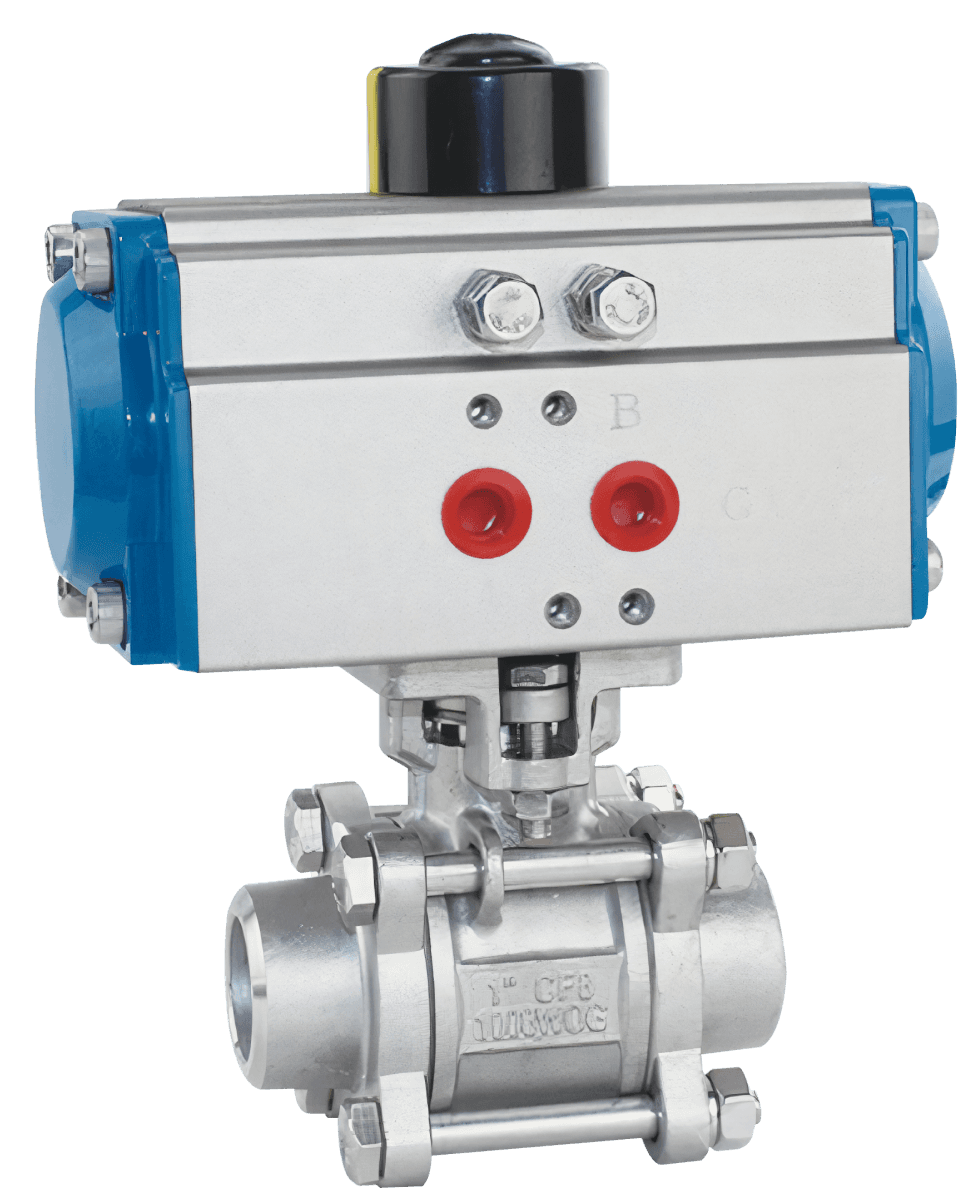

Pneumatic Butt Weld/ Clamp/Threaded/Socket

Pneumatic Butt Weld/Clamp/Threaded/Socket

Electric Butt Weld/ Clamp/Threaded/Socket

Electric Butt Weld/ Clamp/Threaded/Socket

3 Piece Ball Valve

Production Range

1000WOG, DN 15 - 100
Soft Seat -20°C to 200°C

Standard & Specification

DIN, JIS
Testing: GB/T 13927, API 598

End Connection

Thread(BSPT, BSP, NPT, RC, G), Butt Weld, Socket Weld, Clamp

Operation

Manual, Pneumatic, Electric Actuator, etc.

Optional

Anti-static design, Oil-free treatment, Copper prohibition, Spherical special treatment

| Main Materials

Body, Bonnet

CF8, CF8M CF3M

Ball, Stem

SS304, SS316, SS316L

Seat

PTFE, PPL

Special Ball Valve

Thin Manual

Thin Manual

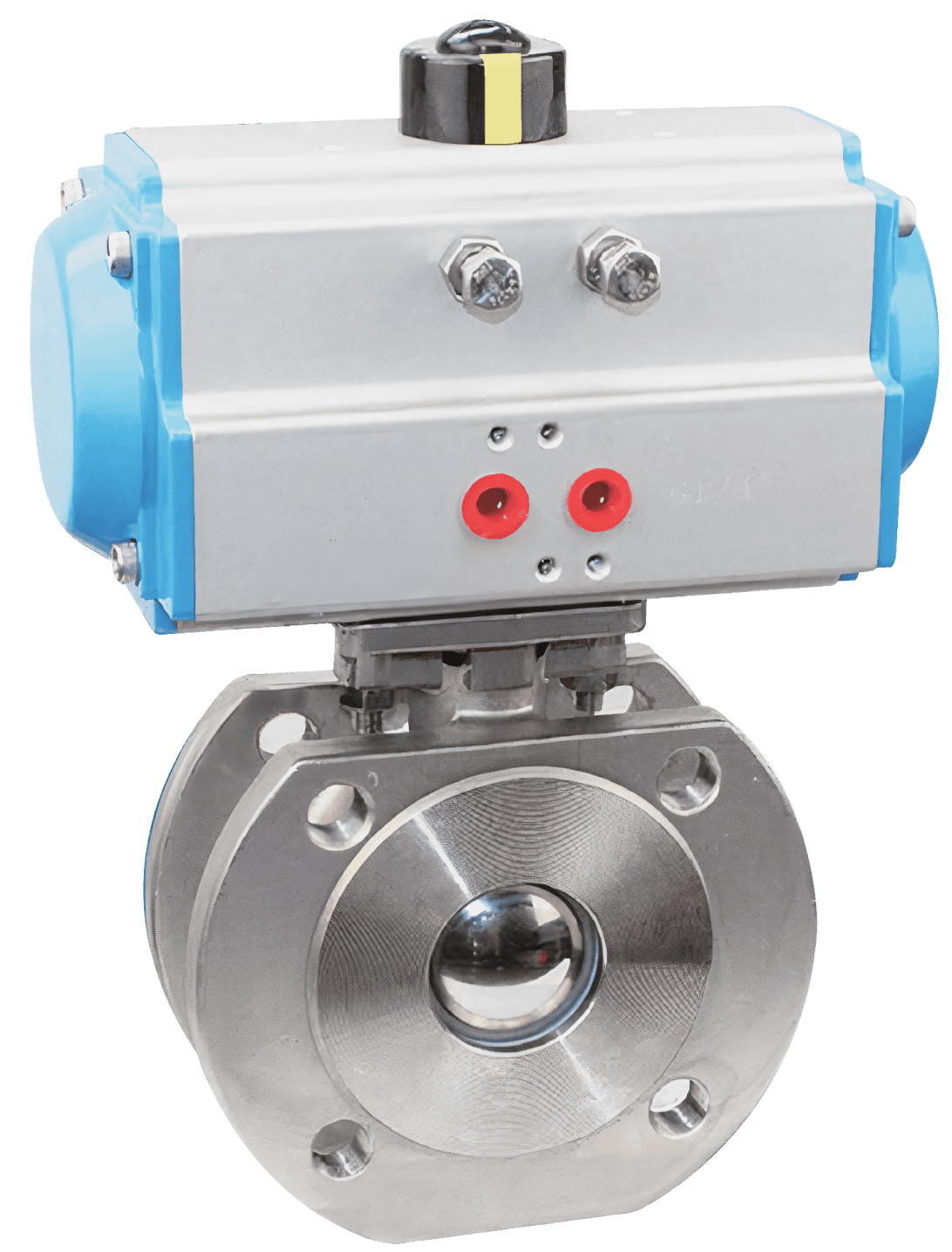

Thin Pneumatic

Thin Pneumatic

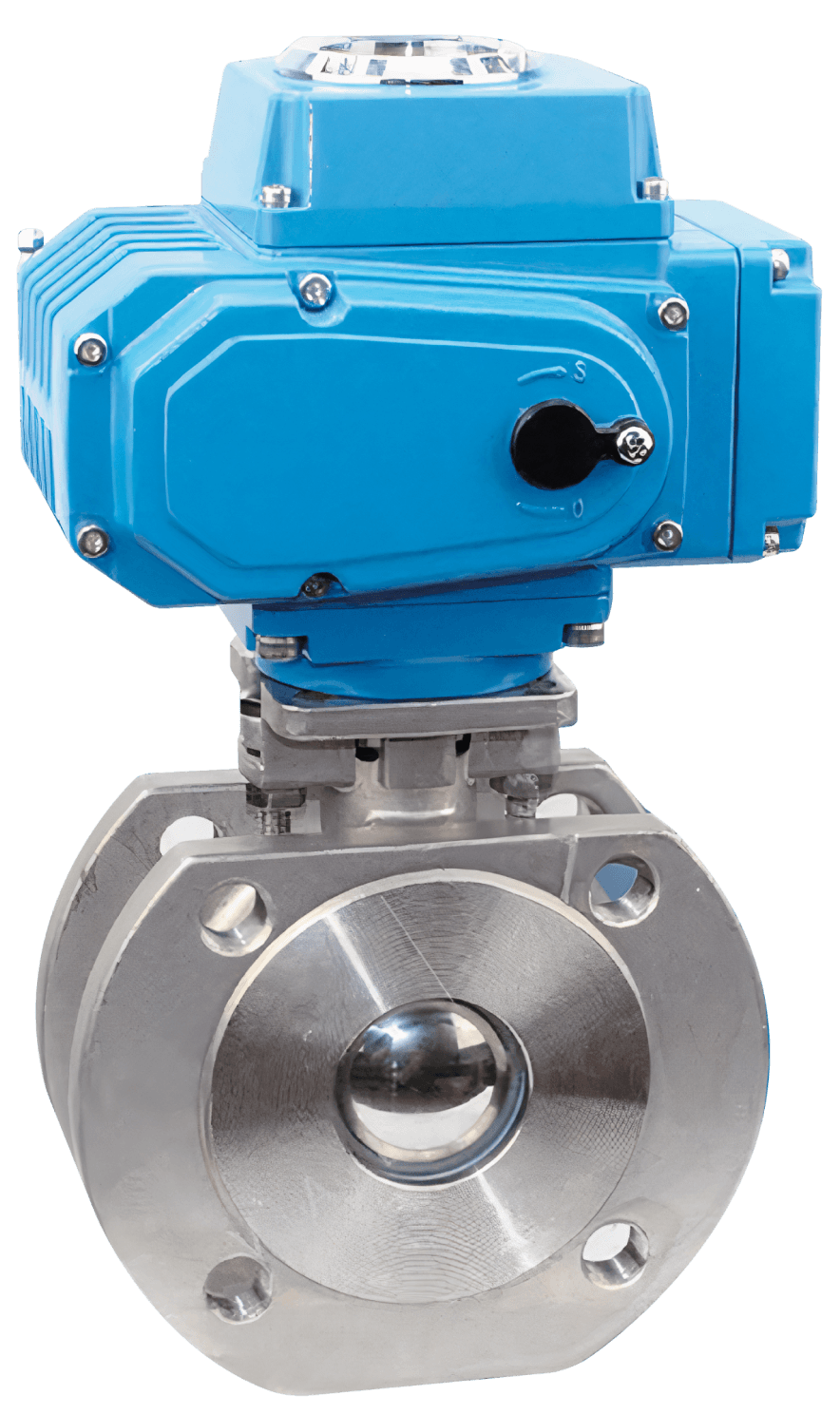

Thin Electric

Thin Electric

Thin

Production Range

1000WOG, DN 15 - 100
Soft Seat -20°C to 200°C

Standard & Specification

DIN, JIS
Testing: GB/T 13927, API 598

End Connection

Thread(BSPT, BSP, NPT, RC, G), Butt Weld, Socket Weld, Clamp

Operation

Manual, Pneumatic, Electric Actuator, etc.

Optional

Anti-static design, Oil-free treatment, Copper prohibition, Spherical special treatment

| Main Materials

Body, Bonnet

Body,
Bonnet

CF8, CF8M CF3M

Ball, Stem

SS304, SS316, SS316L

Seat

PTFE, PPL

Low Temperature

Production Range

NPS 1/2"–24" (DN 15 – 600),
Class 150 – 1500 (PN 6 – PN 260) / -46°C to -196°C

NPS 1/2"–24" (DN 15 – 600), Class 150 – 1500 (PN 6 – PN 260) / -46°C to -196°C

Standard & Specification

BS 6364, JB/T 7749, MSS SP-134, GB/T 24925
Testing: API 598, ASME B16.34, GB/T 26480, BS 6364, JB/T 7749 & 12622, MSS SP-134, ISO 15848

BS 6364, JB/T 7749, MSS SP-134, GB/T 24925 | Testing: API 598, ASME B16.34, GB/T 26480, BS 6364, JB/T 7749 & 12622, MSS SP-134, ISO 15848

BS 6364, JB/T 7749, MSS SP-134, GB/T 24925 | Testing: API 598, ASME B16.34, GB/T 26480, BS 6364, JB/T 7749 & 12622, MSS SP-134, ISO 15848

Connection

Flange, Wafer, Butt Weld

Operation

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Material

CS, SS

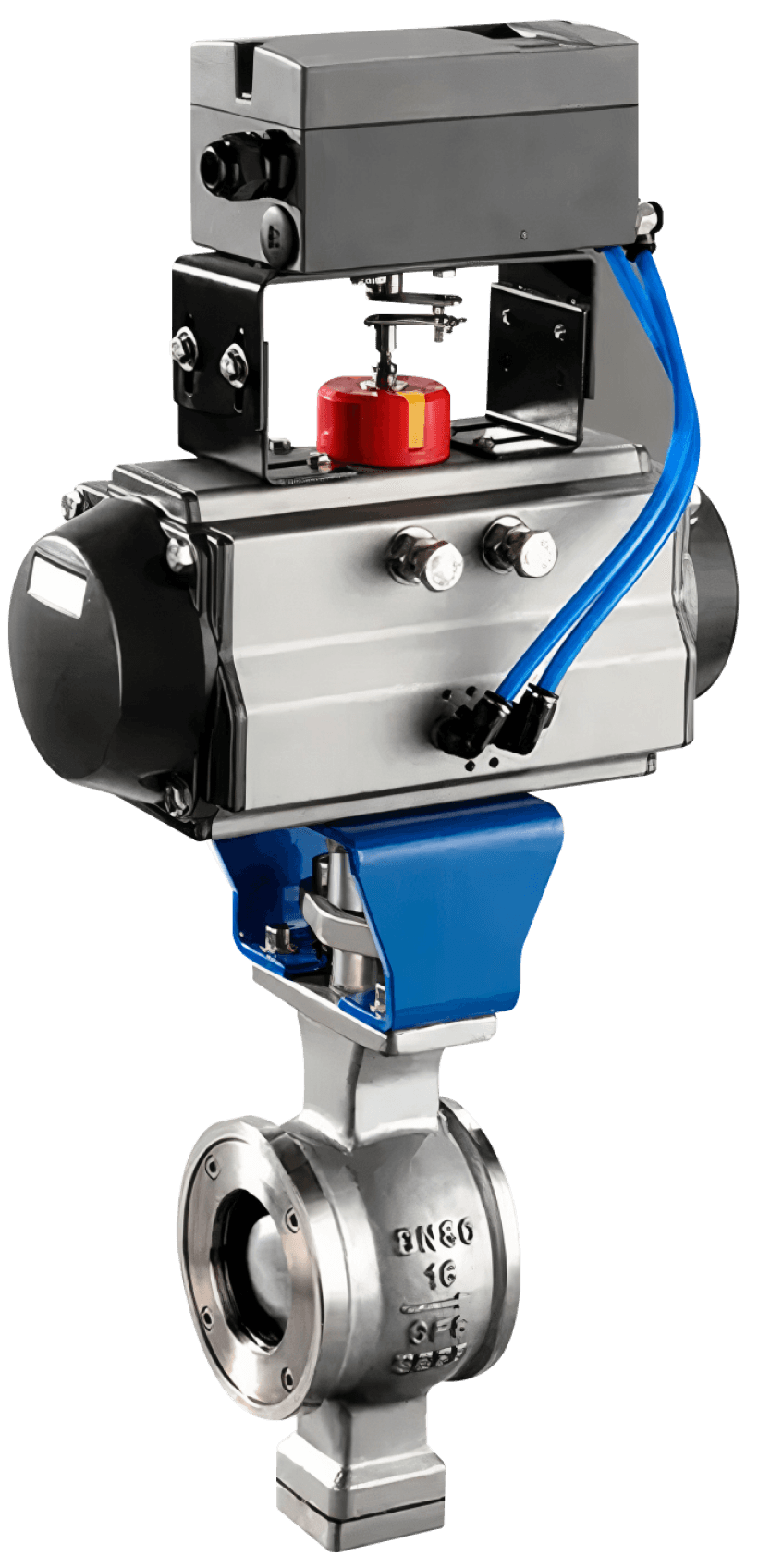

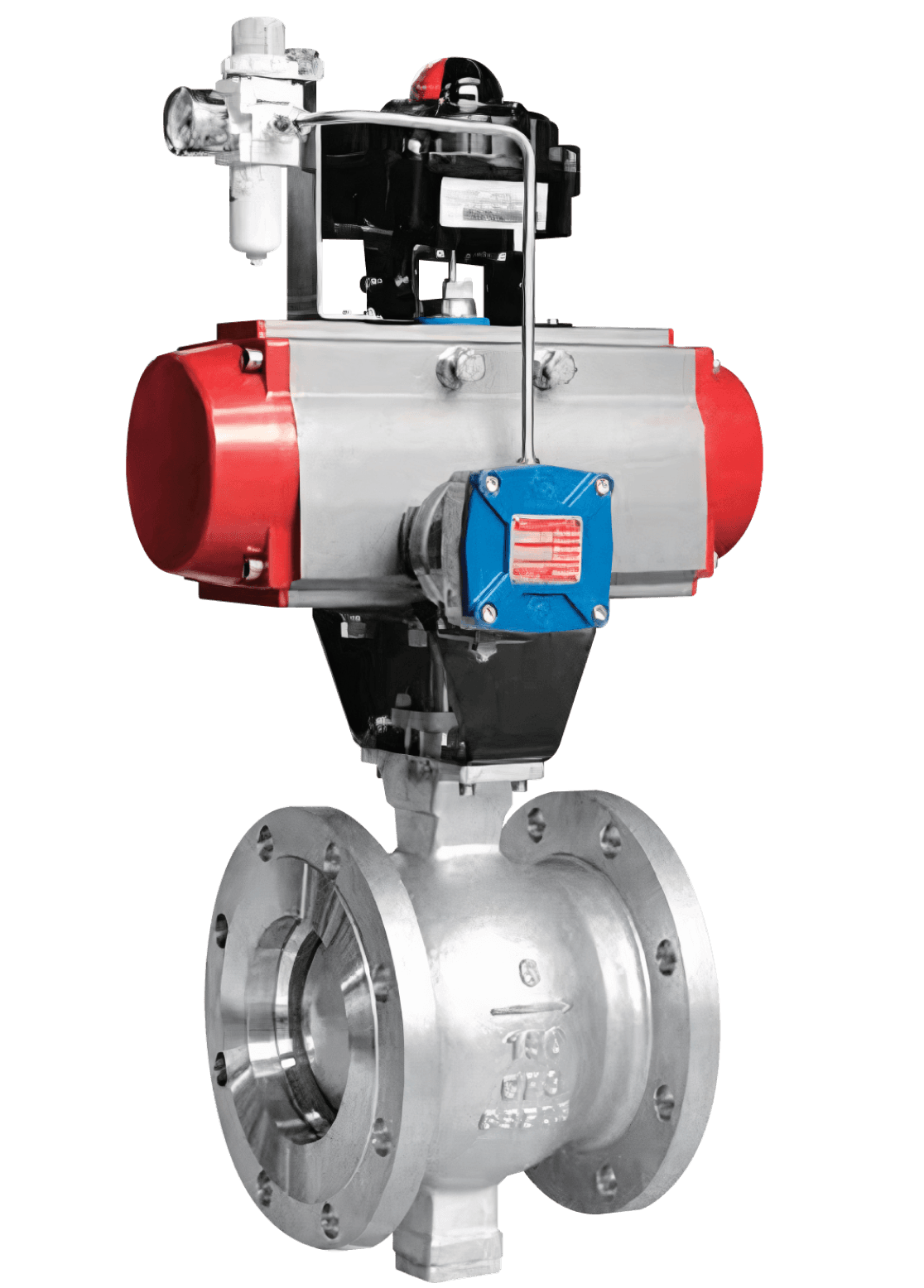

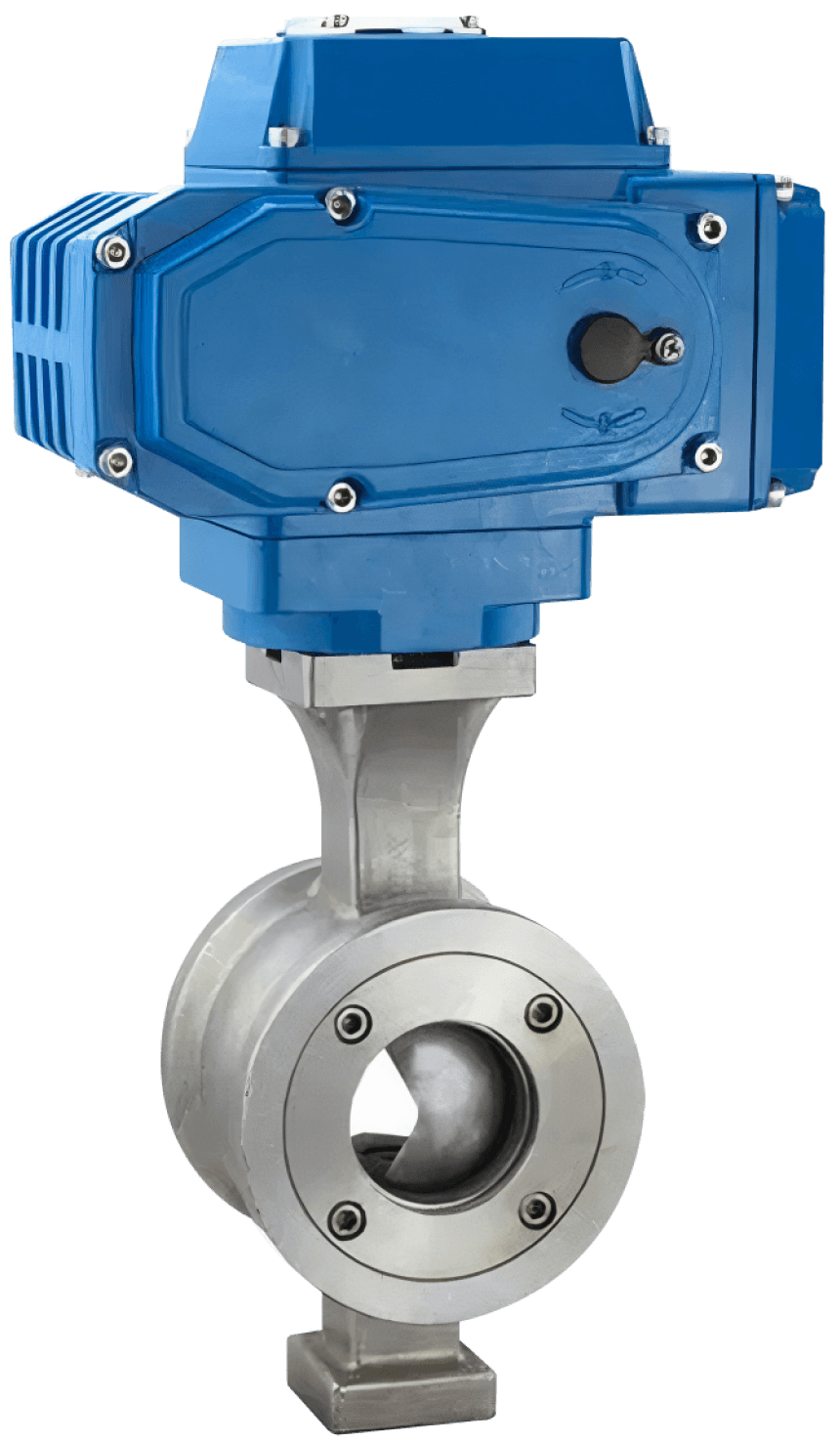

V-Type

Production Range

NPS 2"–48" (DN 50 – 1200),
Class 150 – 2500 (PN 6 – PN 420) / up to 425°C

NPS 2"–48" (DN 50 – 1200), Class 150 – 2500 (PN 6 – PN 420) / up to 425°C

Standard & Specification

API 6D, GB/T 19672 & 12237 ISO 17292
Testing: API 598, ASME B16.34, GB/T 13927 & 26480, JB/T 9092, ISO 5208 & 15848

Connection

Flange, Butt Weld

Operation

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Material

CS, SS, AS, Special Materials, Chrome-molybdenum Steel

DBB (Double Block and Bleed Valve)

Production Range

NPS 2"–48" (DN 50 – 1200), Class 150 – 2500

Standard & Specification

API 6D, ASME B16.34 | Face to Face: API 6D, ASME B16.10
Testing: API 598 & 6FA & 607 & 6D, ASME B16.34

API 6D, ASME B16.34
Face to Face: API 6D, ASME B16.10

Testing: API 598 & 6FA & 607 & 6D, ASME B16.34

Connection

Flange (ASME B16.5), Butt-Weld (ASME B16.25), RF (Raised Face Flange), RTJ (Ring Type Joint Flange)

Material

NACE MR0175

Talk to our Specialist.

Our team will get in touch with you shortly. We are ready to discuss your needs and any questions you might have in detail.

Talk to our Specialist.

Our team will get in touch with you shortly.
We are ready to discuss your needs and any questions
you might have in detail.

Talk to our Specialist.

Our team will get in touch with you shortly. We are ready to discuss your needs and any questions you might have in detail.

Talk to our Specialist.

Our team will get in touch with you shortly. We are ready to discuss your needs and any questions you might have in detail.
