Valve

Globe Valves Deliver Precise Flow Regulation and Tight Sealing

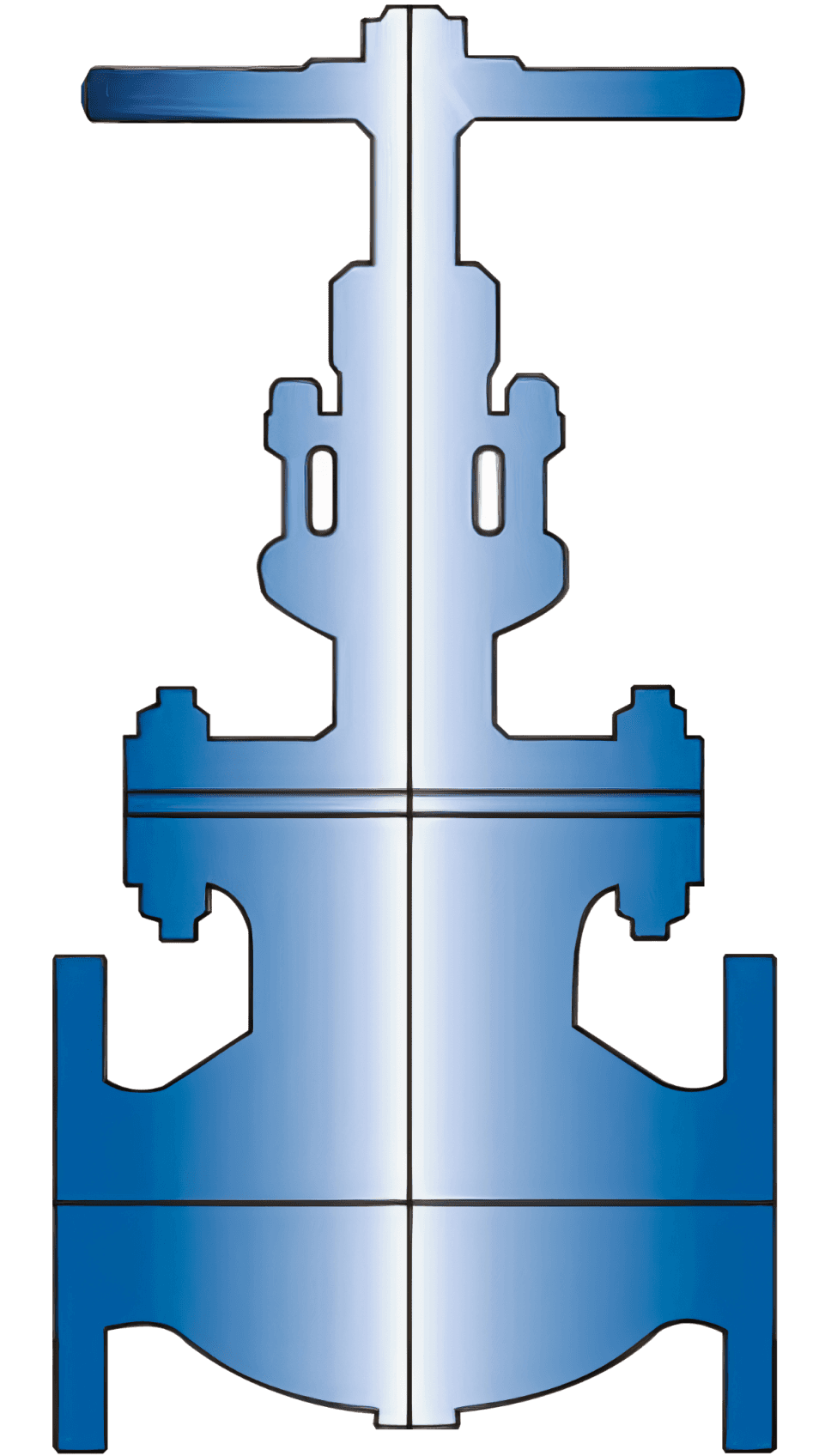

Globe Valve

Production Range

NPS 2" – 16" (DN 50 – 400),
Class 150 – 2500 (PN 10 – PN 420) / Up to 570°C

NPS 2" – 16" (DN 50 – 400), Class 150 – 2500 (PN 10 – PN 420) / Up to 570°C

NPS 2" – 16" (DN 50 – 400), Class 150 – 2500 (PN 10 – PN 420) / Up to 570°C

Standard & Specification

API 600, MSS SP42, GB/T 12235, BS 1873
Testing: API 598, GB/T 13927 & 26480, JB/T 9092

End Connection

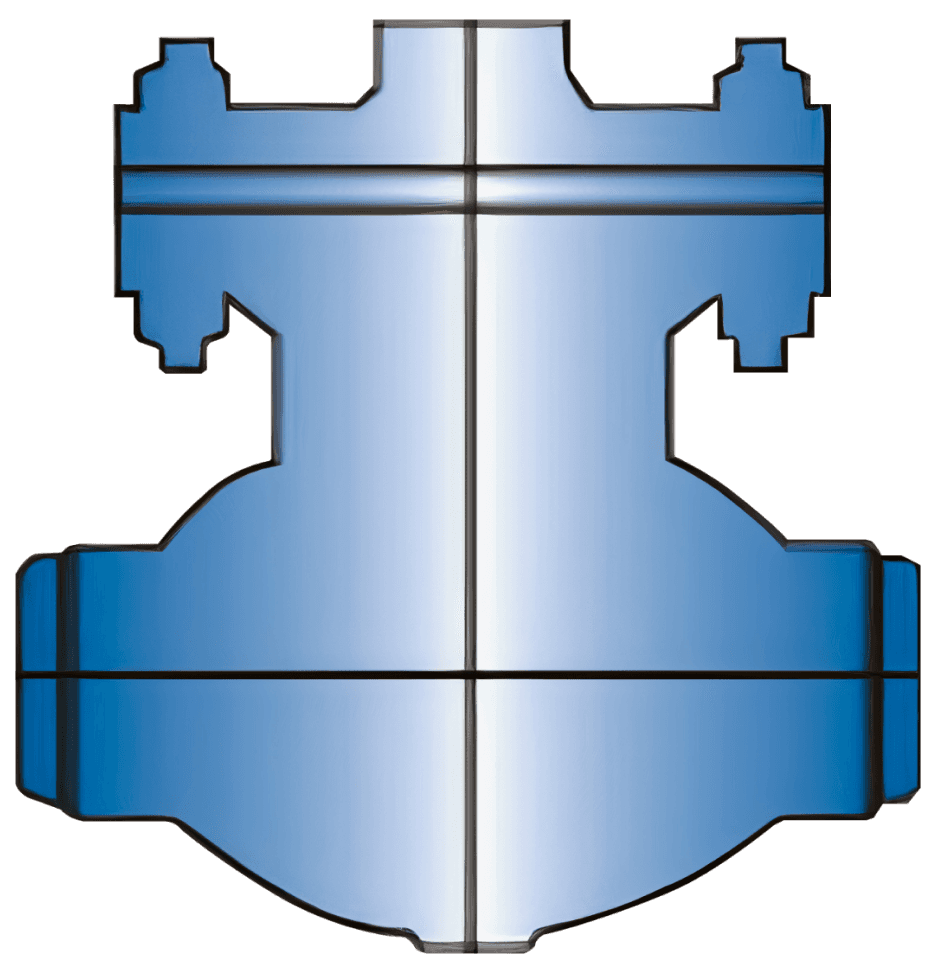

Butt Weld

Operating Mode

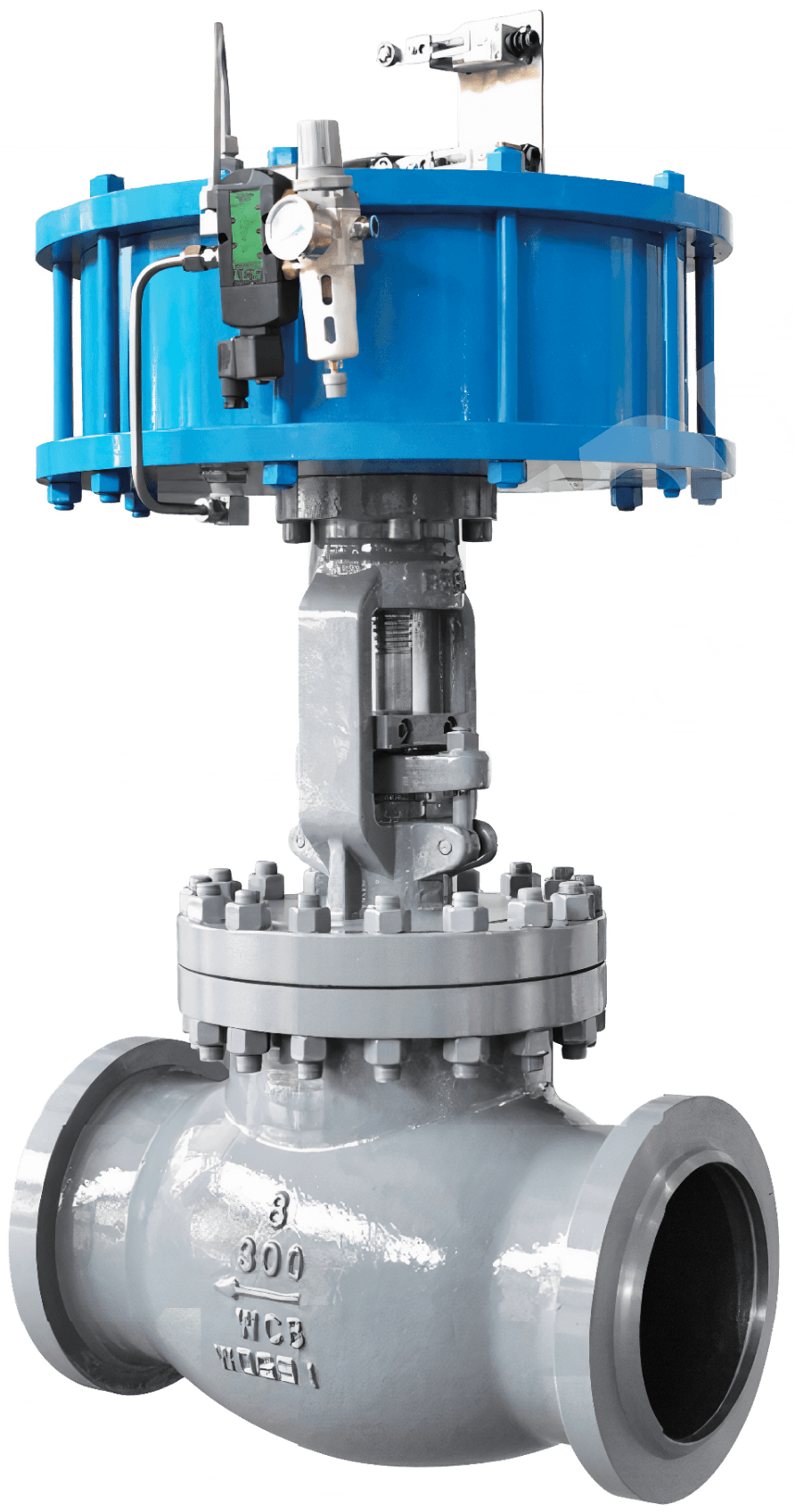

Manual, Pneumatic, Electric Actuator, Hydraulic Actuator

Materials

CS, SS, AS, Special Materials, Chrome-molybdenum Steel

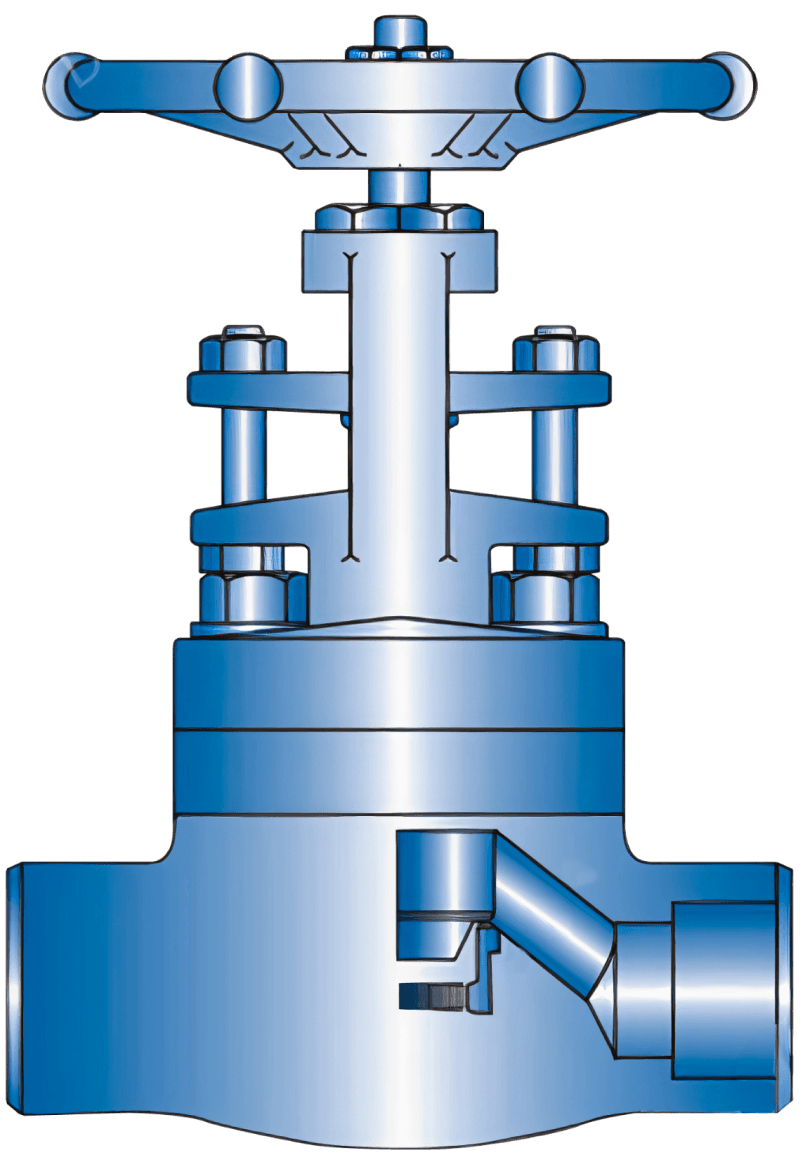

Forged Steel Globe Valve

Forged Steel

Flanged

Forged Steel

Flanged

Y pattern

Y pattern

Bolted & Welded Bonnet

Bolted & Welded Bonnet

| Main Materials

Body, Bonnet

ASTM A105N CS

Stem

ASTM A182 F6 AS

Seats

ASTM A182 F6/Stellite 6 Facing

Gasket

316 SS Spiral Wound Grafoil

| Key Features

Forged Steel Gate Valve, Outside Screw and York

Bolted, Welded & Union Bonnet, Rising Stem

Conventional Ports

Forged Steel

Production Range

NPS 1/2" – 2", CLASS 800/1500/2500

NPS 1/2" – 2",
CLASS 800/1500/2500

NPS 1/2" – 2",
CLASS 800/1500/2500

Standard & Specification

API 602

End Connection

Thread (ASME B16.11), Socket,
Pipe Threads, G.P (ASME B1.20.1),
Butt-Weld (ASME B16.25)

Thread (ASME B16.11), Socket, Pipe Threads,
G.P (ASME B1.20.1), Butt-Weld (ASME B16.25)

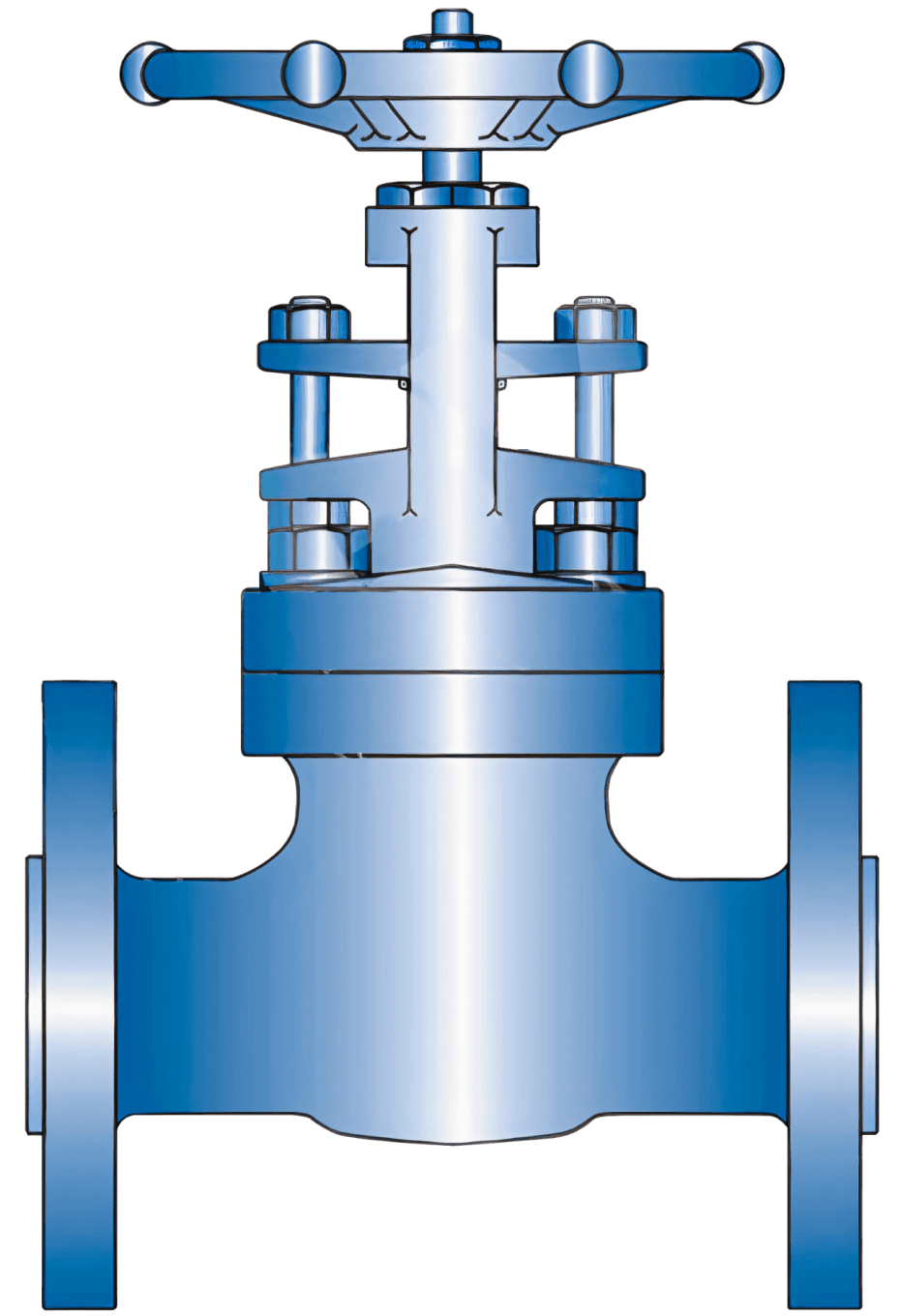

Flanged

Production Range

NPS 1/2" – 2", CLASS 150 - 1500

Standard & Specification

API 602 | Face to Face ASME/ANSI B16.10

API 602
Face to Face ASME/ANSI B16.10

API 602
Face to Face ASME/ANSI B16.10

End Connection

Fanged, Pipe Threads, G.P (ASME B1.20.1),
Thread (ASME B16.11),
Butt Weld (ASME B16.25)

Fanged, Butt Weld (ASME B16.25), Pipe Threads, G.P (ASME B1.20.1),
Thread (ASME B16.11)

Fanged, Butt Weld (ASME B16.25),
Pipe Threads, G.P (ASME B1.20.1),

Thread (ASME B16.11)

Fanged, Pipe Threads, G.P (ASME B1.20.1),
Thread (ASME B16.11), Butt Weld (ASME B16.25)

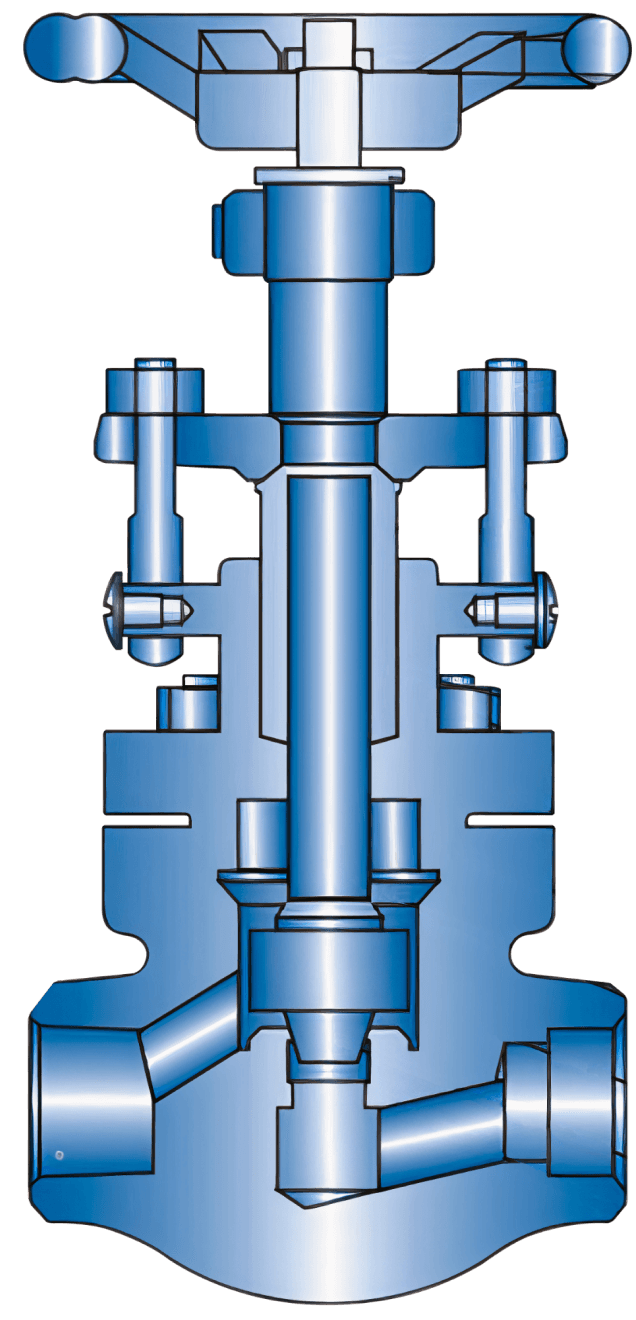

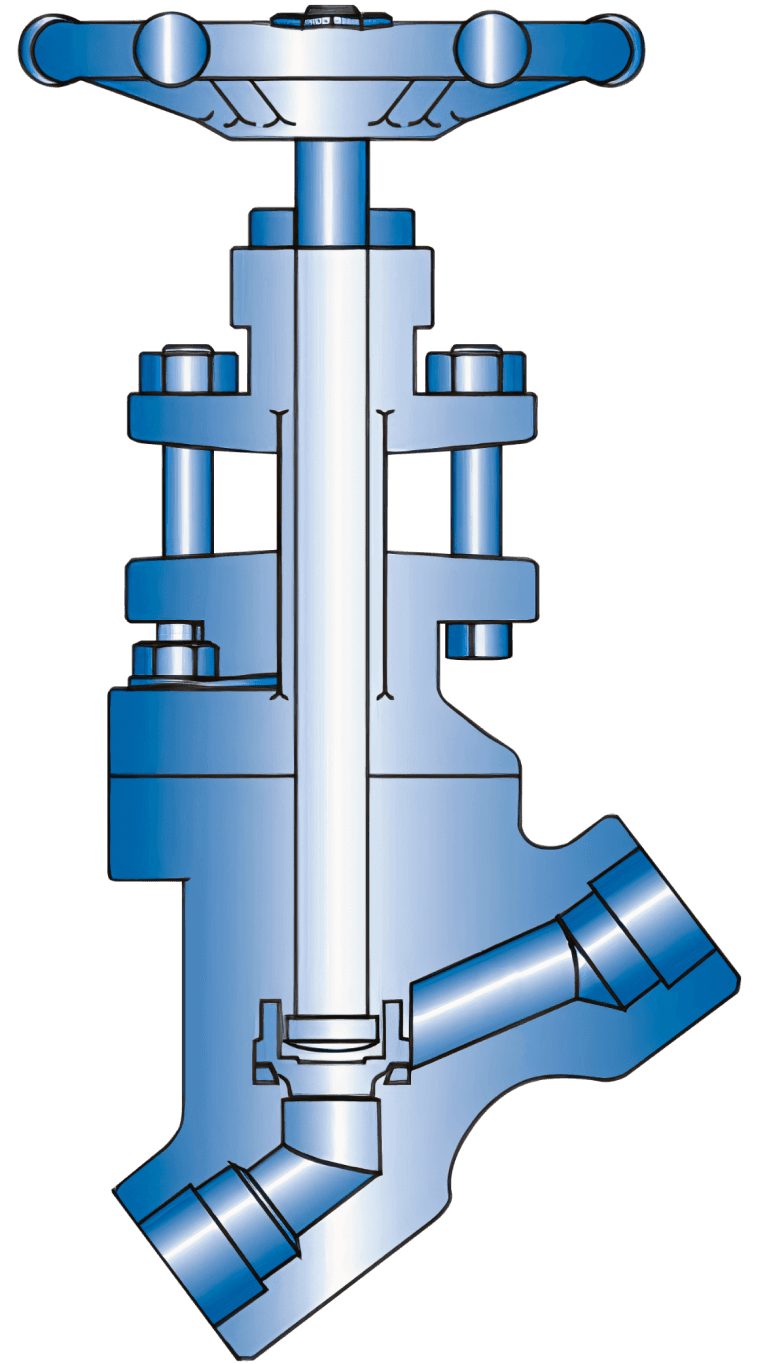

Y pattern

Production Range

NPS 1/2" – 68", CLASS 800/1500/2500

Standard & Specification

API 602

End Connection

Thread (ASME B16.11), Socket,
Pipe Threads, G.P (ASME B1.20.1),
Butt-Weld (ASME B16.25)

Thread (ASME B16.11), Socket, Pipe Threads,
G.P (ASME B1.20.1), Butt-Weld (ASME B16.25)

Bolted & Welded Bonnet

Production Range

CLASS 150 - 2500

Standard & Specification

API 598 & 602 | NACE MR-01-75 |
ASME/ANSI B16.34, B16.5, B16.10, B16.11, B1.20.1, B31.3 | MSS-SP -25, -6

API 598 & 602 | NACE MR-01-75 | MSS-SP -25, -6 | ASME/ANSI B16.34, B16.5, B16.10, B16.11, B1.20.1, B31.3

API 598 & 602 | NACE MR-01-75 |
MSS-SP -25, -6 | ASME/ANSI B16.34, B16.5, B16.10, B16.11, B1.20.1, B31.3

API 598 & 602 | NACE MR-01-75 | MSS-SP -25, -6 |
ASME/ANSI B16.34, B16.5, B16.10, B16.11, B1.20.1, B31.3

End Connection

Fanged, Butt Weld, Socket, Thread, Pipe Thread

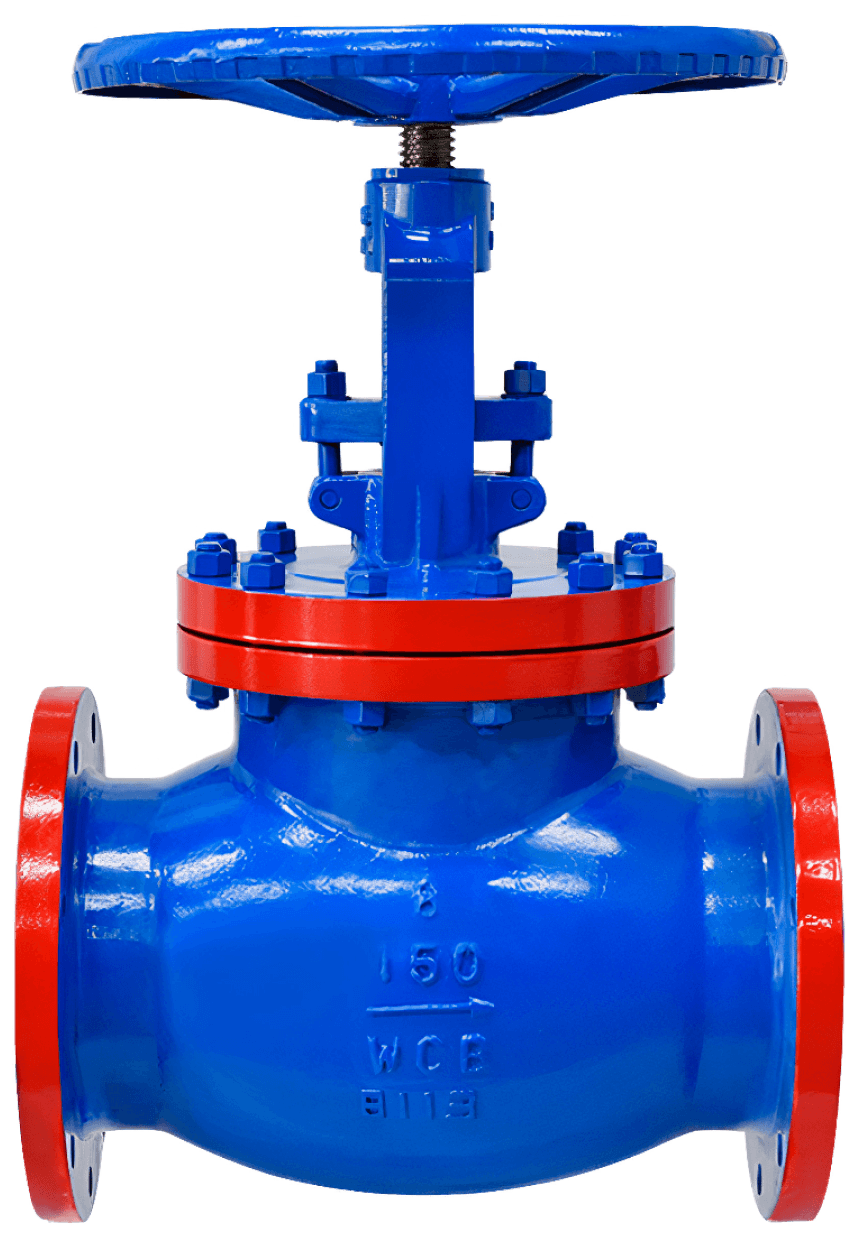

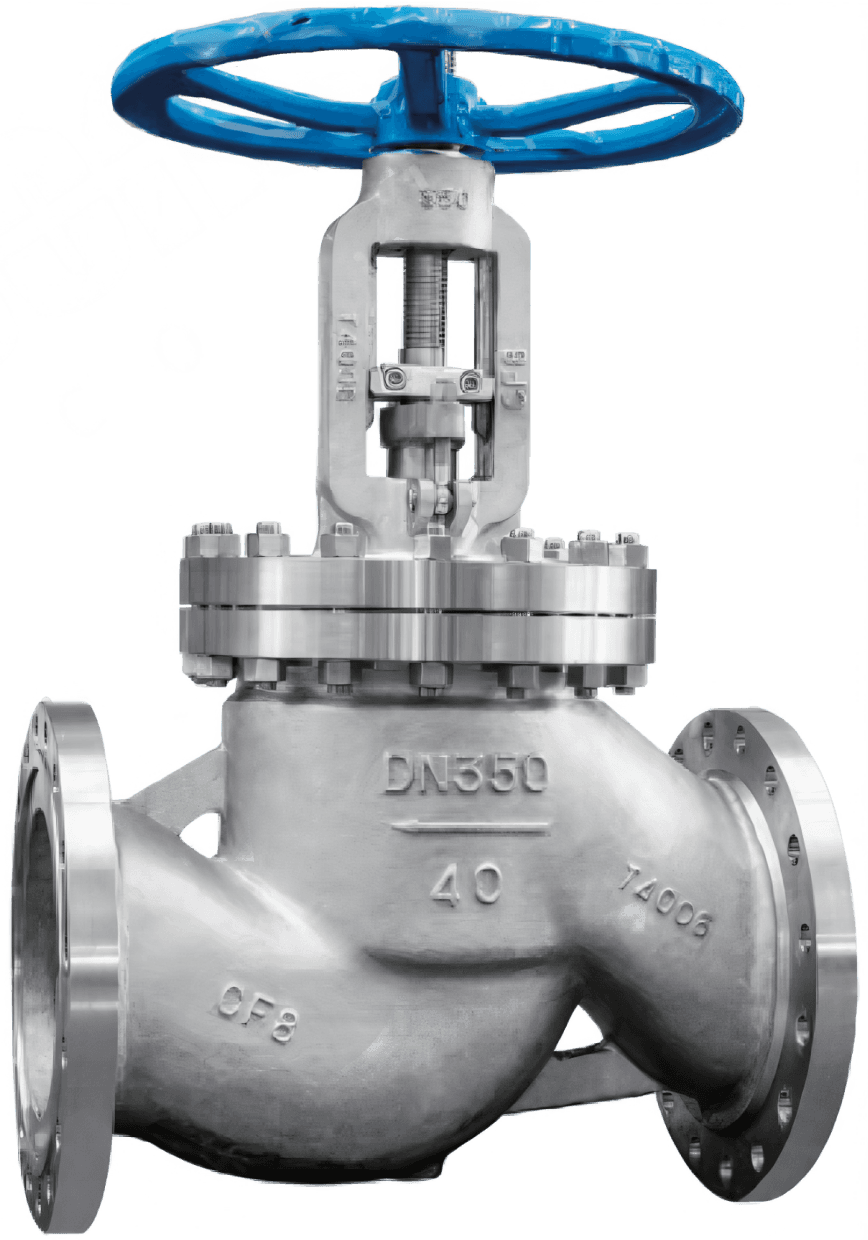

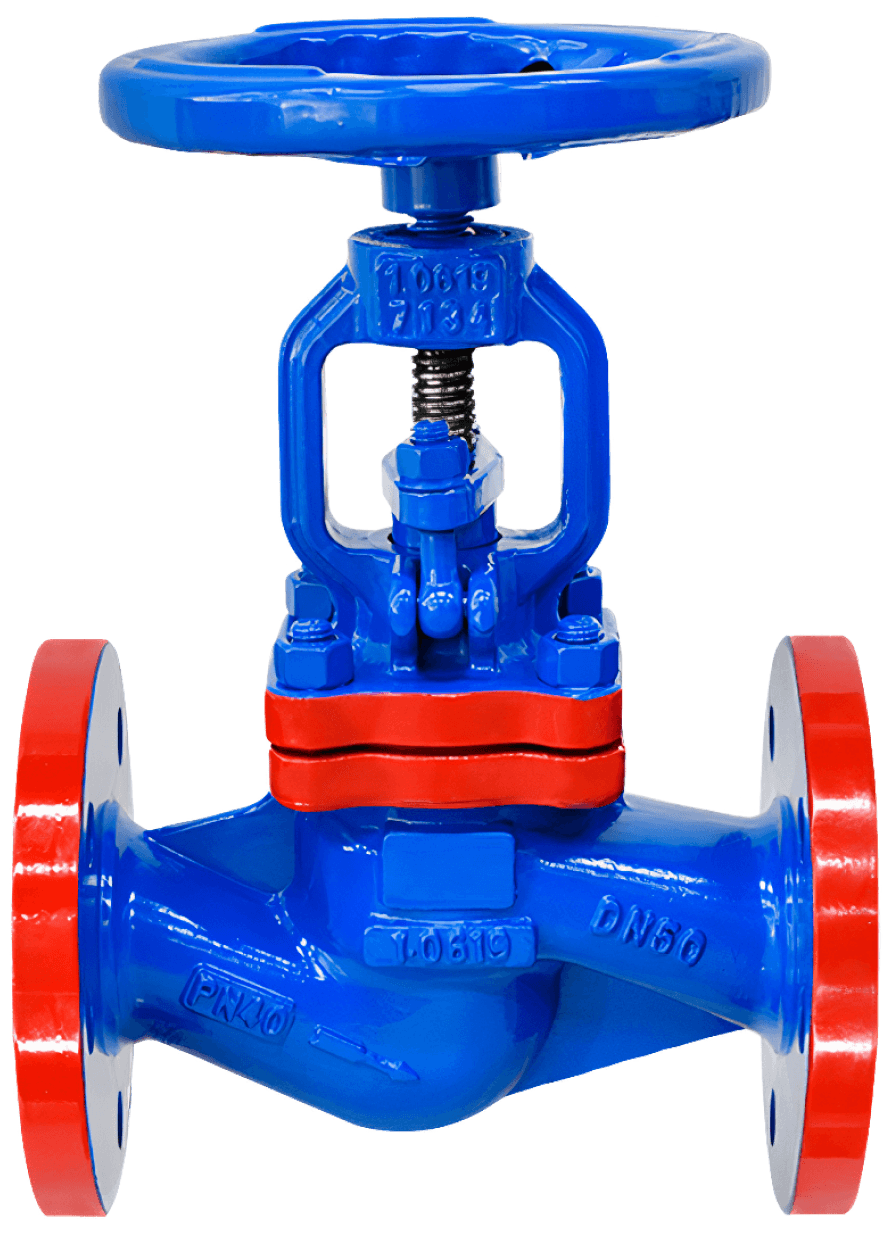

Cast Steel Globe Valve

Production Range

NPS1-1/2" – 20", CLASS 150 – 1500

Standard & Specification

API 600 | Face-to-Face: ASME B16.10
Testing : API 598

End Connection

Flange (ASME/ANSI B16.5), Thread, Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Thread,
Weld (ASME/ANSI B16.25)

| Main Materials

Body, Bonnet

CS: A216-WCB, A352-LCB, A217-WC6
AS: A217-WC9, C5, C12
SS: A351-CF8M

Disc

CS: A217CA15 / WCB+410 | A351 CF8M / LCB+316
AS: A217CA15 / WC9, C5, C12+410
SS: A351-CF8M

Stem

CS: A479-410, 316
AS: A479-410
SS: A479-316

Seat

CS: CS1020+410, A182-F304, A182 F11+STL
AS: A182 F5a+STL, F9+STL
SS: A479-316

| Key Features

Outside screw and yoke

Bolted bonnet, Rising Stem, Swivel Plug Disc

Available in welded of thread seat rings

Cryogenic

Standard & Specification

API 600 & 603 | Testing: API 598

| Key Features

Plug Type Disc: rotates freely, ensuring reliable shutoff
and easy field repair. Bottom-guided option available.

Plug Type Disc: rotates freely, ensuring reliable shutoff and easy field repair. Bottom-guided option available.

Plug Type Disc: rotates freely, ensuring reliable shutoff and easy field repair. Bottom-guided option available.

Plug Type Disc: rotates freely, ensuring reliable shutoff and easy field repair. Bottom-guided option available.

Available in Bottom Guided Discs

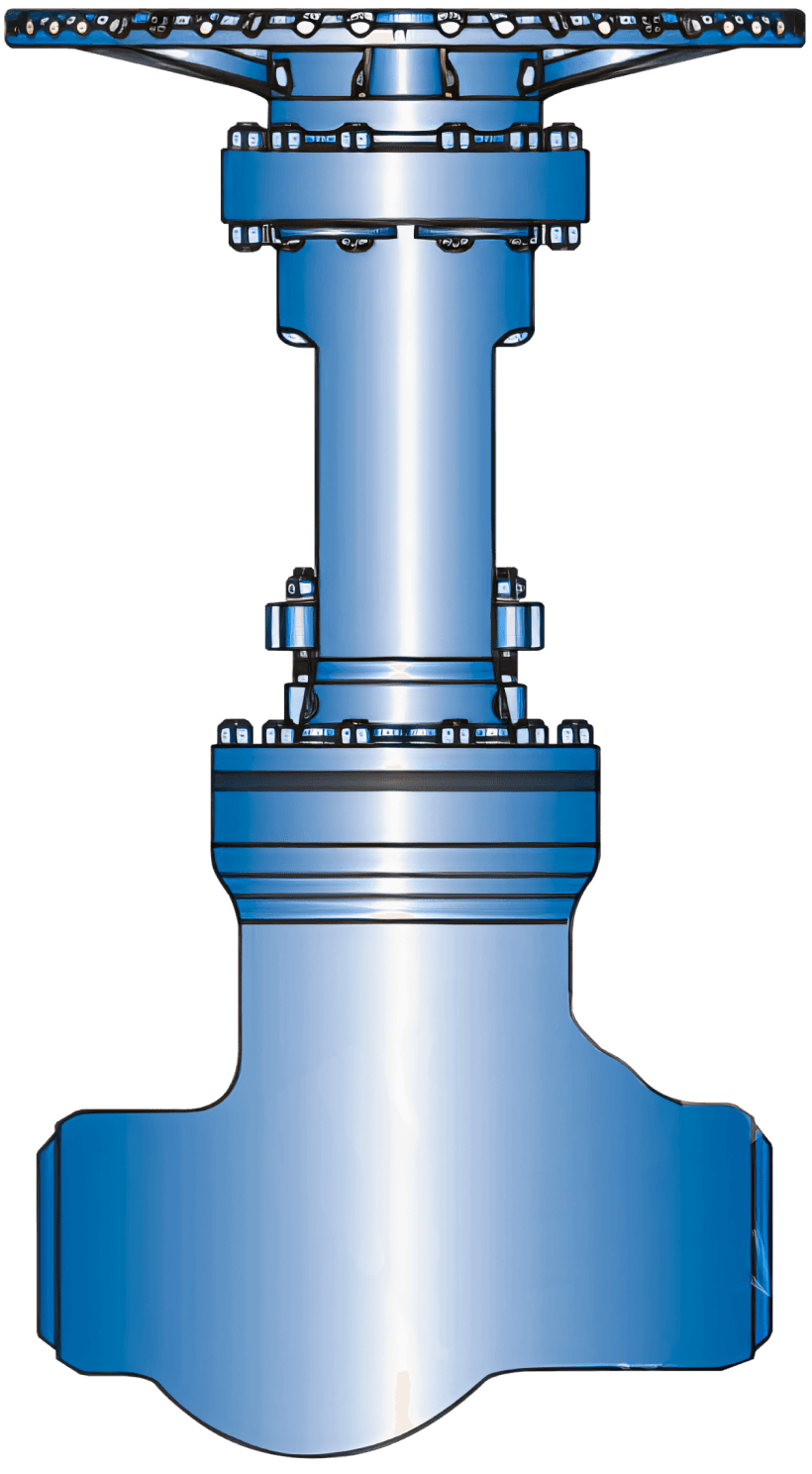

Pressure Seal Globe Valve

General

General

Y Pattern

Y Pattern

Stop Check (Optional)

Stop Check (Optional)

| Main Materials

Body, Bonnet

A216-WCB / A217-WC6, WC9, C5, C12 / A351-CF8M

Seat, Disc

(A216-WCB / A217-WC6, WC9, C5, C12 / A351-CF8M)+HF

Stem

A479-410, 316

Gasket

316 SS Spiral Wound Grafoil

| Key Features

Outside Screw and Yoke, Rising Stem, Plug / Guided Disc

Stellite Hard-faced Seating Surface

Undirectional Valves

Non-return Stop Sheck Option Available Upon Request

Live-Loaded Packing for Extended Service Life

General Pressure Seal

Production Range

NPS 1/2" – 2", CLASS 600 - 2500

Standard & Specification

ASME B16.34
Face-to-Face: ASME B16.10

End Connection

Flange (ASME/ANSI B16.5),
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

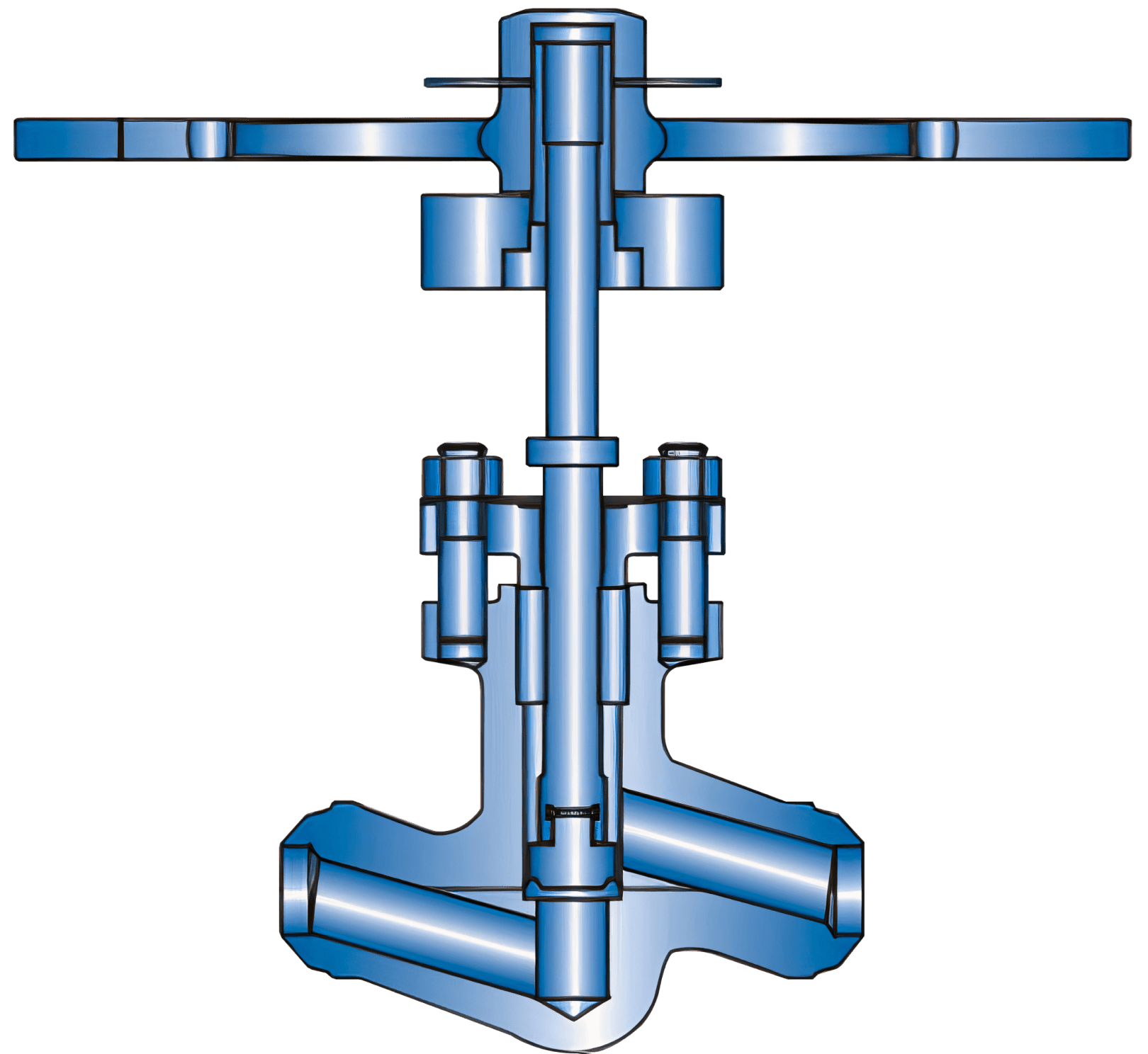

Y Pattern

Production Range

NPS 2-1/2" – 24", CLASS 900 - 2500

Standard & Specification

ASME B16.34, BS 1873
Face-to-Face: ASME B16.10

End Connection

Flange (ASME/ANSI B16.5),
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Stop Check (Optional Non-Return)

Production Range

NPS 2" – 24", CLASS 600 - 2500

Standard & Specification

ASME B16.34
Face-to-Face: ASME B16.10

End Connection

Flange (ASME/ANSI B16.5),
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)
