Valve

Plug Valves for Low-Maintenance Sealing and Reliable Isolation

Plug Valves for Low-Maintenance Sealing
and Reliable Isolation

Plug Valve

Our Plug Valves provide effortless operation and self-cleaning sealing technology,

ensuring leak-free performance even in high-cycling or challenging flow conditions.


Ideal for industries that demand easy valve operation, minimal maintenance, and consistent sealing integrity.

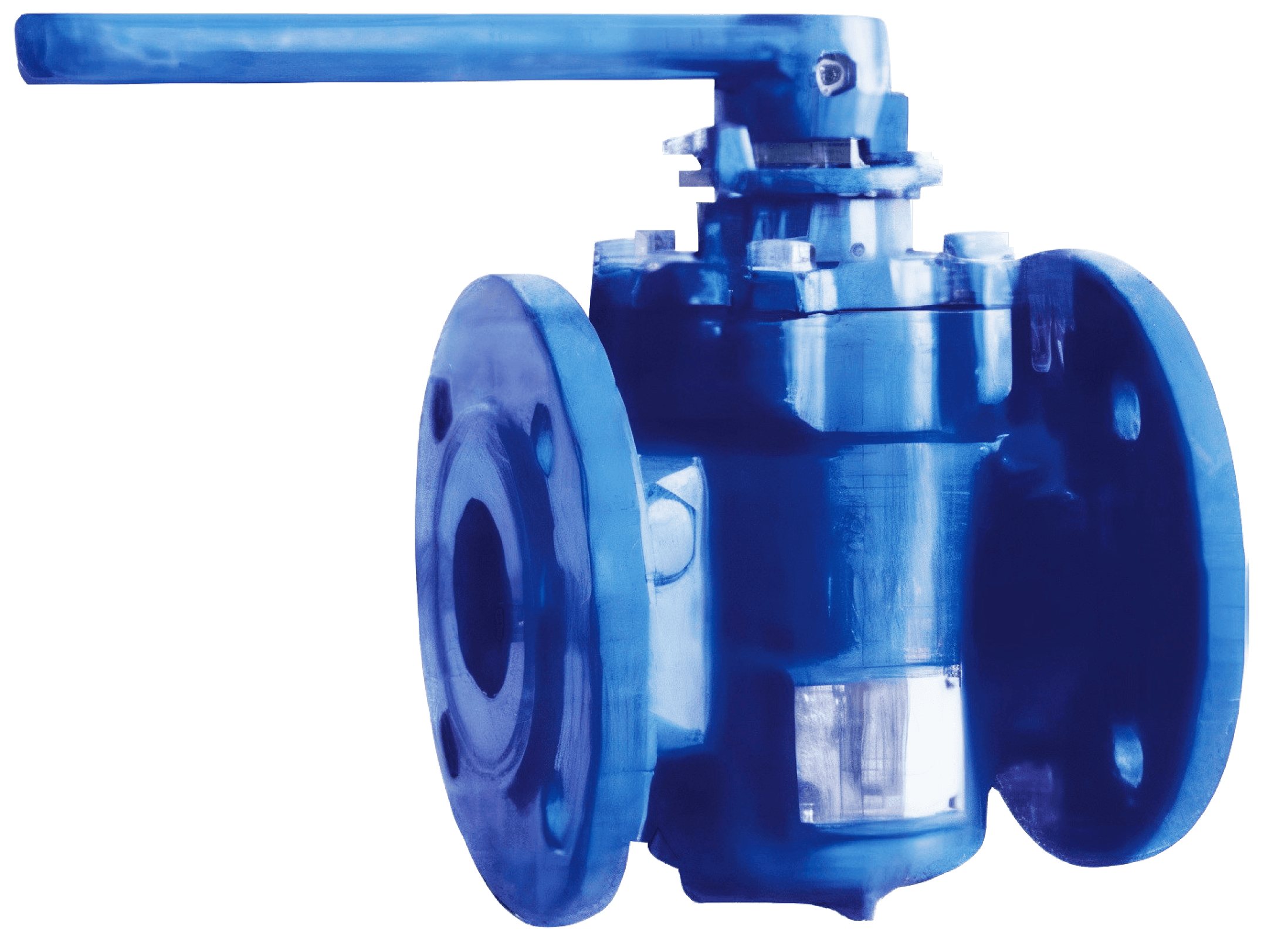

Sleeve Type Plug Valve

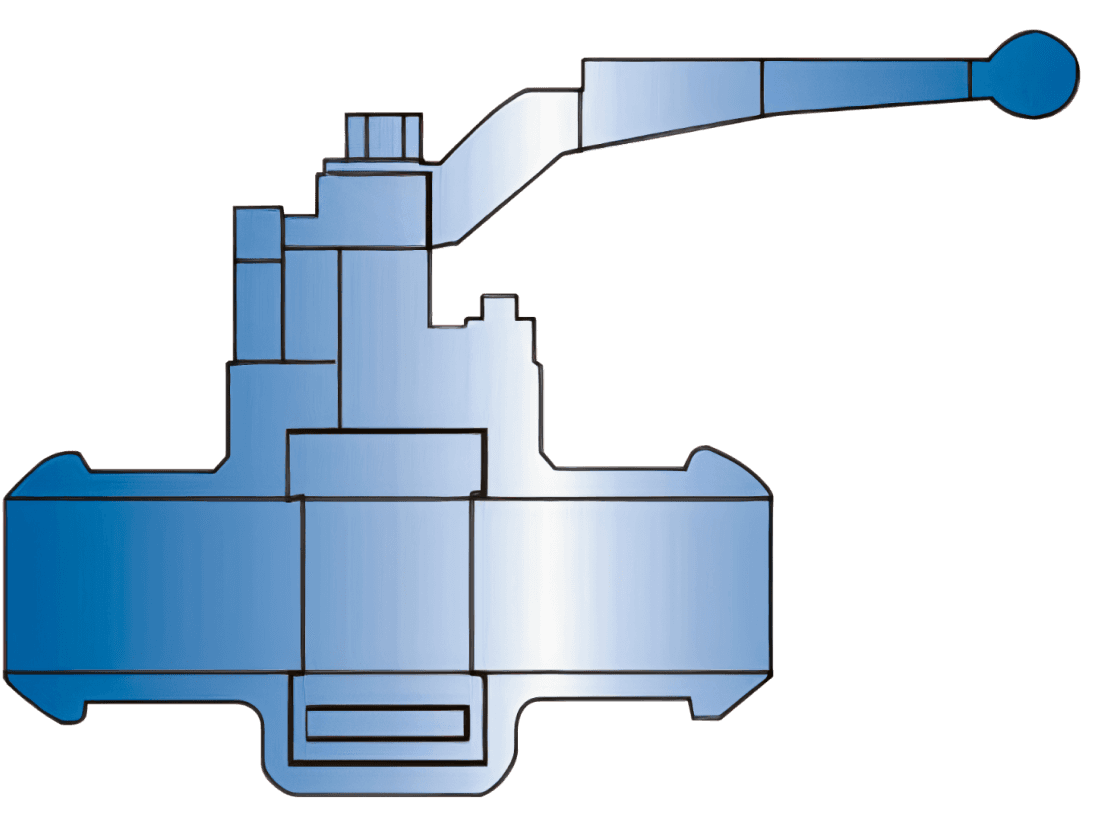

Lever Type

Lever Type

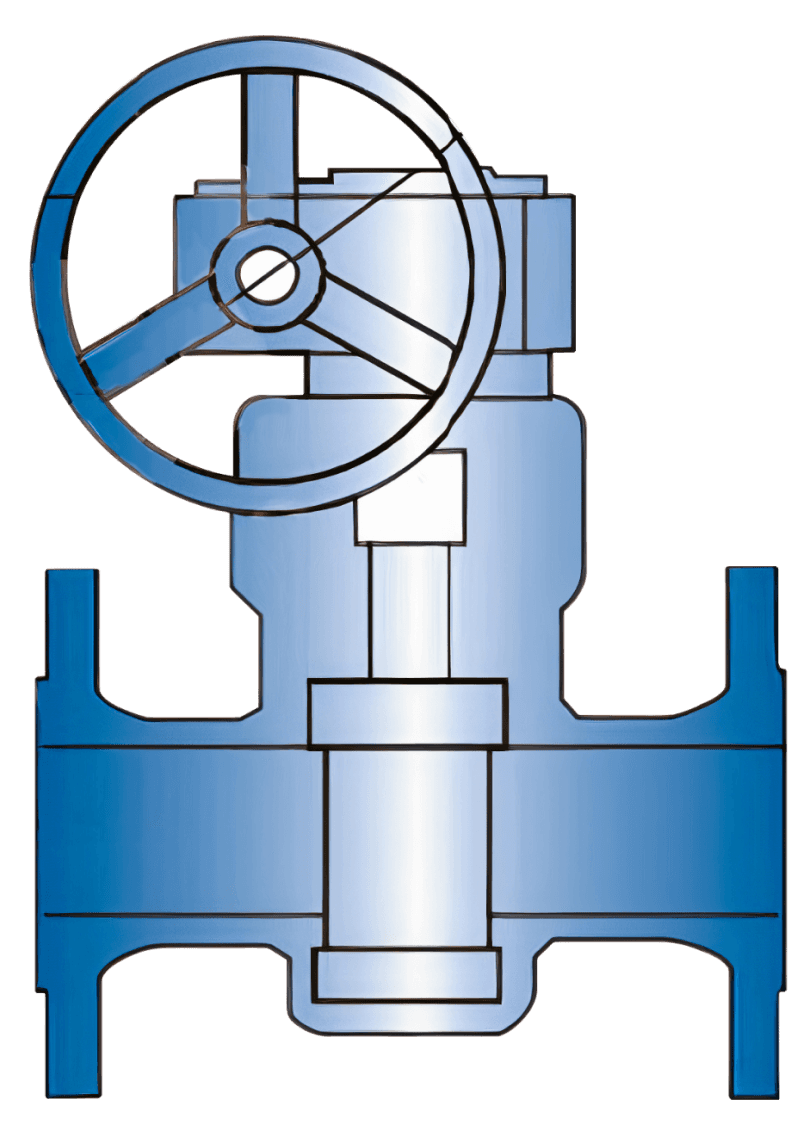

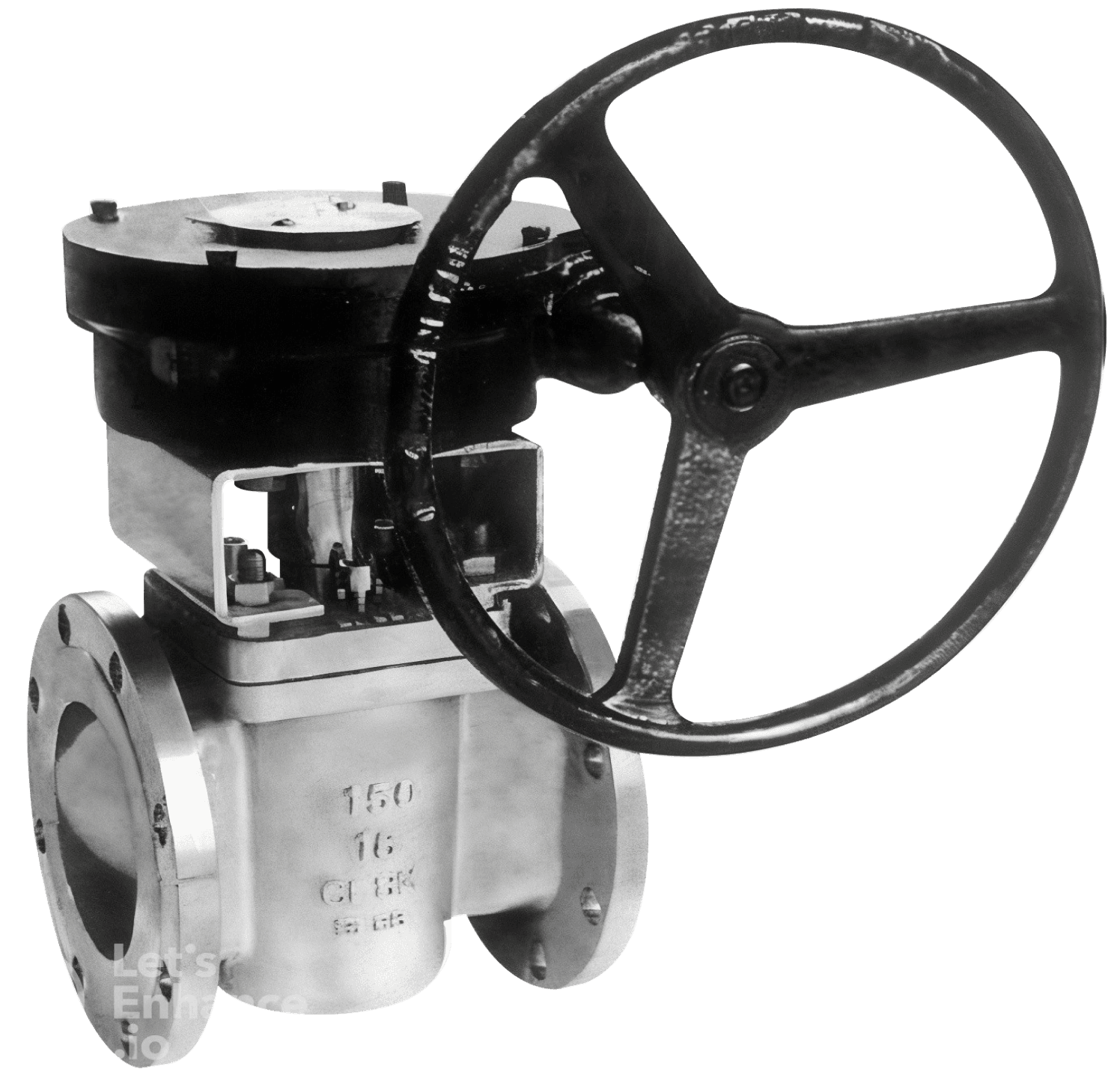

Worm Gear Type

Worm Gear Type

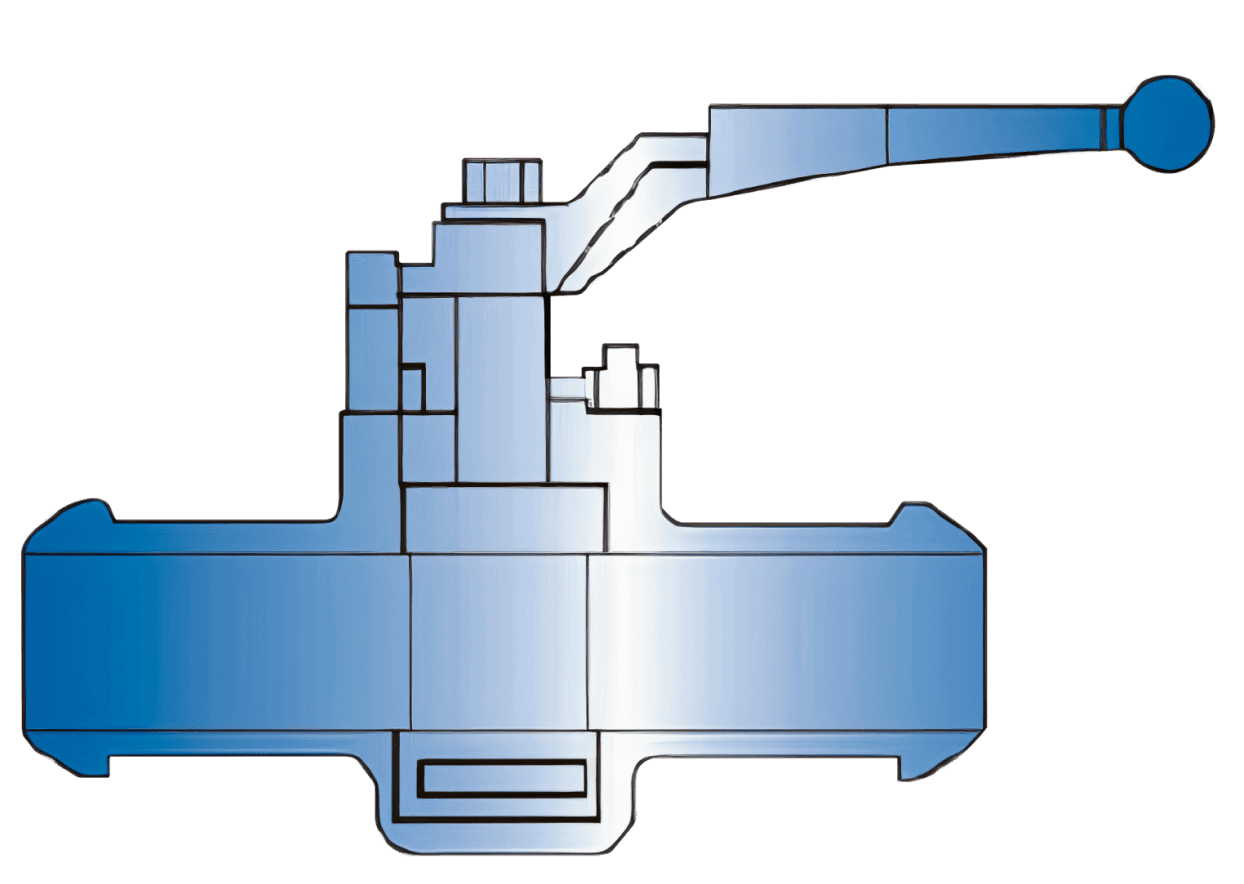

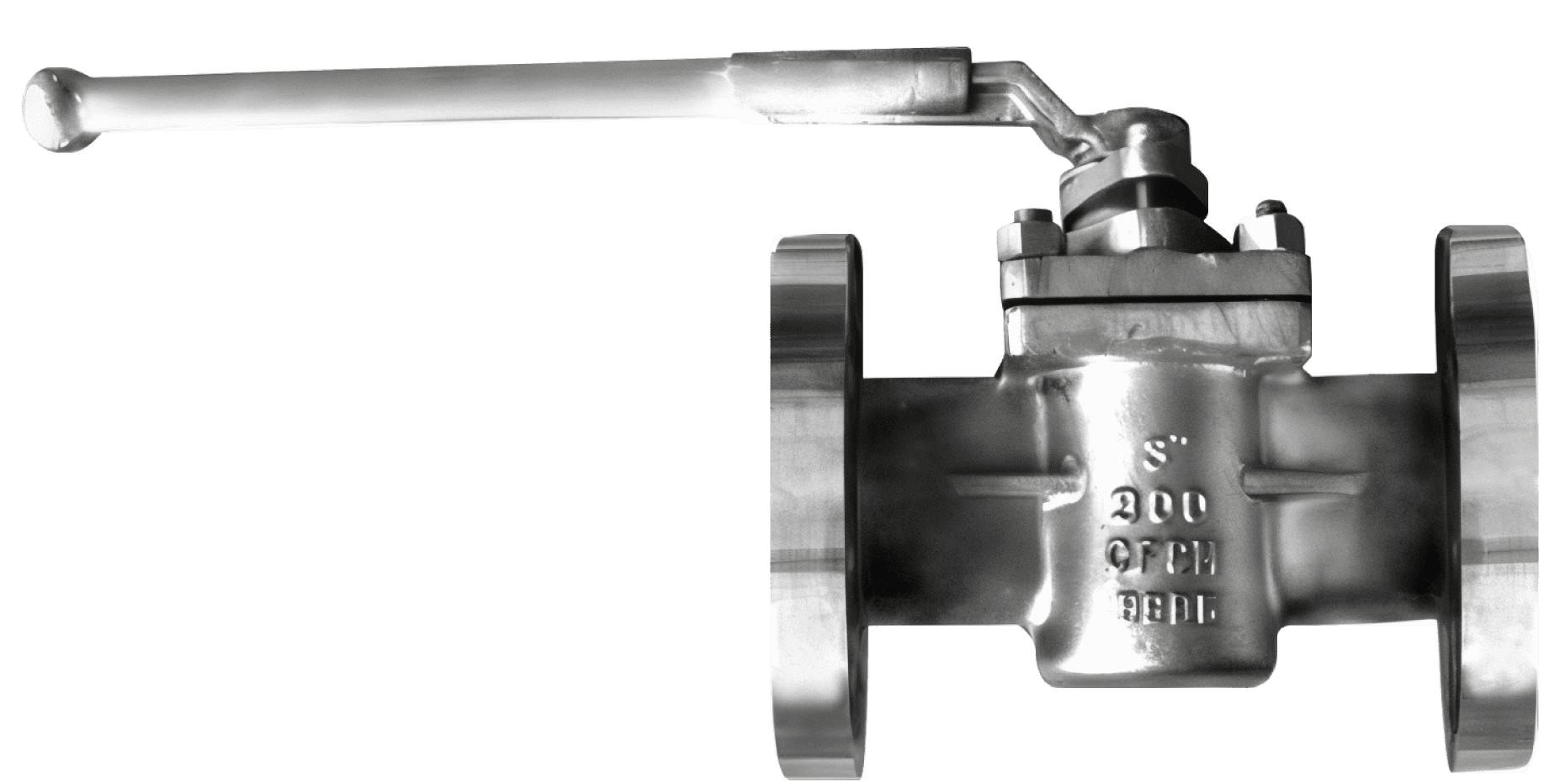

Lever Type Soft Sealing

Production Range

DN15 – DN350 | Class 150 / 300 / 600 / 900 | -29°C to +180°C

Standard & Specification

API 599 & 6D | Face to Face: ASME B16.10
Test: API 598 & 6D

Operating Mode

Wrench Wheel, Worm/Worm Gear, Pneumatic, Electric-actuated

| Main Materials

Body

ASTM A216-WCB / A217-WC1, WC6, WC9, C5 / A351-CF8, CF8M, CF3, CF3M

Plug

ASTM A 182 - Gr.F6a/F22/F304/F316/F321/F304L/F316L

ASTM A 182 - Gr.F6a/F22/F304/ F316/F321/F304L/F316L

ASTM A 182 - Gr.F6a/F22/F304/F316/
F321/F304L/F316L

Sleave

PTFE

Gasket

Flexible Graphite + Stainless Steel, PTFE

| Key Features

Quick and easy manual operation

Suitable for low to medium pressure applications

Compact and lightweight design

Ideal for general industrial use

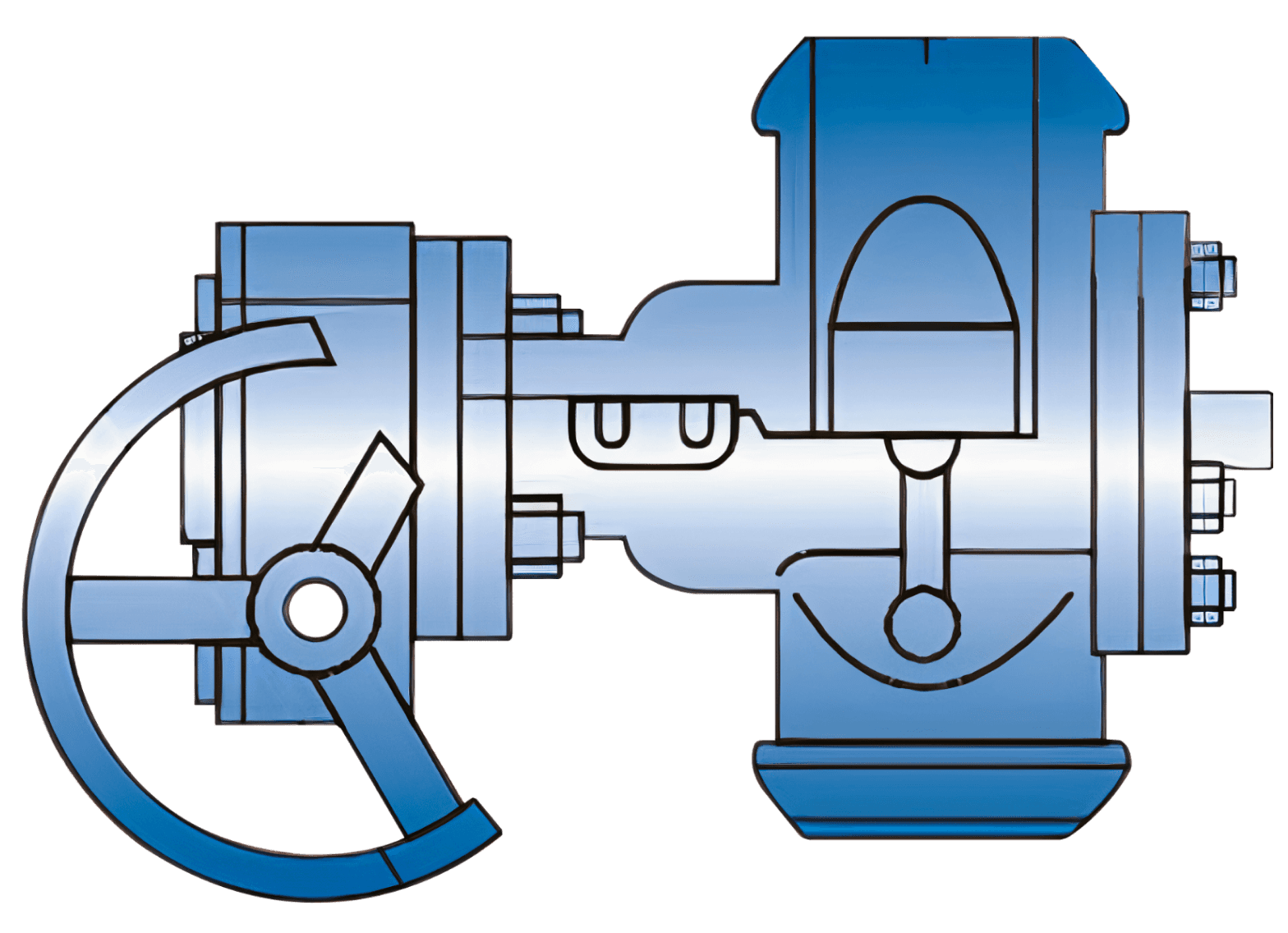

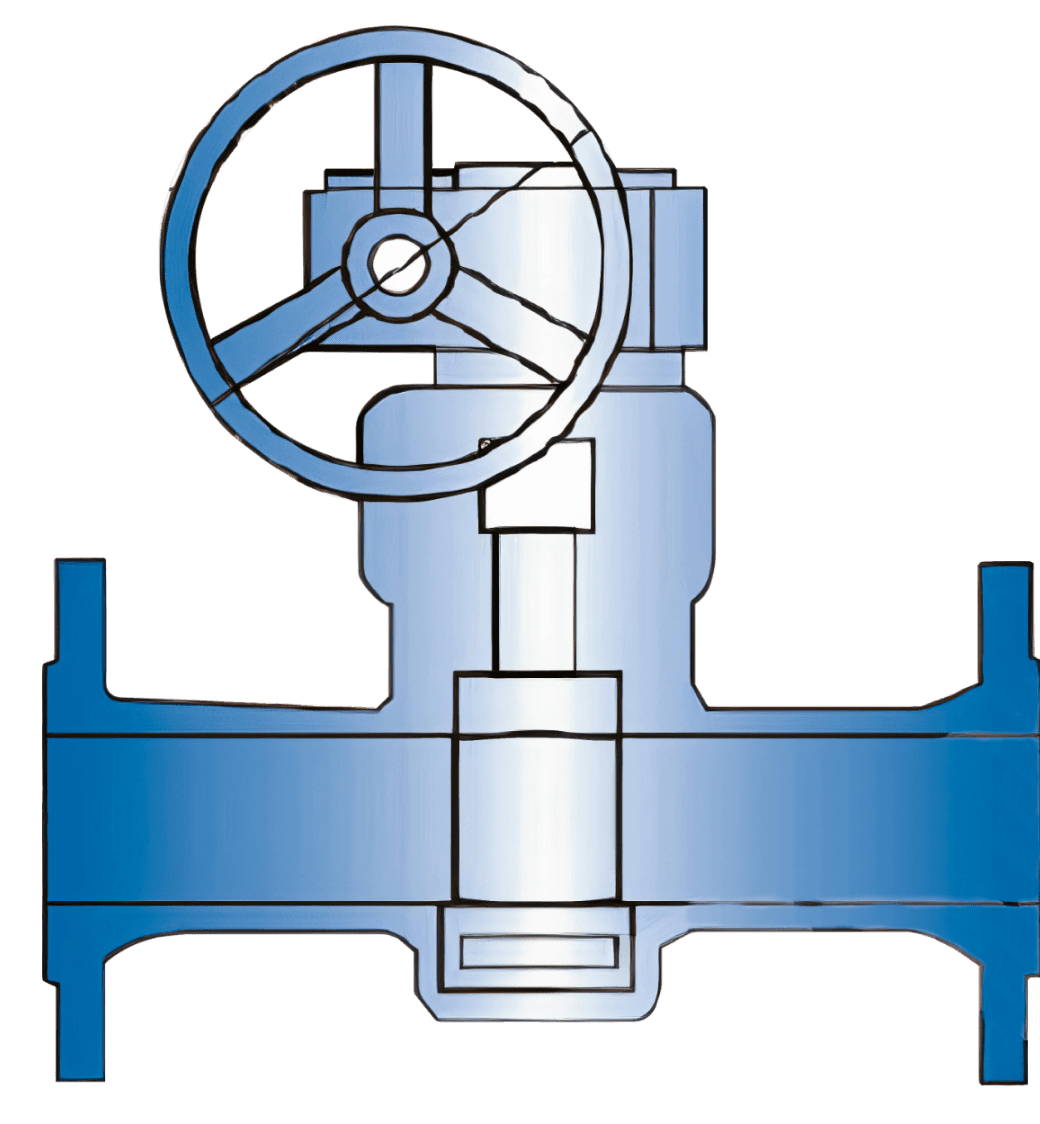

Worm Gear Type Soft Sealing

Production Range

DN15 – DN350 | PN16 - PN160 | -29°C to +180°C

DN15 – DN350 | PN16 - PN160
-29°C to +180°C

Standard & Specification

API 599 & 6D | Face to Face: DIN 3202F1
Test: DIN 3230

Operating Mode

Wrench Wheel, Worm/Worm Gear, Pneumatic, Electric-actuated

| Main Materials

Body

GS-C25 1.7363/1.4308/1.4306/1.4301

Plug

ASTM A 182 - Gr.F6a/F22/F304/F316/F321/F304L/F316L

ASTM A 182 - Gr.F6a/F22/F304/ F316/F321/F304L/F316L

ASTM A 182 - Gr.F6a/F22/F304/F316/ F321/F304L/F316L

Sleave

PTFE

Gasket

Flexible Graphite + Stainless Steel, PTFE

| Key Features

Smooth and stable operation for high-torque applications

Suitable for high-pressure and large-size pipelines

Extended durability and minimal operational force

Ideal for oil & gas, power plants, and high-temperature processes

ANSI Standard

ANSI Standard

DIN Standard

DIN Standard

| Key Features

Outside Screw and York, Bolted Cover

Resilient Seat Sleeved

ANSI Standard

Production Range

NPS 1/2" – 14" , CLASS 150 – 900

Standard & Specification

API 599, & 6D | Face-to-Face: ASME B16.10

API 599, & 6D
Face-to-Face: ASME B16.10

API 599, & 6D
Face-to-Face: ASME B16.10

End Connection

Flange (ASME/ANSI B16.5)
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Material

Carbon Steel

DIN Standard

Production Range

PN16- PN64, DN12-350

Standard & Specification

DIN | Face-to-Face: DIN 3202 F1
End Flange: DIN 2543 - 2549
Butt Weld: EN 12627

DIN | Face-to-Face: DIN 3202 F1
End Flange: DIN 2543 - 2549 | Butt Weld: EN 12627

End Connection

Flange (ASME/ANSI B16.5)
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Material

Carbon Steel

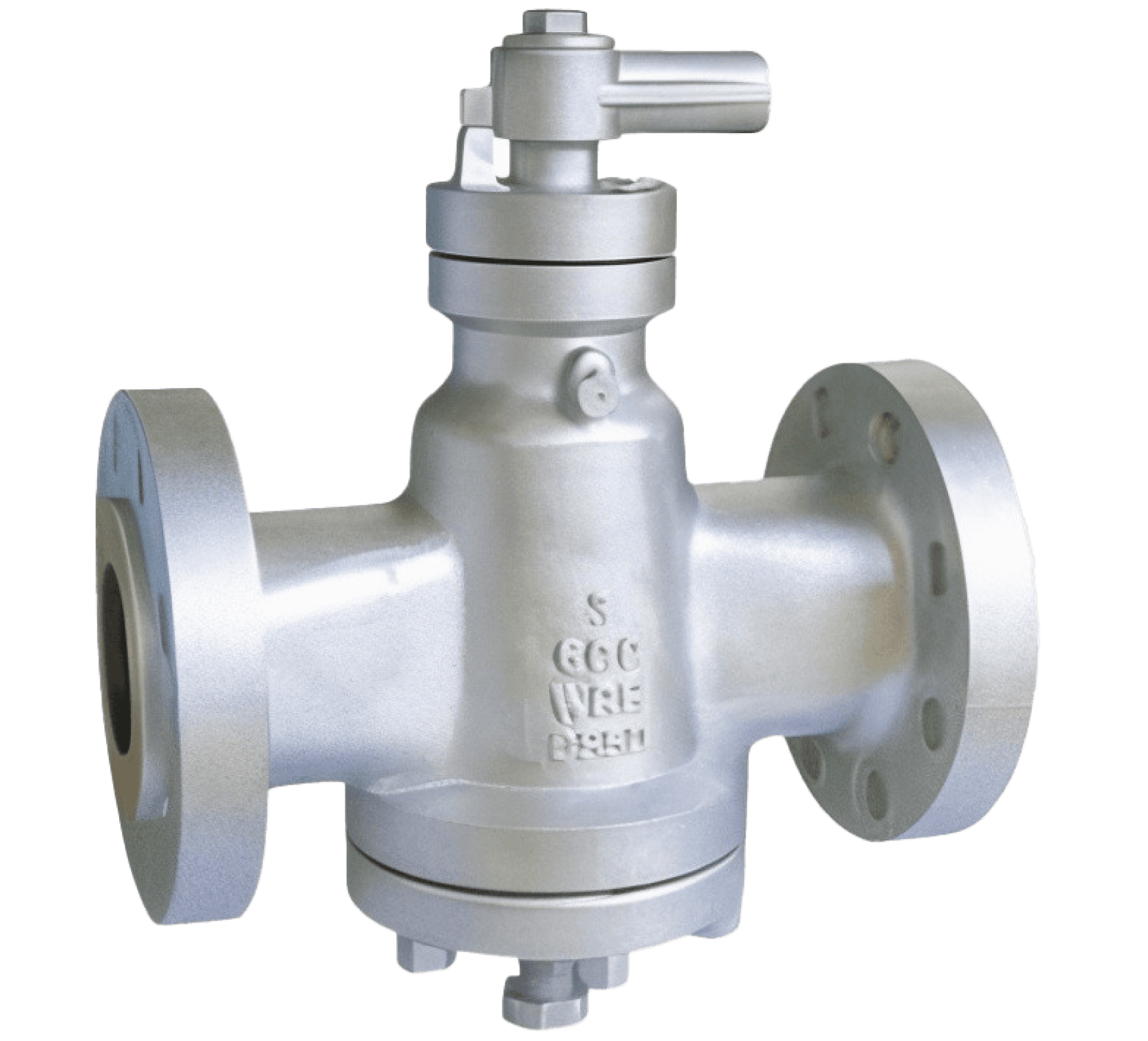

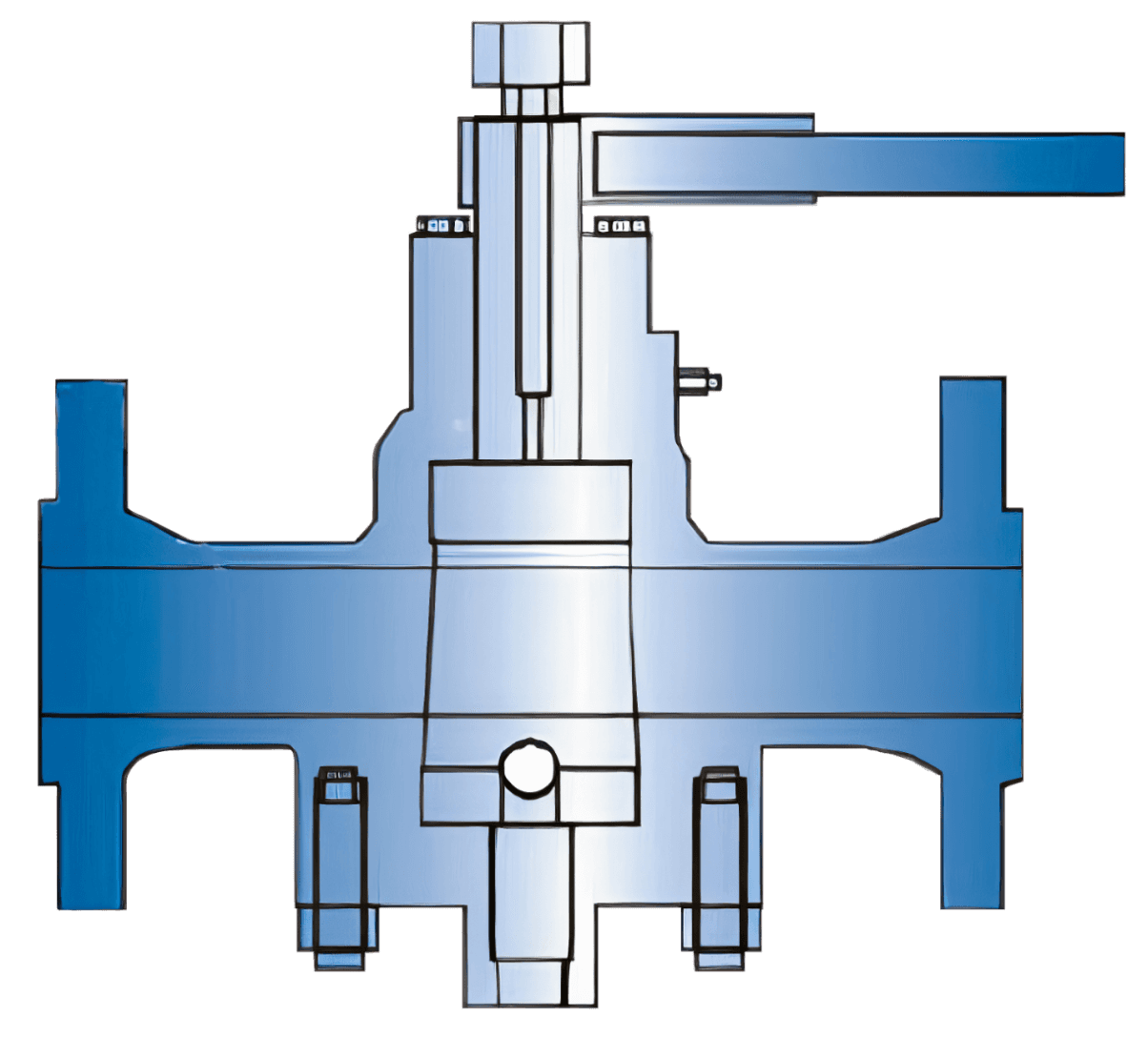

Inverted Pressure Balance Lubricated Plug Valve

Production Range

NPS 1/2" – 14" (DN 15 – 350), CLASS 150 – 1500 / -29°C to 80°C

NPS 1/2" – 14" (DN 15 – 350),
CLASS 150 – 1500 / -29°C to 80°C

Standard & Specification

API 599, & 6D, ASME B16.5 | Face-to-Face: ASME B16.10
Testing: API 598 & 6D

API 599, & 6D, ASME B16.5
Face-to-Face: ASME B16.10

Testing: API 598 & 6D

End Connection

Flange (ASME/ANSI B16.5)
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5),
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Operating Mode

Hand-Operated, Electric-Actuated

| Main Materials

Body

ASTM A216-WCB / A217-WC1, WC6, WC9, C5, / A351-CF8, CF8M, CF3, CF3M

Plug, Stem

ASTM A182-F6a / F22 / F304, F316, F321, F304L, F316L

Gasket

Flexible Graphite + Stainless Steel, PTFE

| Key Features

Cast Steel Plug Valve

Outside Screw and York, Bolted Cover

Oil Groove Lubricated Sealing: Improved sealing & leak prevention & extended lifespan

Balanced Pressure Design: Stable performance with minimal effort

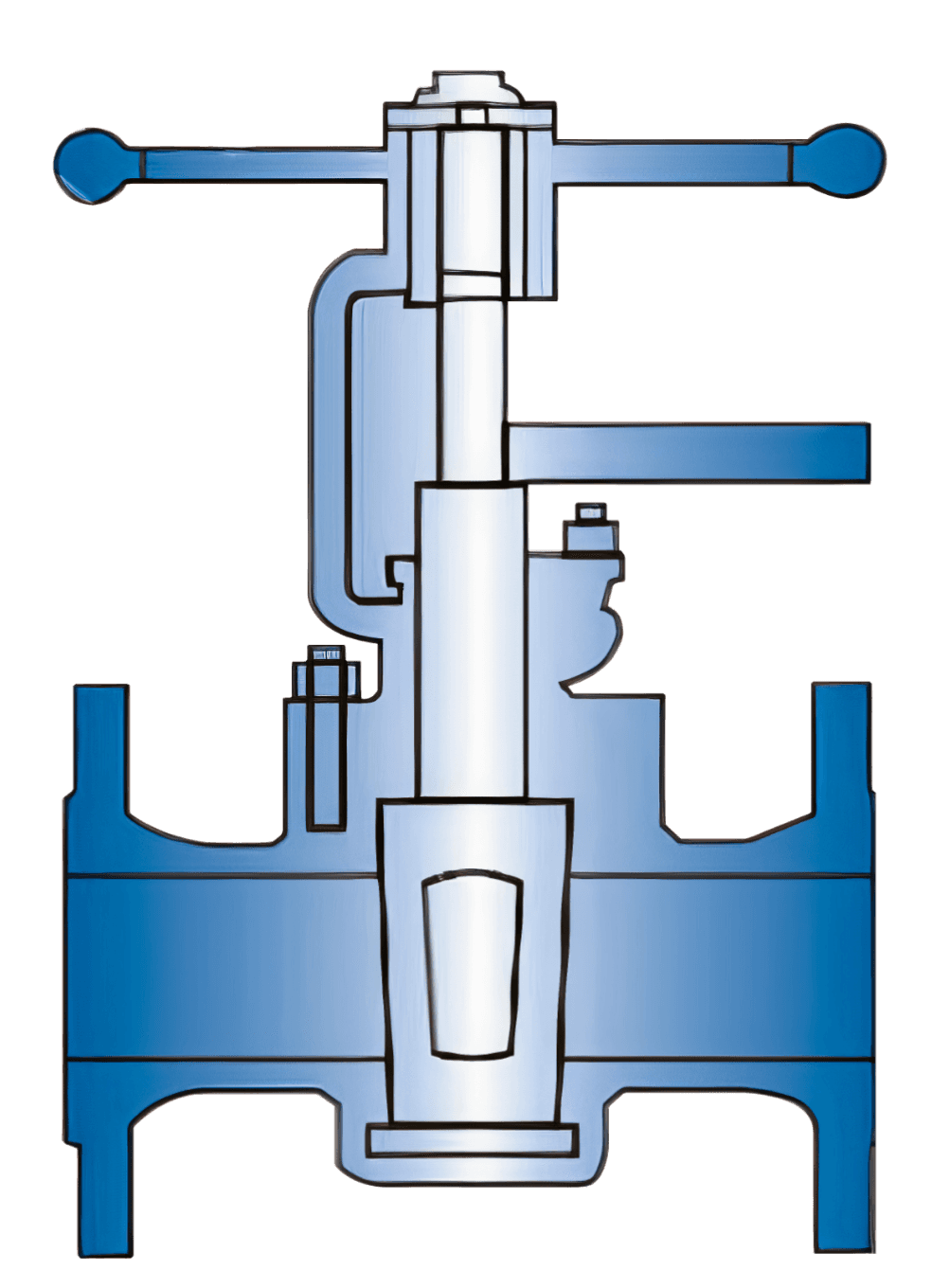

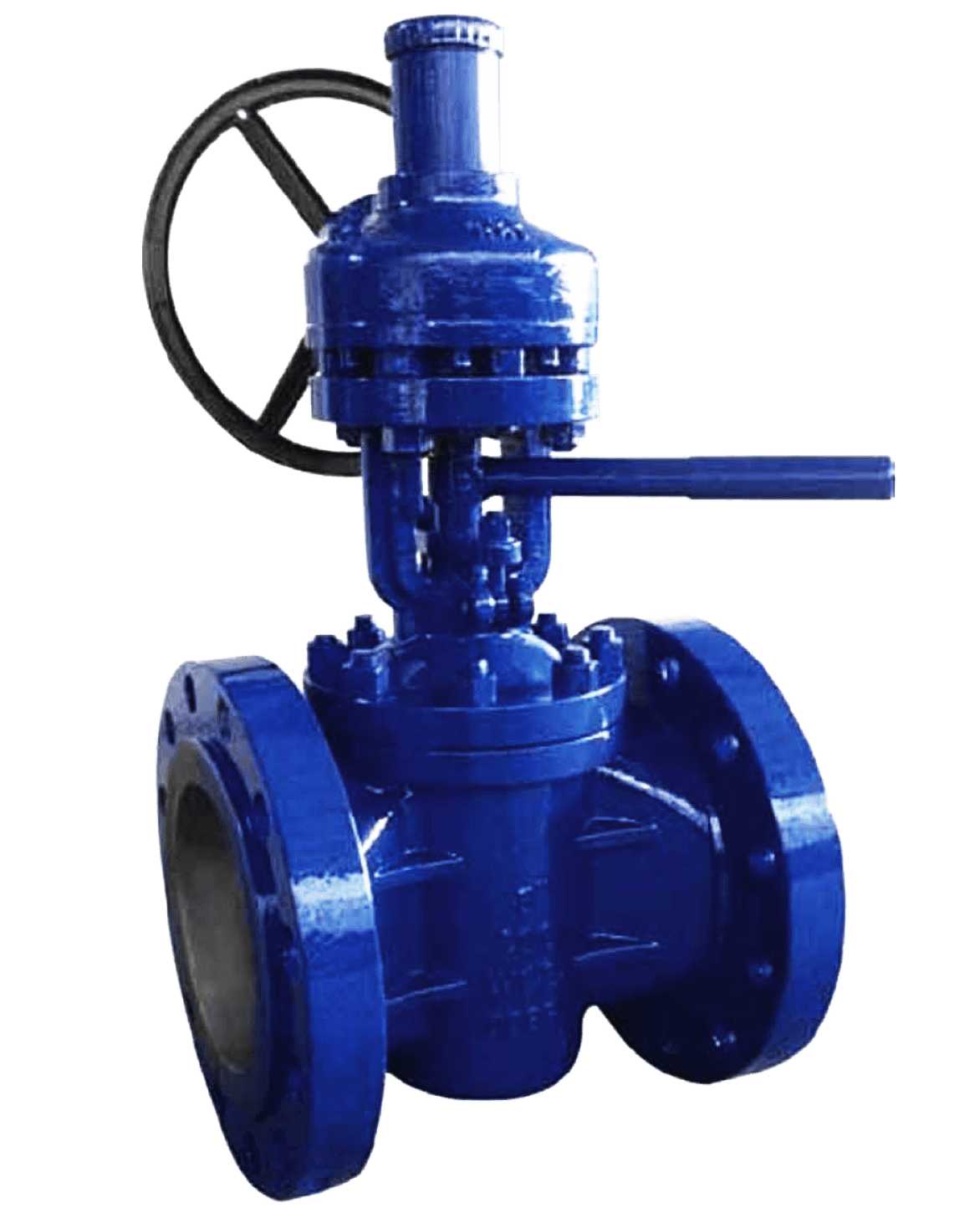

Lifting Plug Valve

Class 150 - 300

Class 150 - 300

Class 600 - 900

Flange-Connection

Class 600 - 900

Flange-Connection

Lifting

Production Range

NPS 1/2" – 14", CLASS 150 – 900

Standard & Specification

API 599, & 6D | Face-to-Face: ASME B16.10

API 599, & 6D
Face-to-Face: ASME B16.10

End Connection

Flange (ASME/ANSI B16.5)
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

| Key Features

Cast Steel Plug Valve, Lift Pattern

Outside Screw and York, Bolted Cover

Flange-Connection Lifting

Production Range

NPS 1/2" – 14" (DN 15 – 350), CLASS 150 – 1500 / up to 550°C.

NPS 1/2" – 14" (DN 15 – 350),
CLASS 150 – 1500 / up to 550°C.

Standard & Specification

API 599, & 6D, ASME B16.5 | Face-to-Face: ASME B16.10
Testing: API 598 & 6D

API 599, & 6D, ASME B16.5
Face-to-Face: ASME B16.10

Testing: API 598 & 6D

Operating Mode

Handwheel, Bevel Gear

Structural Formation

BB-G-OS&Y

| Main Materials

Body, Cover, Gland

ASTM A216-WCB / A217-WC1, WC6, WC9, C5, / A351-CF8, CF8M, CF3, CF3M

Plug, Stem

ASTM A182-F6a / F22 / F304, F316, F321, F304L, F316L

Gasket

Flexible Graphite + Stainless Steel, PTFE

| Key Features

Bi-Directional Flow

Reliable Sealing: Ensures stable performance with excellent sealing capability

Minimal Abrasion: Sealed surface is breakaway,
preventing wear during operation

Minimal Abrasion: Sealed surface is breakaway, preventing wear during operation

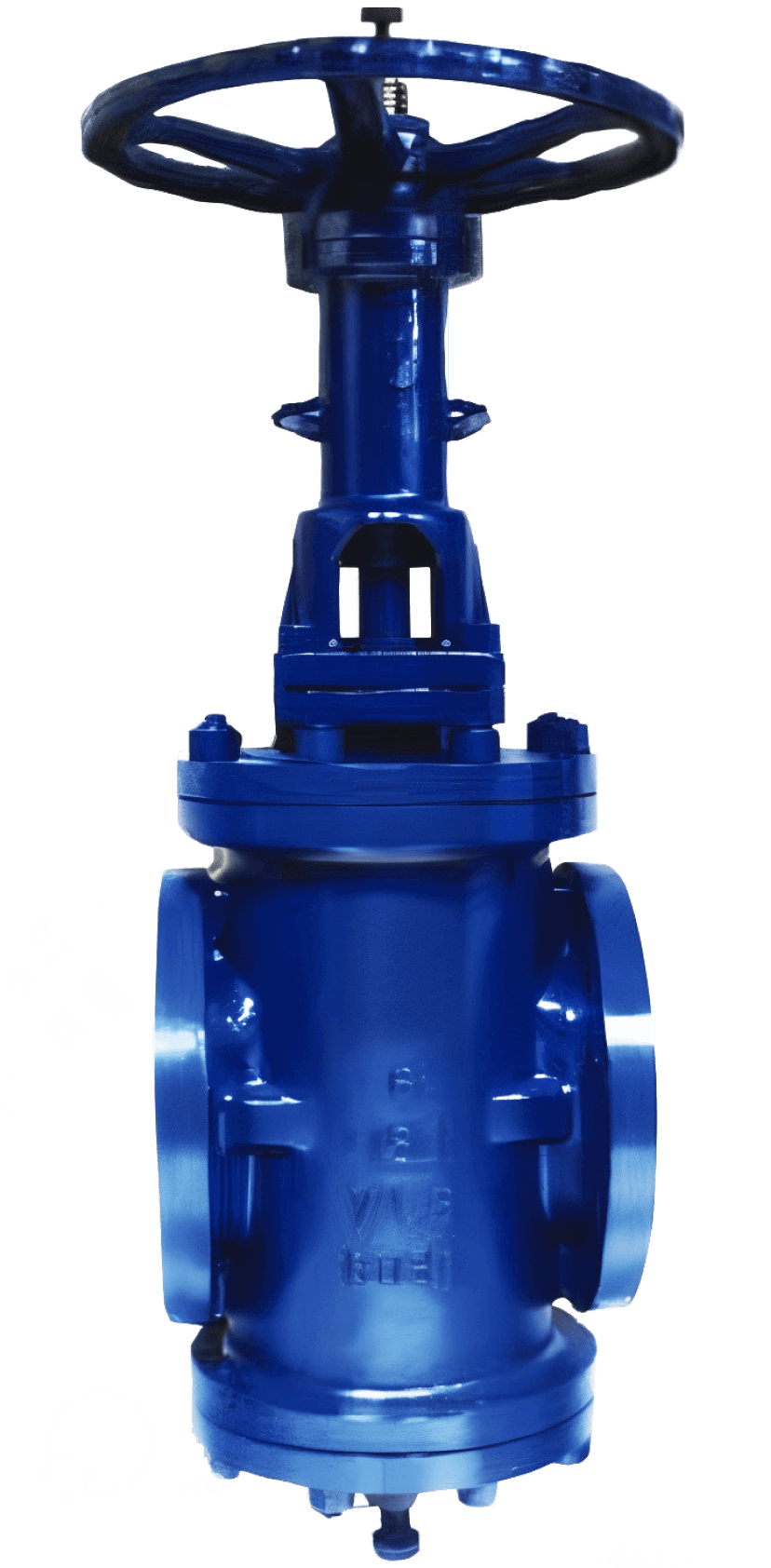

Orbit Plug Valve (General Valve)

Production Range

NPS 1/2" – 14" (DN 15 – 350), CLASS 150 – 900 / -29°C to 100°C

NPS 1/2" – 14" (DN 15 – 350),
CLASS 150 – 900 / -29°C to 100°C

Standard & Specification

API 599, & 6D, ASME B16.5 | Face-to-Face: ASME B16.10
Testing: API 598 & 6D

API 599, & 6D, ASME B16.5
Face-to-Face: ASME B16.10

Testing: API 598 & 6D

End Connection

Flange (ASME/ANSI B16.5)
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5),
Butt Weld (ASME/ANSI B16.25)

Flange (ASME/ANSI B16.5), Butt Weld (ASME/ANSI B16.25)

Operating Mode

Handwheel, Bevel Gear, Electric-Actuated

Structural Formation

BB-BG

| Main Materials

Body, Cover

ASTM A216-WCB / A351-CF8, CF8M, CF3, CF3M

ASTM A216-WCB /
A351-CF8, CF8M, CF3, CF3M

Plug, Disc, Stem

ASTM A182-F6a, F22 / A351-CF8, CF8M, CF3, CF3M

ASTM A182-F6a, F22 /
A351-CF8, CF8M, CF3, CF3M

Gasket

Flexible Graphite + SS, PTFE

| Key Features

Cast Steel Double Block and Bleed Orbit Plug Valve

Bi-Directional Flow

Outside Screw and York, Bolted Cover

Minimal Abrasion: No contact between disc and seat

Reliable Sealing: Sealing rings ensure a tight seal

Zero Leakage: Soft seal prevents leaks

Swallow-Tailed Protection: Improved sealing performance

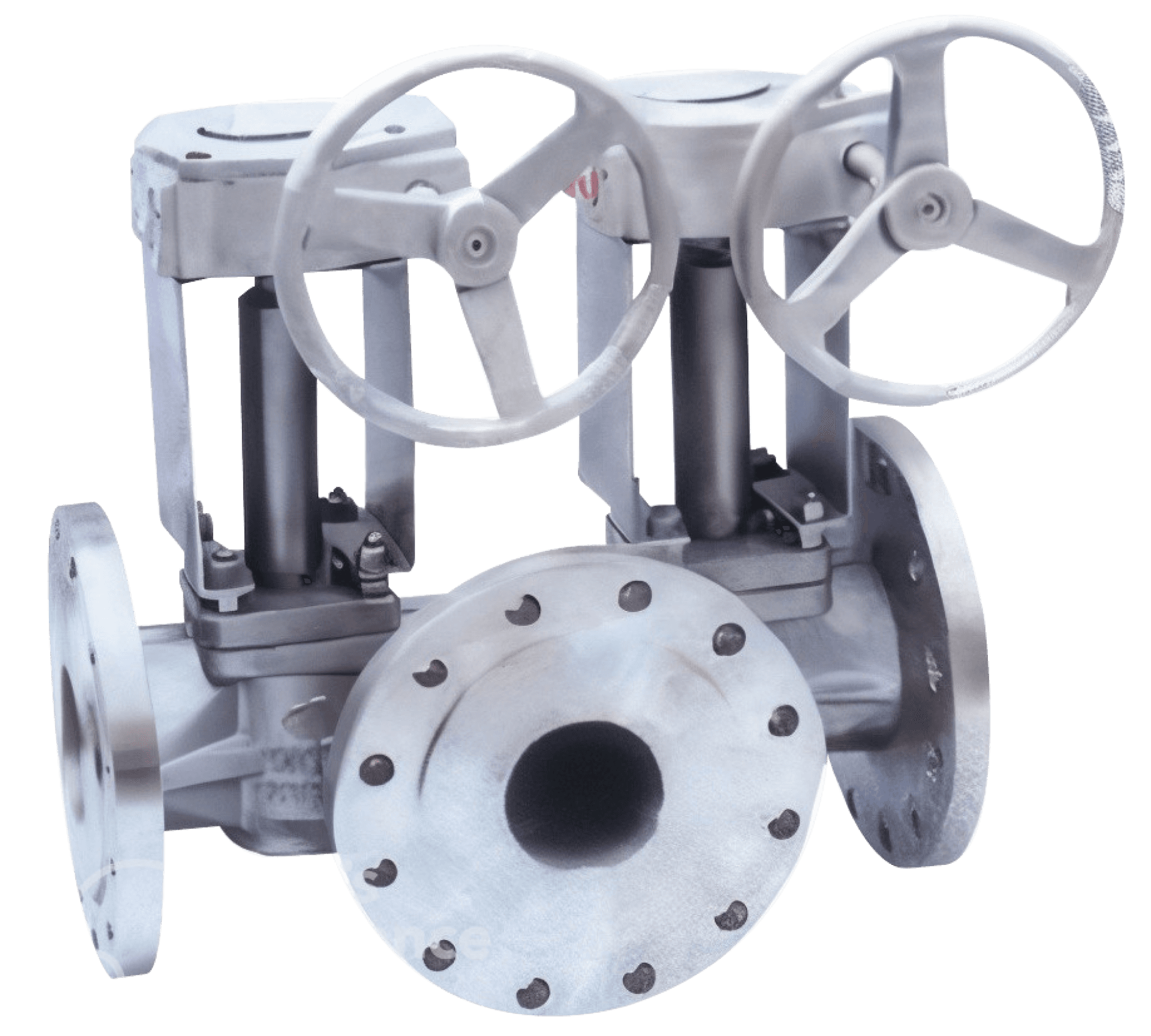

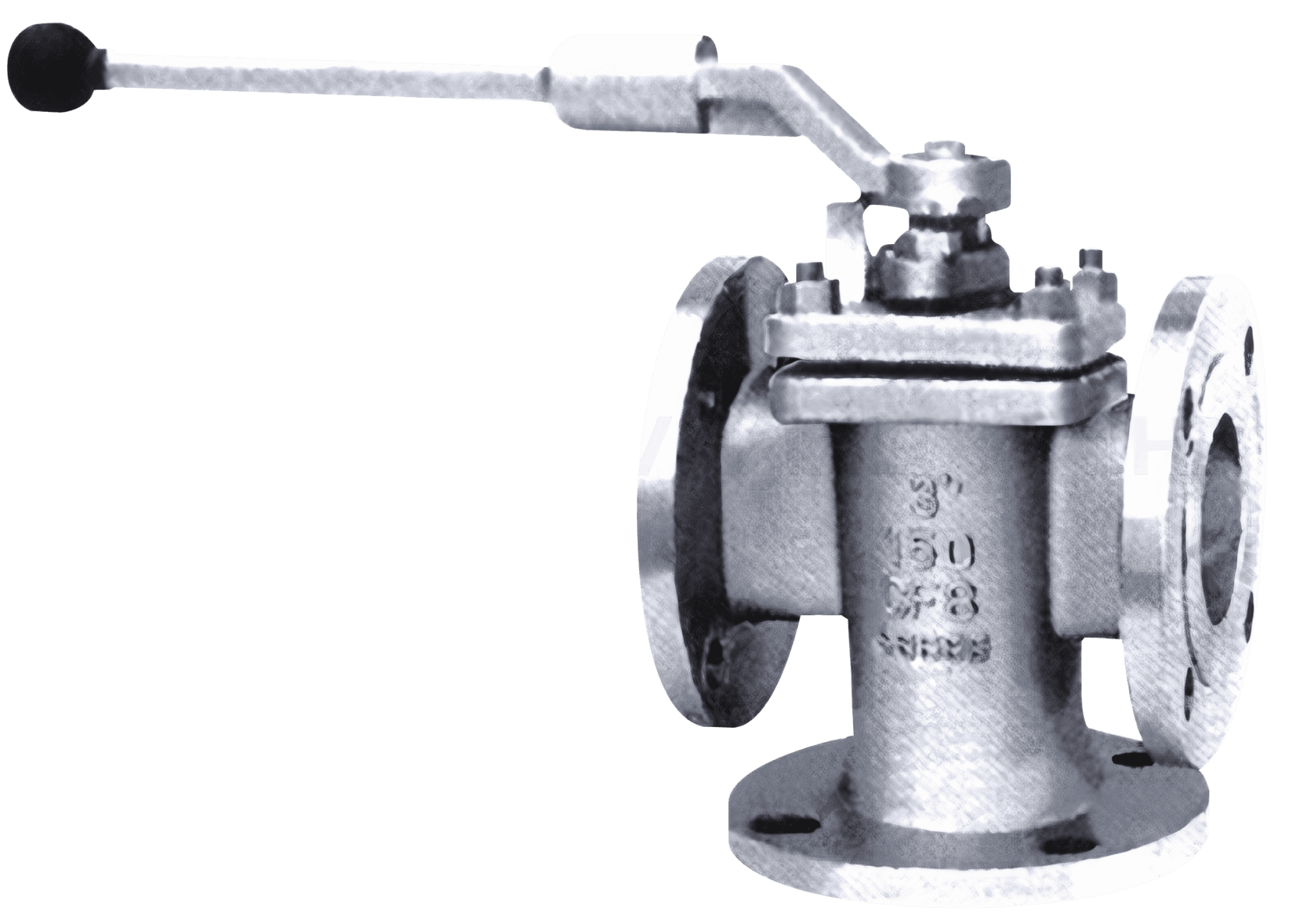

3-Way & 4-Way Plug Valve

3-Way & 4-Way

Production Range

CLASS 150 – 900 (PN1.0 – 16.0) / -29°C to 550°C

CLASS 150 – 900 (PN1.0 – 16.0) /
-29°C to 550°C

Standard & Specification

API 599, & 6D, GB12240, ASME B16.5, JB 79, GB 9113, DIN 2543-2545 | Face-to-Face: ASME B16.10, GB 1221, DIN 3202
Testing: API 598 & 6D, GB 13927, DIN 3230

Operating Mode

Wrench Wheel, Worm Gear, Pneumatic, Electric-Actuated

Structural Formation

BC

Option

L Type Flow: Redirects flow between 2 ports
T Type Flow: Distributes flow between multiple ports
Multiple Flow Forms: Configurable plug structures for customized flow paths

| Key Features

Versatile Flow Control: Supports multiple flow configurations (L type, T type)

Wide Material Compatibility: Available in iron, cast steel, stainless steel

Diverse Sealing Options: Compatible with metal-to-metal, sleeve type, and lubricated sealing

Customizable Flange Sizes

Plug Valve With Single/Double Flush

Production Range

NPS 2" – 10", CLASS 150 – 300

Eccentric Plug Valve

Eccentric

Production Range

NPS 1/2" – 14" (DN15 – DN350), CLASS 150 – 300 (PN1.0 – 16.0) / -29°C to 180°C

NPS 1/2" – 14" (DN15 – DN350),
CLASS 150 – 300 (PN1.0 – 16.0) / -29°C to 180°C

Operating Mode

Manual, Pneumatic, Electric Actuator

Seat Material

90% Nickel Stainless Steel, Resin Seat

| Key Features

Replaceable Sealing Ring – On-site replacement without disassembly

Self-Lubricated Bearing – Smooth operation, minimal wear

Rubber-Coated Plug: prevents peeling, erosion, and corrosion

Linear Flow Control – Suitable as a regulating valve

Flow Measurement Ports – Inlet & outlet pressure tapping available
